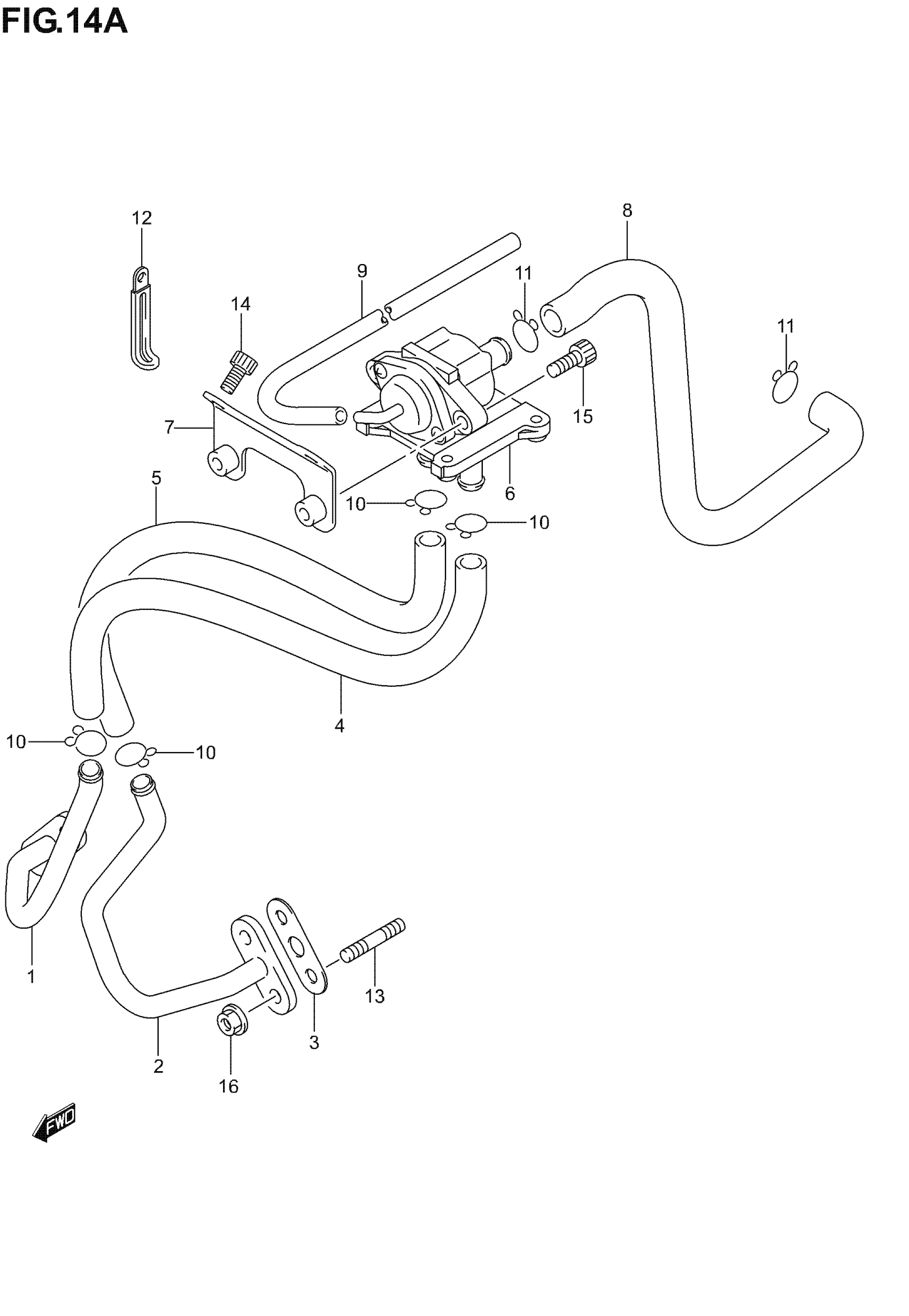

Suzuki GS500F (2006) 2ND AIR (GS500F E33/GS500FK6 E3/GS500FK6 E28) Diagram

PIPE, 2ND AIR RH

18420-01D01

Unavailable

PIPE, 2ND AIR LH

18430-01D01

Unavailable

GASKET 2ND AIR PIPE This part replaces 18441-12D10.

18441-45C01

$7.05

HOSE , 2ND AIR REED VALVE RH

18445-01D20

Unavailable

HOSE , 2ND AIR REED VALVE LH

18446-01D20

Unavailable

VALVE ASSY, 2ND AIR REED

18450-10F03

$194.46

BRACKET, 2ND AIR VALVE

18610-01D20-E0Z

Unavailable

HOSE, 2ND AIR CLEANER

18711-01D20

Unavailable

HOSE | L:600 --> 270 This part replaces 09359-40701-600.

09359-40703-600

$9.60

CLIP

09401-13409

$2.12

CLIP

09401-15101

$2.26

CLAMP

09404-06429

$1.83

BOLT,STUD This part replaces 01421-06163.

01421-0616A

$1.91

BOLT This part replaces D1557-06125.

D1557-0616B

$1.49

BOLT This part replaces D7107-06165.

D7107-0616B

$1.49

NUT This part replaces D8320-10065.

08310-0006A

$1.84
