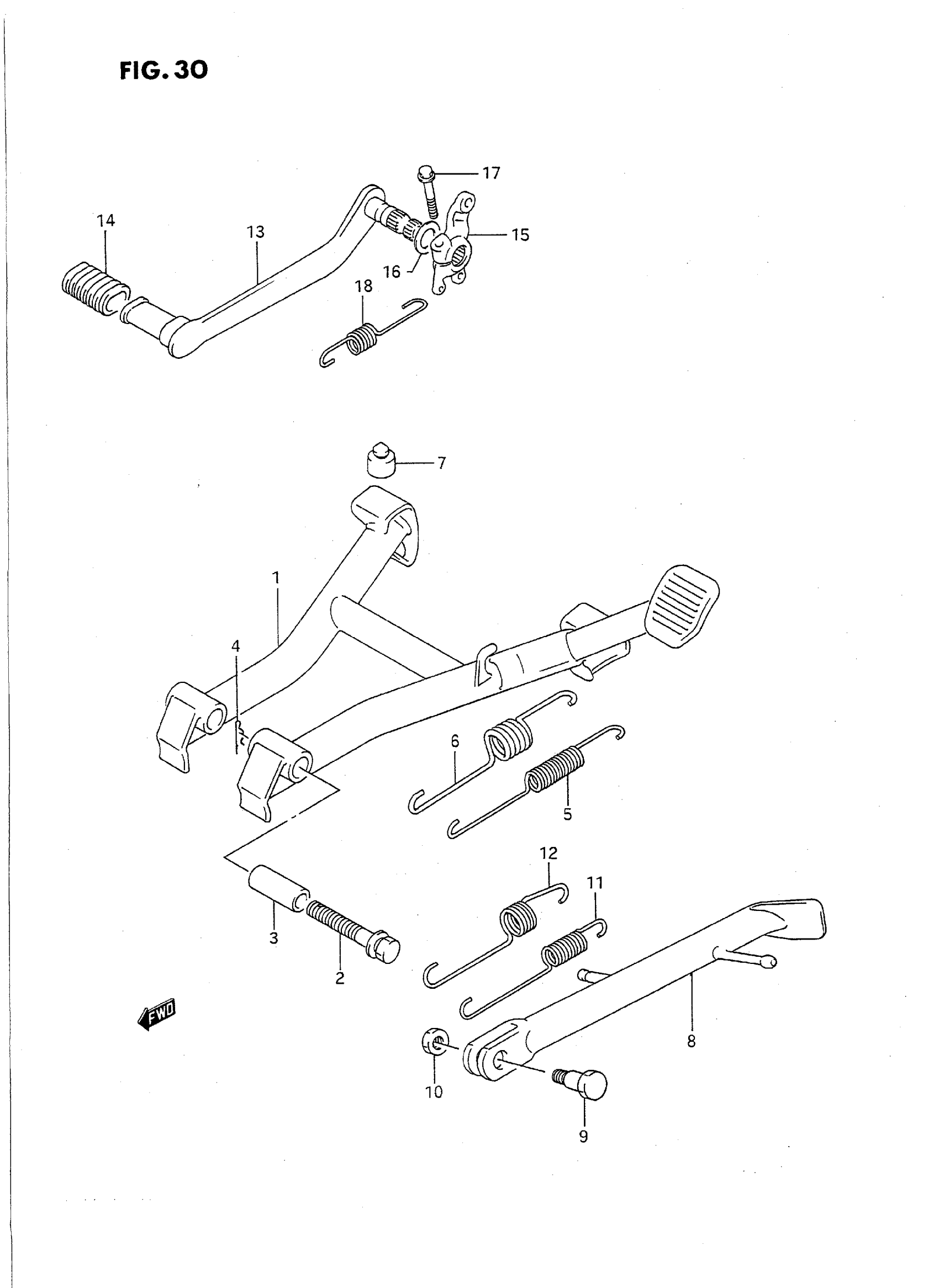

Suzuki GS500ET (1996) STAND - REAR BRAKE Diagram

#

Description
Price

1

STAND, CENTER

42100-01D00

Unavailable

2

BOLT | MODEL K/L/M/N/P This part replaces 09117-10050.

09117-10029

Unavailable

2

ARM, BRAKE ROD | MODEL R/S/T This part replaces 01580-10603.

01580-1060B

$6.05

3

SPACER

09180-10040

$2.56

4

CLIP | MODEL K/L/M/N/P

09385-10005

$1.56

5

SPRING, INNER

09443-14059

$9.73

6

SPRING, OUTER

09443-22013

$9.17

7

CUSHION

09321-10017

$6.38

8

STAND, PROP (BLACK) | MODEL K/L This part replaces 42310-01D00-0FP.

42310-01D00-019

Unavailable

8

STAND, PROP (BLACK) | MODEL M/N/P

42310-01D00-019

Unavailable

8

STAND, PROP (BLACK) | MODEL R/S/T

42310-01D10-019

Unavailable

9

BOLT | MODEL K/L/M This part replaces 09111-10038.

09111-10047

$4.11

9

BOLT | MODEL N/P This part replaces 09111-10019.

09111-10047

$4.11

9

BOLT | MODEL R/S/T

09111-10027

$3.37

10

NUT | MODEL K/L/M

08310-00107

$2.19

10

NUT | MODEL N/P This part replaces 08310-00103.

08310-0010A

$1.84

10

NUT | MODEL R/S/T

09140-10043

$2.68

11

SPRING, INNER | MODEL K/L/M This part replaces 09443-15042.

09443-15046

$8.32

11

SPRING, OUTER | MODEL N/P/R/S/T

09443-15046

$8.32

12

SPRING, OUTER | MODEL K/L/M This part replaces 09443-22014.

09443-22017

$7.74

12

SPRING, OUTER | MODEL N/P/R/S/T

09443-22017

$7.74

13

PEDAL, BRAKE | MODEL K This part replaces 43110-01D00.

43110-01D12

Unavailable

13

PEDAL, BRAKE | MODEL L/M This part replaces 43110-01D10.

43110-01D12

Unavailable

13

PEDAL, BRAKE | MODEL N This part replaces 43110-01D11.

43110-01D12

Unavailable

13

PEDAL, BRAKE | MODEL P/R/S/T

43110-01D12

Unavailable

14

RUBBER

25652-49300

$5.07

15

ARM, BRAKE ROD

43121-01D00

Unavailable

16

WASHER, BRAKE BOSS | MODEL K/L/M/N/P/R This part replaces 43212-04700.

43212-04A00

$2.13

16

WASHER | MODEL S/T

43212-04A00

$2.13

17

BOLT | MODEL K/L/M/N/P/R

01550-06257

$2.30

17

BOLT | MODEL S/T This part replaces 01550-06253.

01550-0625A

$1.97

18

SPRING, RETURN

09443-13028

$7.57
