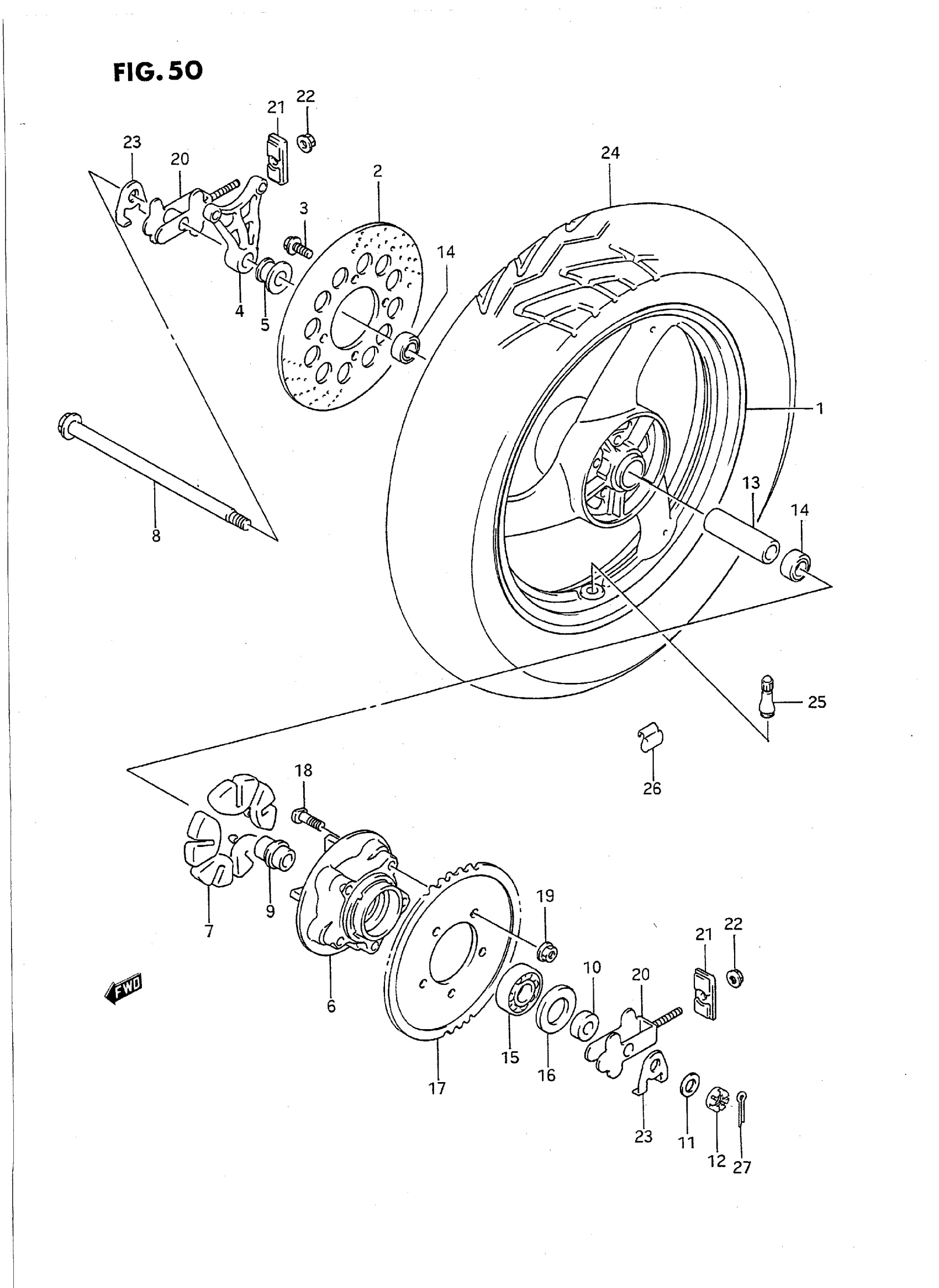

Find the part on the Rear Wheel diagram for your 1996 Suzuki GS500ET, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Suzuki GS500ET Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL, REAR (MT3.50X17) WHITE | MODEL K/L/M/N/P/R/S

64111-34C00-28W

1
Out of stock

1

WHEEL, REAR (MT3.50X17) GRAY | MODEL T

64111-34C00-17U

1
Out of stock

2

DISC, REAR BRAKE (GOLD)

69211-01D00

1
Out of stock

3

BOLT | MODEL K/L/M/N/P This part replaces 07120-08305.

07120-0830A

4
Out of stock

3

BOLT | MODEL R/S/T This part replaces 07120-08303.

07120-0830A

4
Out of stock

4

BRACKET, CALIPER (BLACK) | MODEL K/L

69721-43400

1
Out of stock

4

BRACKET, CALIPER | MODEL M/N/P/R/S/T->69721-43400 This part replaces 69721-01D00.

69721-43400

1
Out of stock

5

SPACER, REAR AXLE,RH

64740-19C00

1
Out of stock

6

DRUM, REAR SPROCKET

64611-01D00

1
Out of stock

7

ABSORBER,RR HUB SHOCK

64651-27A01

5
Out of stock

8

AXLE, REAR

64711-01D00

1
Out of stock

9

RETAINER, DRUM

64733-01D00

1
Out of stock

10

SPACER, REAR AXLE,LH

64751-19C00

1
Out of stock

11

WASHER

09160-17047

1
Out of stock

12

NUT, HUB | MODEL K/L/M/N/P This part replaces 08314-41168.

08314-4016A

1
Out of stock

12

NUT, HUB | MODEL R/S/T This part replaces 08314-40163.

08314-4016A

1
Out of stock

13

SPACER, BEARING

09180-17067

1
Out of stock

14

BEARING

08143-63037

2
Out of stock

15

BEARING

09262-25073

1
Out of stock

16

SEAL,OIL (35X62X8)

09285-35001

1
Out of stock

17

SPROCKET, REAR (NT:39)

64511-01D04

1
Out of stock

18

BOLT

09119-10059

5
Out of stock

19

NUT

08319-31107

5
Out of stock

20

ADJUSTER, CHAIN

61410-01D00

2
Out of stock

21

PLATE, GUIDE

61421-01D00

2
Out of stock

22

NUT

08319-31087

2
Out of stock

23

WASHER, CHAIN ADJUSTER

64712-19C01

2
Out of stock

24

TIRE, T/L REAR (130/70-17 62H | BRIDGESTONE

65110-01D00

1
Out of stock

25

VALVE ASSY, WHEEL RIM | MODEL K/L/M->43130-78030 This part replaces 43130-75150.

43130-78030

1
Out of stock

25

VALVE ASSY (TR413)

43130-78030

1
Out of stock

25

VALVE ASSY (TR412) | MODEL N/P/R/S/T->43130-24A11

43130-24A00

1
Out of stock

25

VALVE ASSY, WHEEL RIM (TR412) This part replaces 43130-24A11.

43130-24A00

1
Out of stock

26

BALANCER (10G)

55411-00A00

1
Out of stock

26

BALANCER, WHEEL NO.2 This part replaces 55412-00A01.

55412-17G00

1
Out of stock

26

BALANCER (30G)

55413-00A01

1
Out of stock

27

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

1
Out of stock
