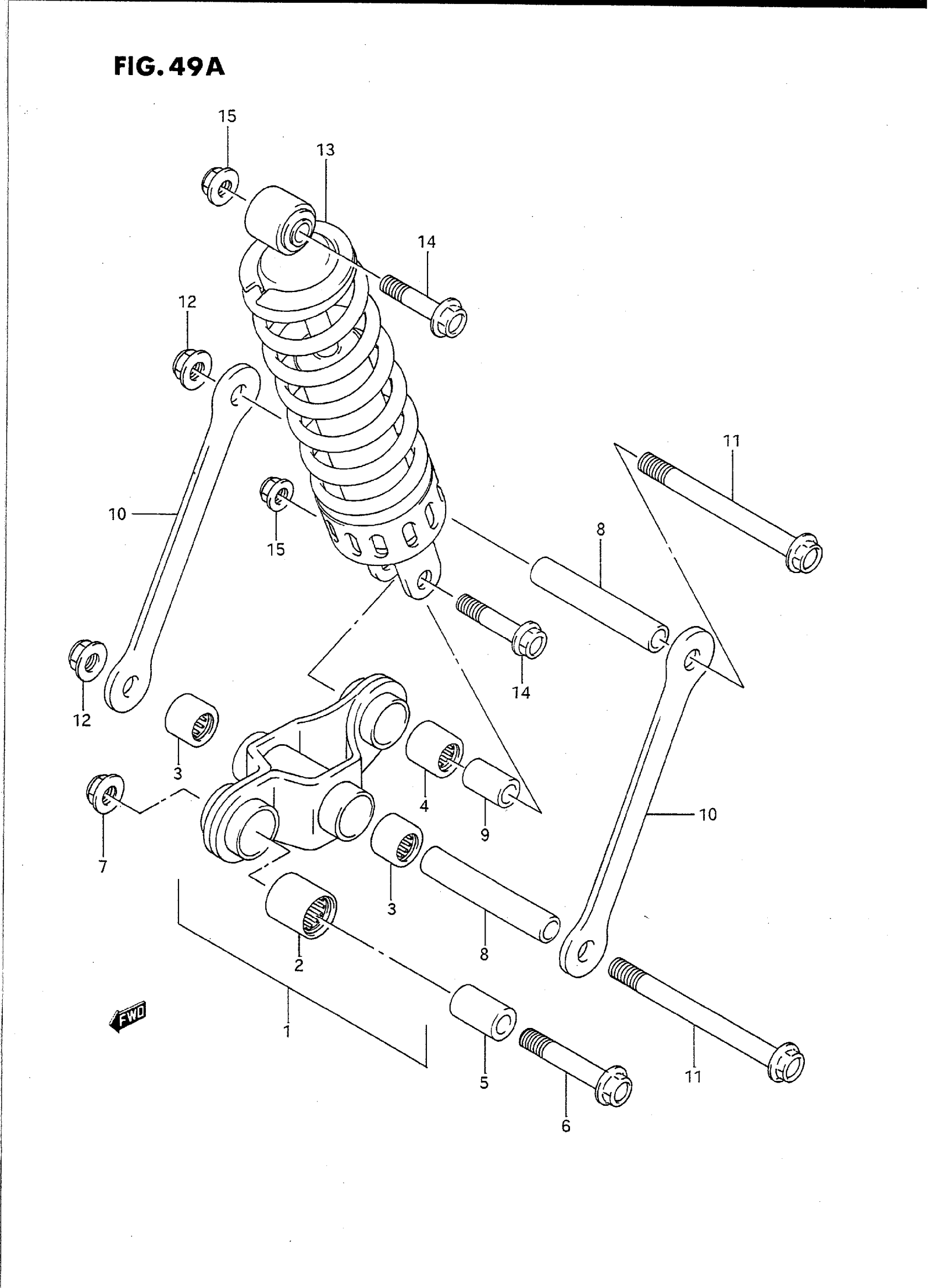

Suzuki GS500ET (1996) CUSHION LEVER (MODEL M/N/P/R/S/T) Diagram

#

Description
Price

1

LEVER SET, REAR CUSHION | MODEL M/N/P/R/S This part replaces 62601-01820.

62601-01821

Unavailable

1

LEVER SET, REAR CUSHION | MODEL T; Includes Item(s) 2 - 4

62601-01821

Unavailable

2

.BEARING This part replaces 09263-20064.

09263-20120

$28.70

3

.BEARING (17X24X25) This part replaces 09263-17037.

09263-17053

$19.55

4

.BEARING (17X24X26) This part replaces 09263-17034.

09263-17057

$19.09

5

SPACER, FRONT | ->62684-05C00

62684-01D00

$21.87

5

SPACER, RR CUSHION LEVER RR This part replaces 62684-05C00.

62684-01D00

$21.87

6

BOLT, FRONT

09103-12042

$9.23

7

NUT This part replaces 08319-31128.

08319-3112A

$3.38

8

SPACER, CENTER (12X17X89) This part replaces 09180-12128.

09180-12125

$28.78

9

SPACER, REAR CUSHION ROD | ->62684-40A10 This part replaces 62684-01D10.

62684-40A10

$11.44

9

SPACER, REAR

62684-40A10

$11.44

10

ROD, REAR CUSHION | MODEL M/N This part replaces 62641-01D01.

62641-01D02

$31.55

10

ROD, REAR CUSHION | MODEL P/R/S/T

62641-01D02

$31.55

11

BOLT, CENTER

09103-12041

$16.02

12

NUT This part replaces 08319-31128.

08319-3112A

$3.38

13

ABSORBER ASSY, REAR SHOCK

62100-01D10

Unavailable

14

BOLT

09103-10213

$6.27

15

NUT

08319-31107

$2.73
