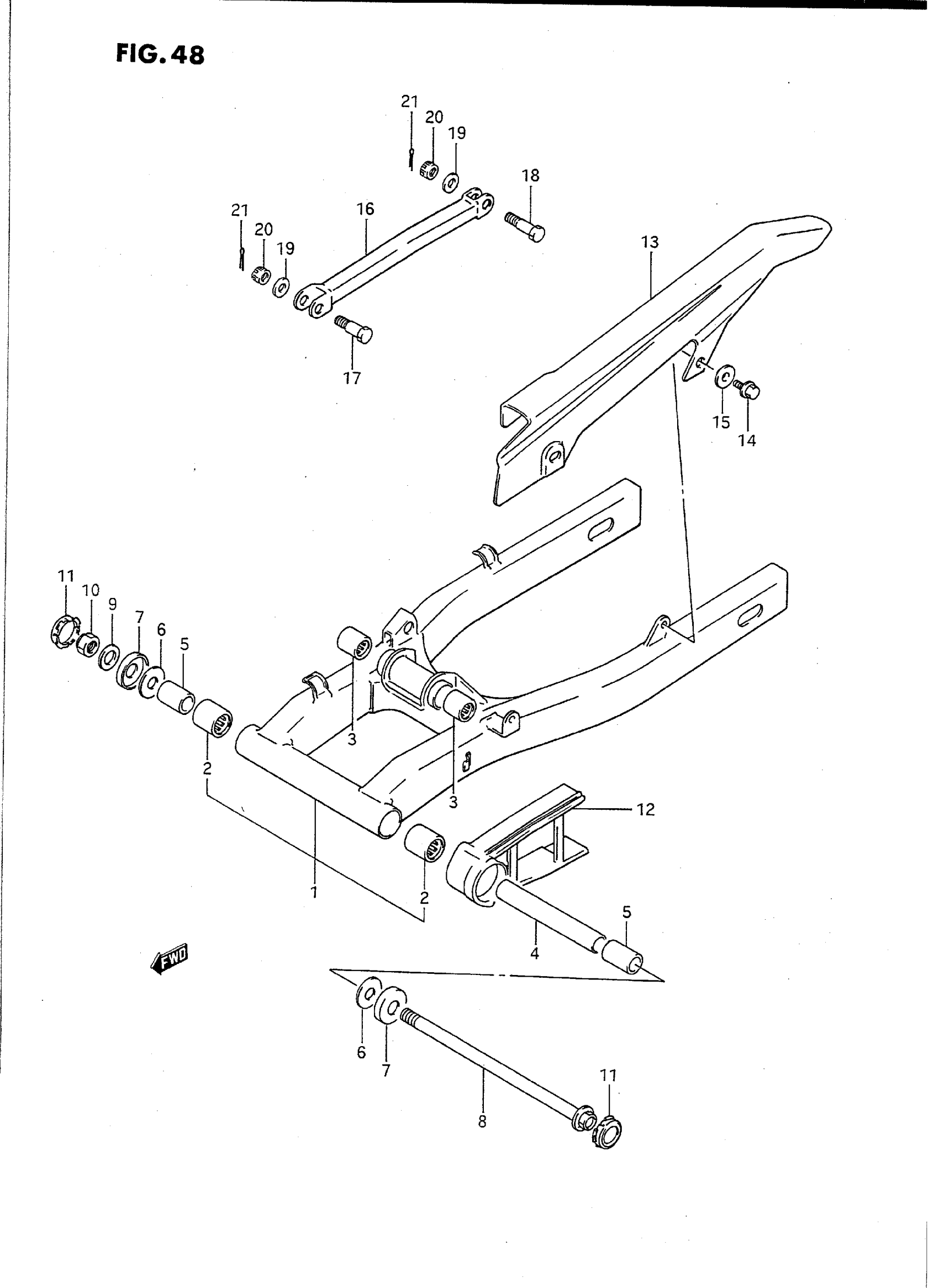

Suzuki GS500ET (1996) REAR SWINGING ARM Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR (SILVER) | MODEL K/L/M/N/P This part replaces 61000-01D01-0FP.

61000-01D10-13L

Unavailable

1

SWINGING ARM ASSY, REAR (SILVER) | MODEL R This part replaces 61000-01D01-13L.

61000-01D10-13L

Unavailable

1

SWINGING ARM ASSY, REAR (SILVER) | MODEL S/T; Includes Item(s) 2 - 3 This part replaces 61000-01D02-13L.

61000-01D10-13L

Unavailable

2

BEARING, PIVOT

09263-22017

$22.58

3

.BEARING (17X24X25) This part replaces 09263-17037.

09263-17053

$21.66

4

SPACER, CENTER

61282-01D00

Unavailable

5

SPACER, PIVOT BEARING

61251-45001

$17.37

6

WASHER

09160-14020

$2.19

7

DUST SEAL, PIVOT SHAFT

61262-45002

$7.97

8

SHAFT, SWINGING ARM PIVOT

61211-30B00

Unavailable

9

WASHER

09160-14009

$2.82

10

NUT

09159-14019

$11.61

11

CAP, SWINGING ARM PIVOT

61222-48B00

$6.80

12

BUFFER,CHAIN TO This part replaces 61273-01D00.

61273-01D01

$32.85

13

CASE, CHAIN This part replaces 61310-01D00.

61310C01D00J000

Unavailable

14

BOLT | MODEL K/L/M/N/P This part replaces 01517-06105.

01550-0610A

$1.97

14

BOLT | MODEL R This part replaces 01550-06103.

01550-0610A

$1.97

14

SCREW | MODEL S/T This part replaces 02142-06123.

02142-0612A

$1.49

15

WASHER

09169-06026

$2.20

16

TORQUE LINK, REAR (BLACK) | MODEL K This part replaces 64310-01D01-0FP.

64310-01D02

Unavailable

16

TORQUE LINK, REAR (BLACK) | MODEL L/M/N/P/R/S/T

64310-01D02

Unavailable

17

BOLT, FRONT

09111-10016

Unavailable

18

BOLT, REAR

09101-10036

$5.28

19

WASHER This part replaces 09160-10069.

09160-10005

$1.87

20

NUT | MODEL K/L/M/N/P This part replaces 08314-41108.

08314-4010B

$2.50

20

NUT | MODEL R/S/T This part replaces 08314-40103.

08314-4010B

$2.50

21

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49
