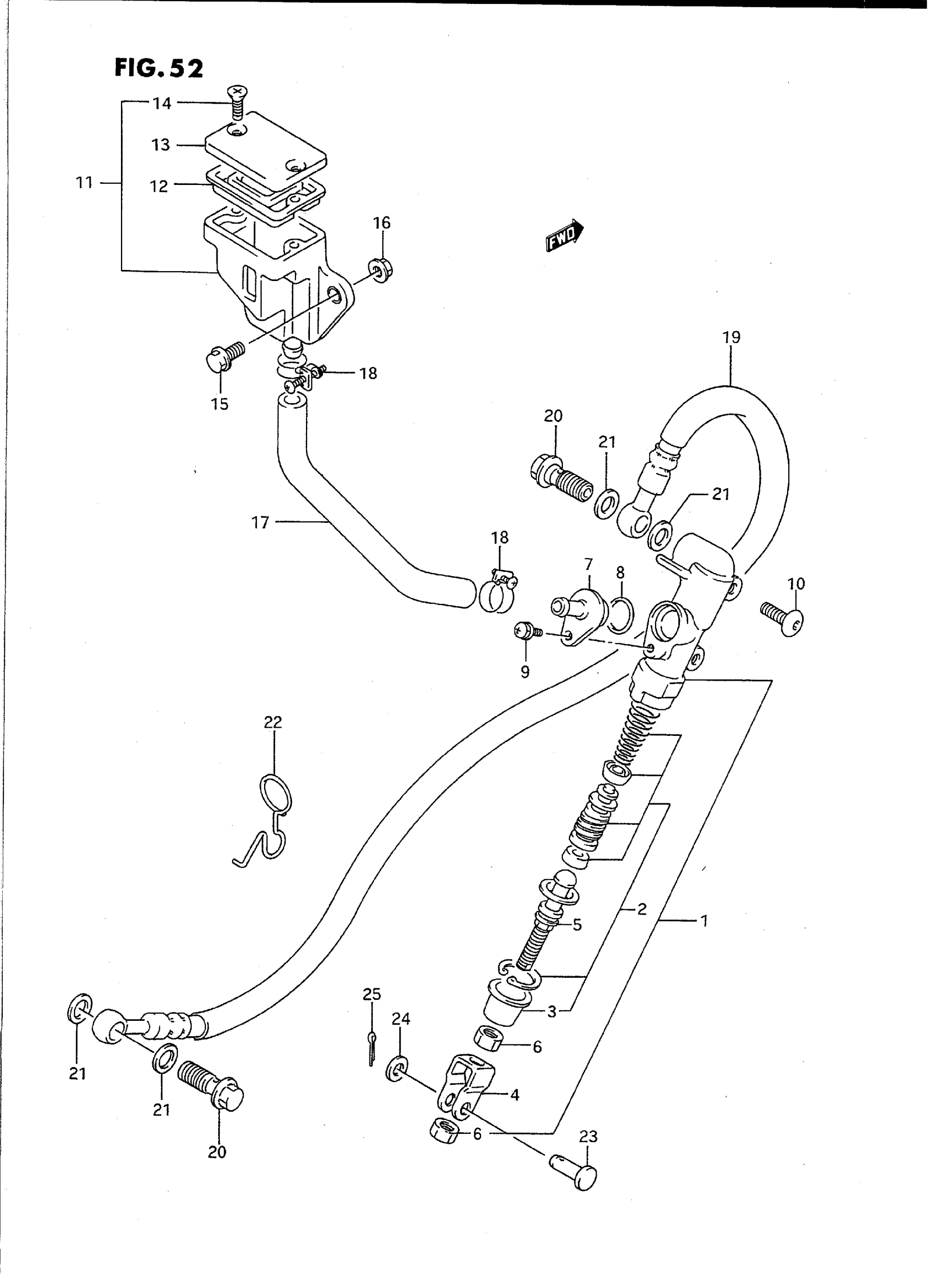

Suzuki GS500ET (1996) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER | Includes Item(s) 2 - 9

69600-01D00

Unavailable

2

.PISTON/CUP SET This part replaces 69600-04820.

69600-04821

$32.27

3

.BOOT

69691-00A00

$5.30

4

YOKE

69692-19A00

$16.87

5

ROD, PUSH

69670-01D00

Unavailable

6

NUT | ->69693-05A00 This part replaces 69693-24A00.

69693-05A00

$1.96

6

NUT

69693-05A00

$1.96

7

CONNECTOR

69672-00A00

Unavailable

8

O RING

69686-34200

$2.93

9

.SCREW This part replaces 02112-74123.

02112-7412A

$2.12

10

SCREW | MODEL K

09139-06054

Unavailable

10

SCREW | MODEL L

09139-06056

$3.23

10

SCREW | MODEL M/N/P/R/S/T

09139-06057

$2.80

11

TANK ASSY,RR RESERVOIR | MODEL K/L This part replaces 69740-01D00.

69740-01D02

$70.49

11

TANK ASSY,RR RESERVOIR | MODEL M/N This part replaces 69740-01D01.

69740-01D02

$70.49

11

TANK ASSY,RR RESERVOIR | MODEL P/R/S/T; Includes Item(s) 12 - 14

69740-01D02

$70.49

12

DIAPHRAGM

59667-04700

$9.78

13

CAP | MODEL K/L This part replaces 69669-24A00.

69669-24A01

$15.10

13

CAP | MODEL M/N

69669-24A01

$15.10

13

CAP | MODEL P/R/S/T

59669-05D00

$16.76

14

SCREW

69689-04A00

$1.78

15

BOLT | MODEL K/L/M/N/P This part replaces 01517-06167.

01550-06167

$2.30

15

BOLT | MODEL R/S/T This part replaces 01550-06163.

01550-0616A

$1.97

16

NUT | MODEL K/L/M/N/P This part replaces 09159-06017.

08319-31067

$2.03

16

NUT | MODEL R/S/T This part replaces 08316-10063.

08316-1006B

$2.50

17

HOSE, RESERVOIR This part replaces 69731-01D01.

69731-01D02

Unavailable

18

CLAMP | MODEL K/L/M/N/P/R/S This part replaces 09400-16302.

09400-16304

$3.10

18

CLAMP | MODEL T This part replaces 09401-13413.

09401-13417

$2.26

19

HOSE, REAR BRAKE | MODEL K This part replaces 69480-01D00.

69480-01D10

Unavailable

19

HOSE, REAR BRAKE | MODEL L/M/N/P/R/S/T

69480-01D10

Unavailable

20

BOLT (10X1.00X24) | MODEL K/L/M/N/P

09360-10017

$3.42

20

UNION | MODEL R/S/T This part replaces 09360-10039.

09360-10061

$6.43

21

WASHER (10X15X1.5)

09161-10009

$1.84

22

GUIDE, BRAKE HOSE

69243-01D00

Unavailable

23

PIN (6X18.2) This part replaces 09200-06037.

09200-06068

$4.11

24

WASHER | MODEL K/L/M/N/P This part replaces 08322-21067.

08322-01067

$2.13

24

.WASHER | MODEL R/S/T This part replaces 08322-01063.

08322-0106B

$2.26

25

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49
