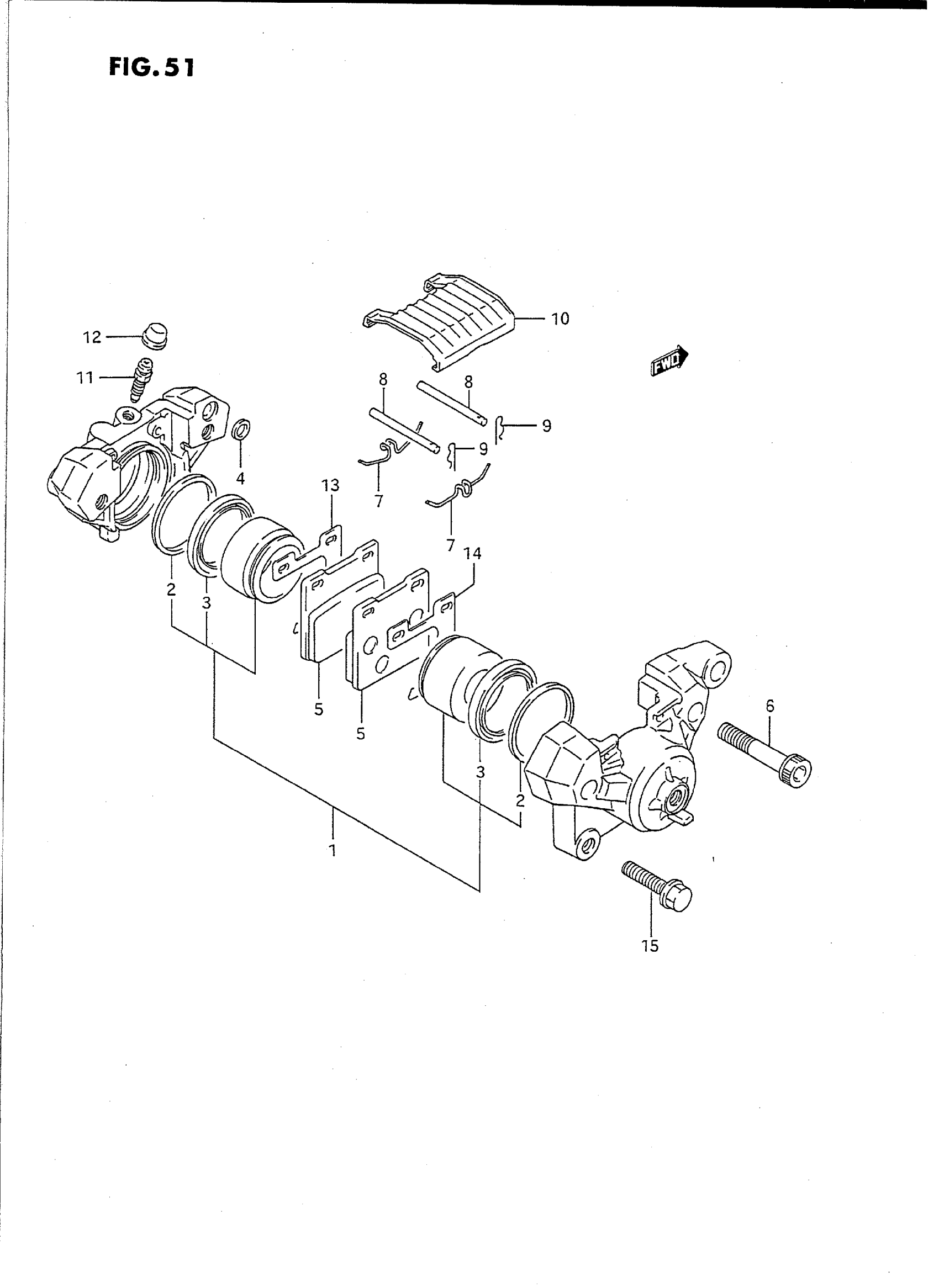

Suzuki GS500ET (1996) REAR CALIPER (MODEL K/L/M/N) Diagram

#

Description
Price

CALIPER ASSY, REAR | MODEL K->69100-01D01 This part replaces 69100-01D00.

69100-01D04-999

$322.90

CALIPER ASSY, REAR | MODEL L/M/N->69100-01D02 This part replaces 69100-01D01.

69100-01D04-999

$322.90

CALIPER ASSY, REAR | MODEL N; Includes Item(s) 1 - 14 This part replaces 69100-01D02.

69100-01D04-999

$322.90

1

PISTON SET | MODEL K/L/M/N This part replaces 69100-27820.

69100-27821

$101.26

1

PISTON SET | MODEL NFOR 69100-01D02

69100-17830

Unavailable

2

SEAL,PISTON This part replaces 59107-18410.

69107-05CF0

$8.30

3

BOOT

59108-16700

$8.85

4

SEAL

69107-34200

$9.80

5

PAD SET | ->69100-20810 This part replaces 69130-20A10.

69100-20810

$54.02

6

BOLT | MODEL K This part replaces 69145-16700.

59145-05C50

$7.51

6

BOLT (HEXAGON FLANGE) | MODEL L/M/N

59145-17C00

Unavailable

7

SPRING

59143-16700

$5.30

8

PIN

69141-45000

$4.86

9

.CLIP, PAD PIN

69142-45000

$3.97

10

COVER

59151-16701

$12.58

11

BLEEDER

59121-18410

$7.99

12

CAP, BLEEDER This part replaces 59122-18410.

55156-66310

$4.73

13

SHIM, INNER

59371-20C00

$18.33

14

SHIM, OUTER

59381-20C00

$18.33

15

BOLT This part replaces 01517-08304.

01550-0830A

$2.80

16

REFER TO FIG.51A(I- 8) FOR

SPECIAL NOTE

Unavailable
