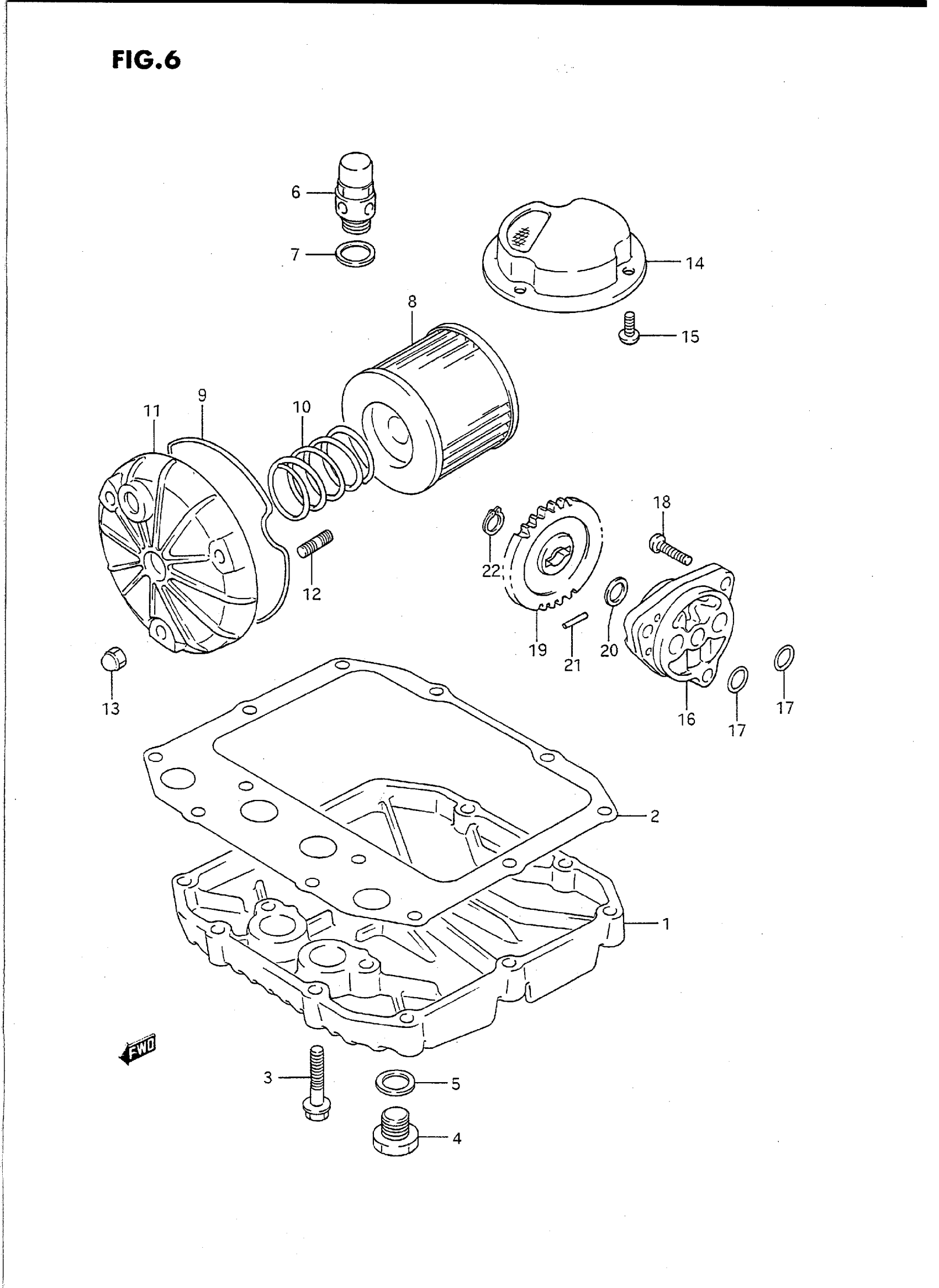

Suzuki GS500ET (1996) OIL FILTER - OIL PUMP Diagram

#

Description
Price

1

PAN, OIL

11511-44100

$102.17

2

GASKET, OIL PAN | MODEL K/L/M/N This part replaces 11489-44102.

11489-44110

$10.28

2

GASKET, OIL PAN | MODEL P/R/S/T

11489-44110

$10.28

3

BOLT | MODEL K/L/M/N/P This part replaces 01517-06307.

01550-06307

$2.69

3

BOLT | MODEL R/S/T This part replaces 01550-06303.

01550-0630A

$2.32

4

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$5.24

5

GASKET

09168-14002

$2.26

6

VALVE ASSY, OIL RELIEF | MODEL K This part replaces 16440-33300.

16440-11D00

$59.07

6

VALVE ASSY, OIL RELIEF | MODEL L/M/N/P/R/S/T This part replaces 16440-05C01.

16440-11D00

$59.07

7

WASHER | MODEL K

08212-14181

Unavailable

8

FILTER, ENGINE OIL

16510-45040

$5.96

9

O RING

16518-45000

$5.70

10

SPRING

09440-32004

$2.92

11

CAP, ENGINE OIL FILTER | MODEL K/L This part replaces 16512-44410.

16512-45D00

$56.93

11

CAP, ENGINE OIL FILTER | MODEL M/N/P This part replaces 16512-44400.

16512-45D00

$56.93

11

CAP, ENGINE OIL FILTER | MODEL R This part replaces 16512-15510.

16512-45D00

$56.93

11

CAP, ENGINE OIL FILTER | MODEL S/T

16512-45D00

$56.93

12

STUD BOLT This part replaces 01421-06208.

01421-0620A

$1.91

13

NUT | MODEL K/L This part replaces 08313-21064.

08313-2006A

$1.97

13

NUT | MODEL M/N/P This part replaces 08313-21067.

08313-20067

$2.42

13

NUT | MODEL R/S/T This part replaces 08313-20063.

08313-2006A

$1.97

14

STRAINER, ENGINE OIL

16520-01D01

Unavailable

15

SCREW This part replaces 02112-06123.

02112-0612A

$1.49

16

PUMP ASSY, ENGINE OIL

16400-44100

$198.45

17

O RING

09280-13004

$2.17

18

SCREW This part replaces 02112-06253.

02112-0625A

$1.80

19

GEAR, DRIVEN (NT:27) | MODEL K/L This part replaces 16331-01D00.

16331-01D10

$68.60

19

GEAR, DRIVEN (NT:27) | MODEL M/N/P/R/S/T

16331-01D10

$68.60

20

WASHER

08221-10185

$2.15

21

PIN

09261-04009

$1.56

22

CIRCLIP This part replaces 08331-31106.

08331-31109

$1.78
