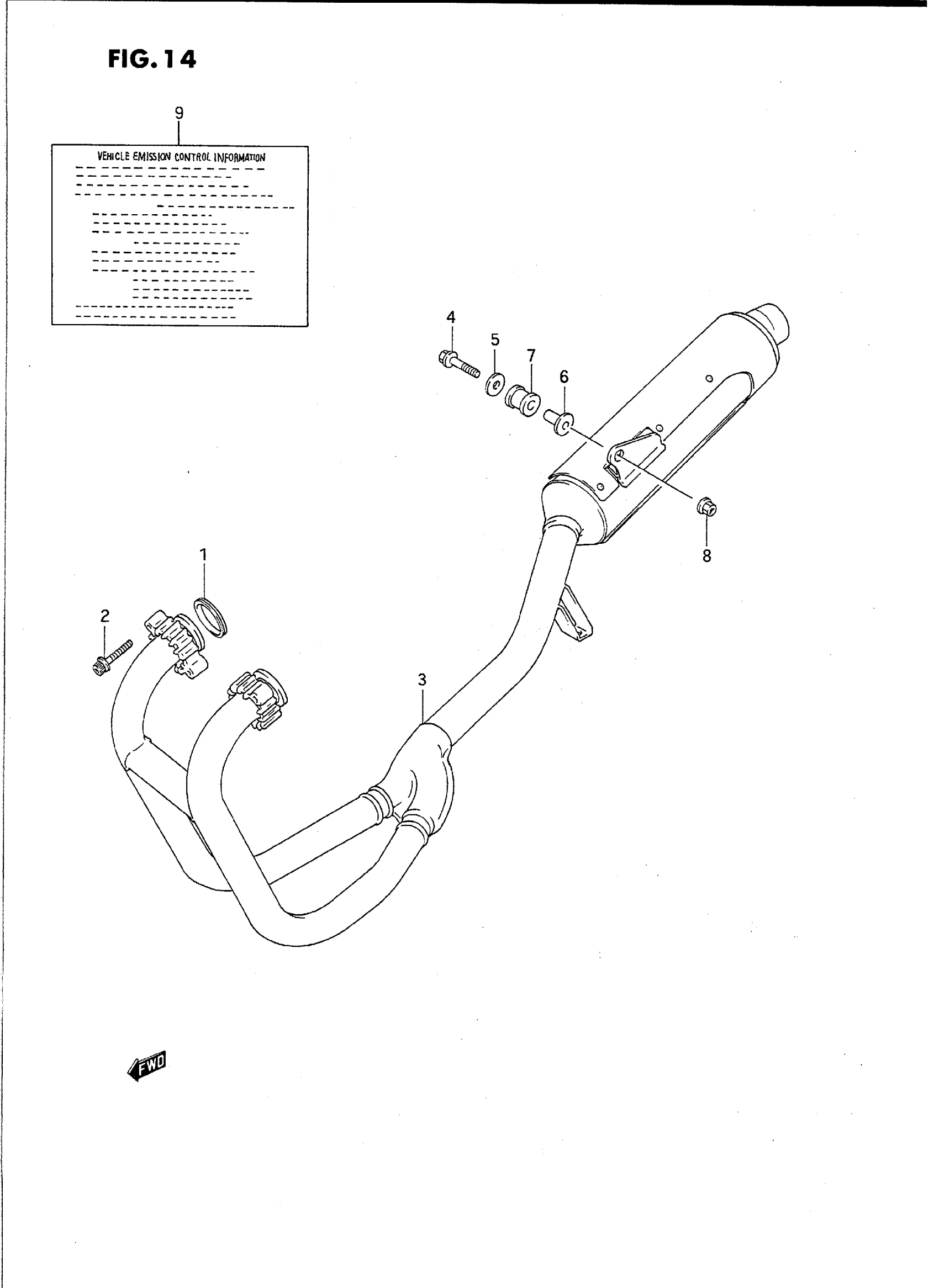

Suzuki GS500ET (1996) MUFFLER Diagram

#

Description
Price

1

GASKET, EXHAUST PIPE (NA)

14181-01D00

$7.11

2

BOLT | MODEL K/L/M/N/P This part replaces 07120-08405.

07120-0840A

$3.42

2

BOLT | MODEL R/S/T This part replaces 07120-08403.

07120-0840A

$3.42

3

MUFFLER ASSY | MODEL K/L/M/N/P This part replaces 14301-01D20-H01.

14301-01DC0-H01

Unavailable

3

MUFFLER ASSY | MODEL R/S/T

14301-01DC0-H01

Unavailable

4

BOLT (8X40)

09103-08256

$5.20

5

WASHER, EXHAUST SUPPORT This part replaces 09160-08002.

09160-08135

$2.35

6

SPACER (8.6X12X20.1)

09180-08152

$5.83

7

CUSHION

09320-12048

$5.11

8

NUT | MODEL K/L/M/N/P This part replaces 08316-16085.

08316-1008B

$2.66

8

NUT | MODEL R/S/T This part replaces 08316-10083.

08316-1008B

$2.66

9

LABEL, INFORMATION,E3

18793-01D20

Unavailable

9

LABEL, INFORMATION,E33 | CALIFORNIA ONLY

18794-01D20

Unavailable
