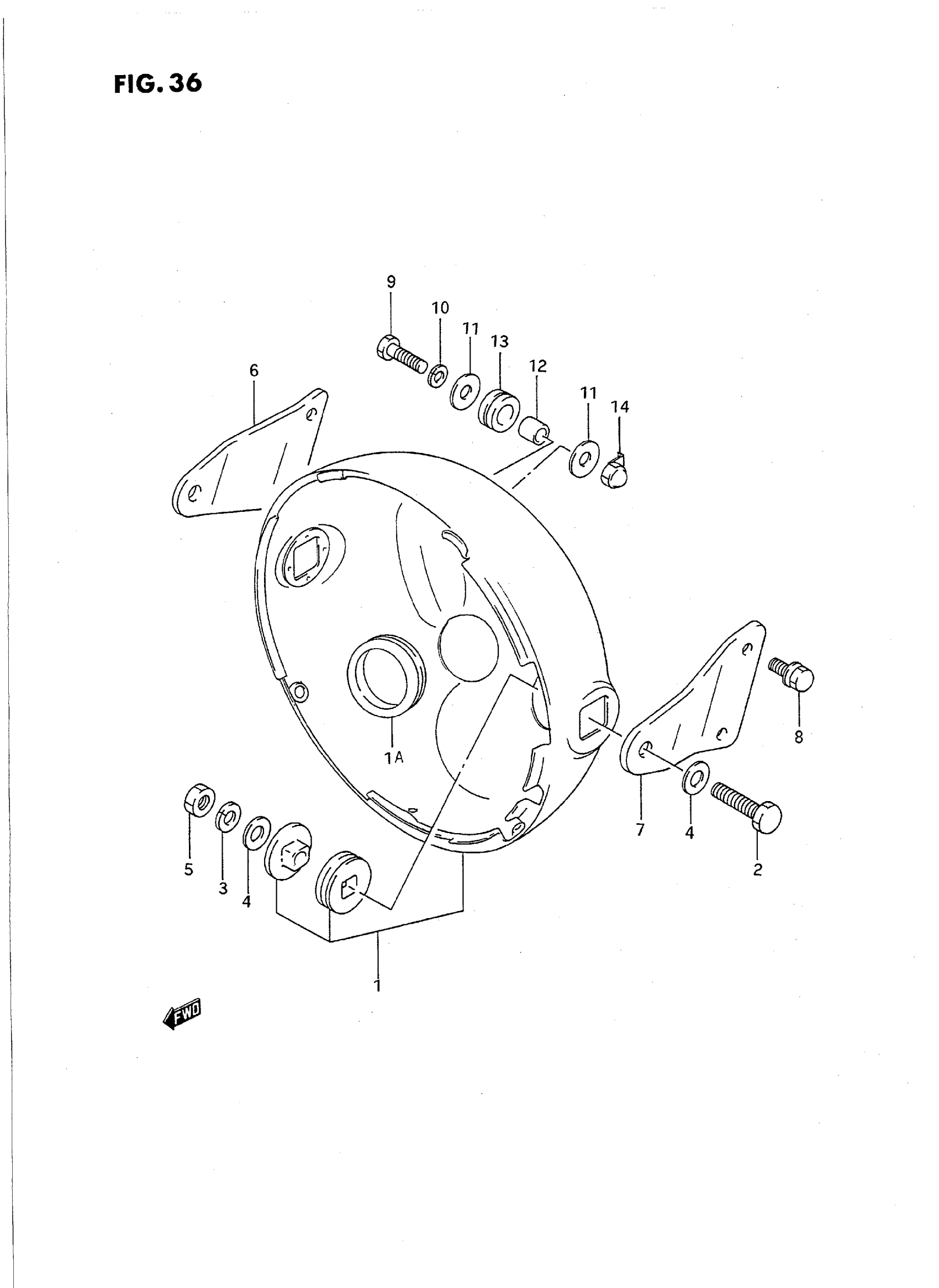

Suzuki GS500ET (1996) HEADLAMP HOUSING (MODEL K/L/M/N/P) Diagram

#

Description
Price

1

HOUSING, HEADLAMP | MODEL K

51810-01D01

Unavailable

1

HOUSING, HEADLAMP | MODEL L

51810-01D11

Unavailable

1

HOUSING, HEADLAMP | MODEL M This part replaces 51810-01D30.

51810-01D31

Unavailable

1

HOUSING, HEADLAMP | MODEL N/P; Includes Item(s) 1A

51810-01D31

Unavailable

1A

GROMMET This part replaces 51817-01D00.

51817-01D01

Unavailable

2

BOLT

01204-08307

$1.99

3

.LOCK WASHER

08321-01087

$2.13

4

WASHER

08322-01087

$2.13

5

NUT

08310-00087

$2.13

6

STAY,HDLAMP HOU | MODEL K/L This part replaces 51851-01D00.

51011-0BE00

$31.50

6

STAY,HDLAMP HOU | MODEL M This part replaces 51851-01D10.

51011-0BE00

$31.50

6

STAY,HDLAMP HOU | MODEL N/P This part replaces 51851-01D11.

51011-0BE00

$31.50

7

STAY,HDLAMP HOU | MODEL K/L This part replaces 51861-01D00.

51011-0BE00

$31.50

7

STAY,HDLAMP HOU | MODEL M This part replaces 51861-01D10.

51011-0BE00

$31.50

7

STAY,HDLAMP HOU | MODEL N/P This part replaces 51861-01D11.

51011-0BE00

$31.50

8

BOLT

01214-06127

Unavailable

9

BOLT, STOPPER | MODEL K/L

01500-06257

$1.97

9

BOLT, STOPPER | MODEL M/N/P

01570-06257

$3.03

10

LOCK WASHER | MODEL K/L

08321-01067

$2.13

11

WASHER (6.5X20X1.6) | MODEL K/L This part replaces 09160-06020.

09160-06066

$1.89

11

WASHER | MODEL M/N/P This part replaces 09160-06006.

09160-06084

$1.78

12

SPACER

09180-07004

$2.30

13

CUSHION

09320-10015

$2.54

14

PLATE, HEADLAMP

51815-06C00

Unavailable

15

REFER TO FIG.36A(G-3) FOR

SPECIAL NOTE

Unavailable
