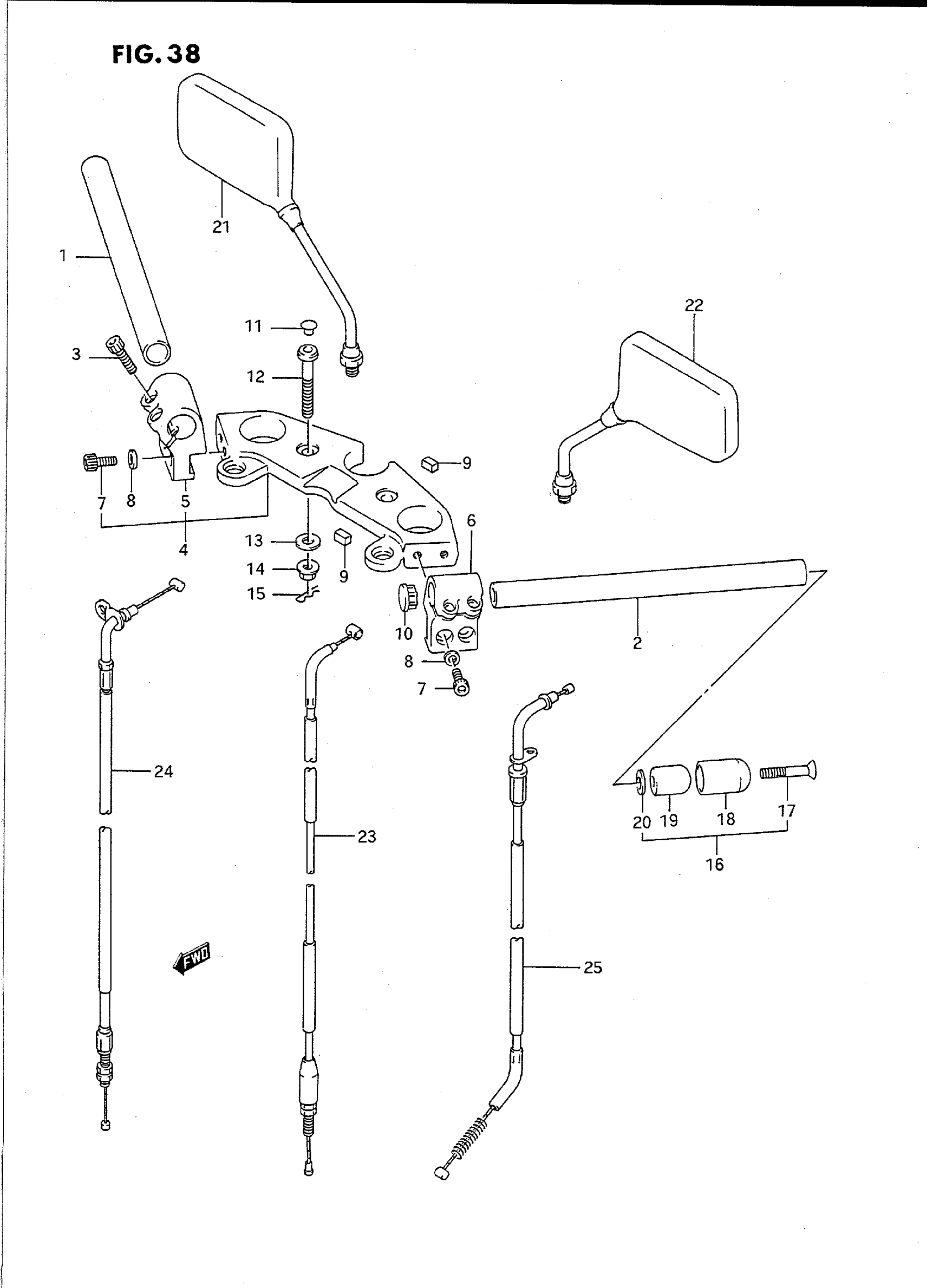

Suzuki GS500ET (1996) HANDLEBAR (MODEL K) Diagram

#

Description
Price

1

HANDLEBAR, RH

56110-01D00

Unavailable

2

HANDLEBAR, LH

56150-01D01

Unavailable

3

BOLT

07130-06257

$3.16

4

HOLDER ASSY, HANDLEBAR | Includes Item(s) 5 - 8

56200-01D00-0FP

Unavailable

5

HOLDER, RH

56211-01D10-0FP

Unavailable

6

HOLDER, LH

56221-01D10-0FP

Unavailable

7

BOLT

07130-08257

$3.43

8

WASHER

09164-08015

$3.21

9

CUSHION, HOLDER

56241-01D00

Unavailable

10

CAP

57215-33400

$5.50

11

CAP

09250-06011

$2.50

12

BOLT

09106-10055

Unavailable

13

WASHER This part replaces 09160-10084.

09160-10094

$3.16

14

NUT This part replaces 08319-31105.

08319-3110A

$2.73

15

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

16

BALANCER SET, HANDLEBAR | Includes Item(s) 17 - 20 This part replaces 56200-20840.

56200-01831

Unavailable

17

SCREW This part replaces 02132-06605.

02122-0660B

$3.04

18

CAP, BALANCER This part replaces 56274-20C00.

56274-49310

Unavailable

19

BALANCER

56271-49310

Unavailable

20

SPACER This part replaces 56275-34400.

56275-34401

$4.02

21

MIRROR ASSY,REA This part replaces 56500-01D01.

56500-01D02

$123.17

22

MIRROR ASSY,REA This part replaces 56600-01D01.

56600-01D02

$125.48

23

CABLE ASSY, CLUTCH

58200-01D00

Unavailable

24

CABLE ASSY, THROTTLE

58300-01D00

Unavailable

25

CABLE,STARTER This part replaces 58410-01D00.

58410-01D01

Unavailable

26

REFER TO FIG.38A(G-6) FOR

SPECIAL NOTE

Unavailable
