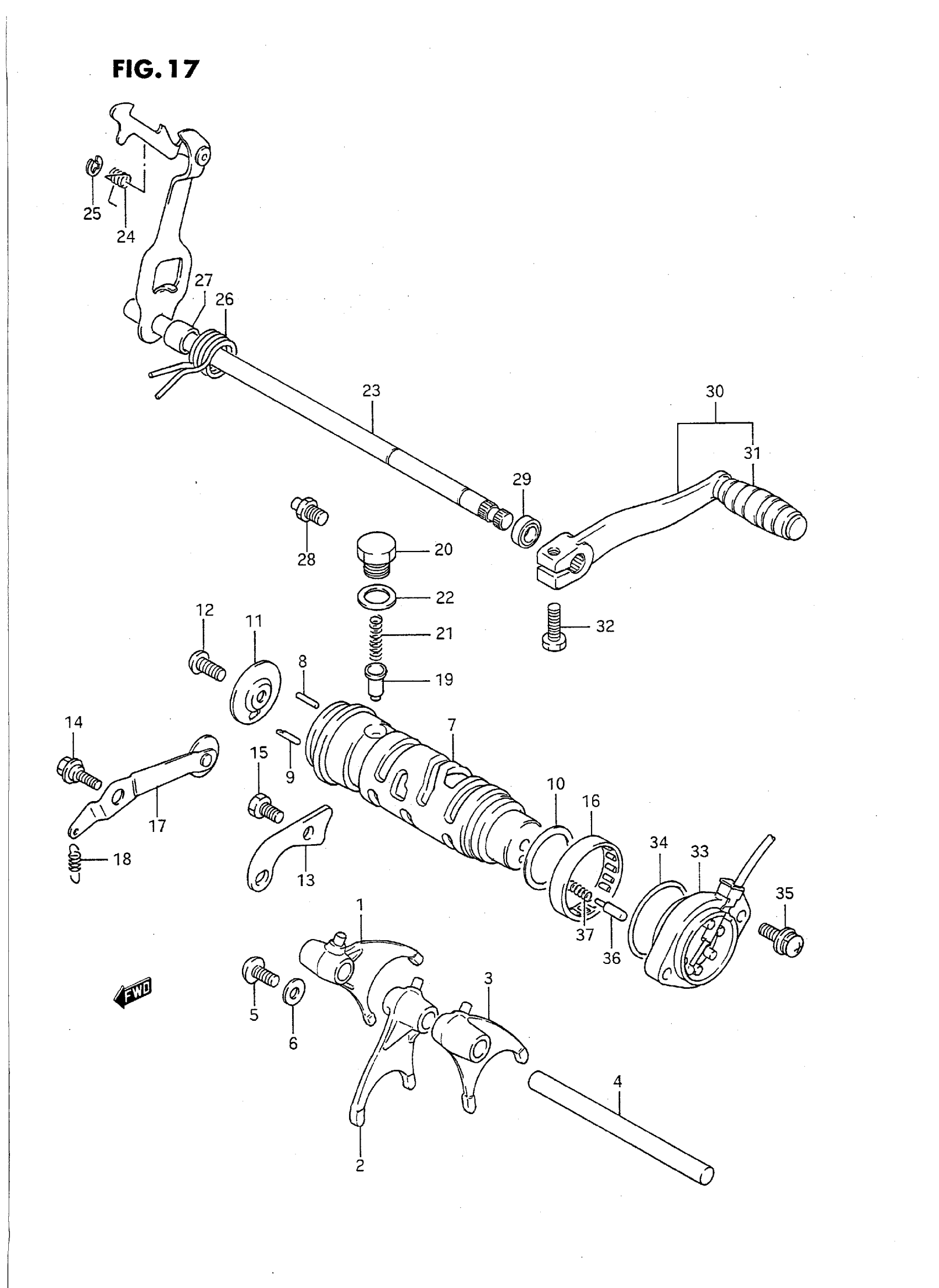

Find the part on the Gear Shifting diagram for your 1996 Suzuki GS500ET, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Suzuki GS500ET Gear Shifting Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FORK, GEAR SHIFTING NO.1

25211-44001

1
Out of stock

2

FORK, GEAR SHIFTING NO.2

25221-44001

1
Out of stock

3

FORK, GEAR SHIFTING NO.3

25231-44000

1
Out of stock

4

SHAFT, GEAR SHIFT FORK NO.1 | MODEL K/L/M/N/P/R This part replaces 25411-31301.

25411-18900

1
Out of stock

4

SHAFT, GEAR SHIFTING FORK | MODEL S/T

25411-18900

1
Out of stock

5

SCREW | MODEL K/L/M/N/P/R

02142-06107

—
Out of stock

5

SCREW | MODEL S/T This part replaces 02142-06083.

02142-0608A

1
Out of stock

6

WASHER

08211-06141

1
Out of stock

7

CAM, GEAR SHIFTING

25311-01D00

1
Out of stock

8

PIN

09261-04001

5
Out of stock

9

PIN

09209-04013

1
Out of stock

10

WASHER (2.6X32.5X0.3)

09181-26001

1
Out of stock

11

HOLDER, DRIVE PIN

25322-44000

1
Out of stock

12

SCREW | MODEL K/L/M/N

02112-06167

1
Out of stock

12

SCREW | MODEL P/R/S/T This part replaces 02112-06163.

02112-0616A

1
Out of stock

13

GUIDE, CAM

25341-33300

1
Out of stock

14

BOLT | MODEL K/L/M/N This part replaces 09111-06019.

09111-06054

1
Out of stock

14

BOLT | MODEL P/R/S/T

09111-06054

1
Out of stock

15

BOLT | MODEL P/R/S/T This part replaces 01500-06163.

01500-0616A

1
Out of stock

16

BEARING (40X47X12)

09263-40001

1
Out of stock

17

STOPPER, CAM NO.1

25350-44000

1
Out of stock

18

SPRING

09443-09007

1
Out of stock

19

STOPPER, GEAR SHIFT CAM NO.2

25351-30010

1
Out of stock

20

HOLDER, SPRING

25354-30000

1
Out of stock

21

SPRING

09440-06020

1
Out of stock

22

GASKET | MODEL K/L/M/N/P

09168-14004

1
Out of stock

22

GASKET | MODEL R/S/T

09168-14002

1
Out of stock

23

SHAFT, GEAR SHIFTING

25510-44100

1
Out of stock

24

SPRING

09448-13008

1
Out of stock

25

E RING This part replaces 08332-11076.

08332-1107A

1
Out of stock

26

SPRING | MODEL K/L/M/N/P/S This part replaces 09444-26012.

09444-26013

1
Out of stock

26

SPRING | MODEL T

09444-26013

1
Out of stock

27

SPACER (12X20X15.3)

09180-12068

1
Out of stock

28

STOPPER, ARM This part replaces 25671-01000.

25671-01011

1
Out of stock

29

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

1
Out of stock

30

LEVER ASSY, GEAR SHIFTING | Includes Item(s) 31

25600-01D02

1
Out of stock

31

RUBBER

25652-20C00

1
Out of stock

32

BOLT

01500-06207

1
Out of stock

33

BODY, SWITCH

37720-47D00

1
Out of stock

34

O RING (D:2.4,ID:26.2) This part replaces 09280-26003.

09280-26005

1
Out of stock

35

2

$2.83

In stock

36

CONTACT

09209-05011

1
Out of stock

37

SPRING

09440-04010

1
Out of stock
