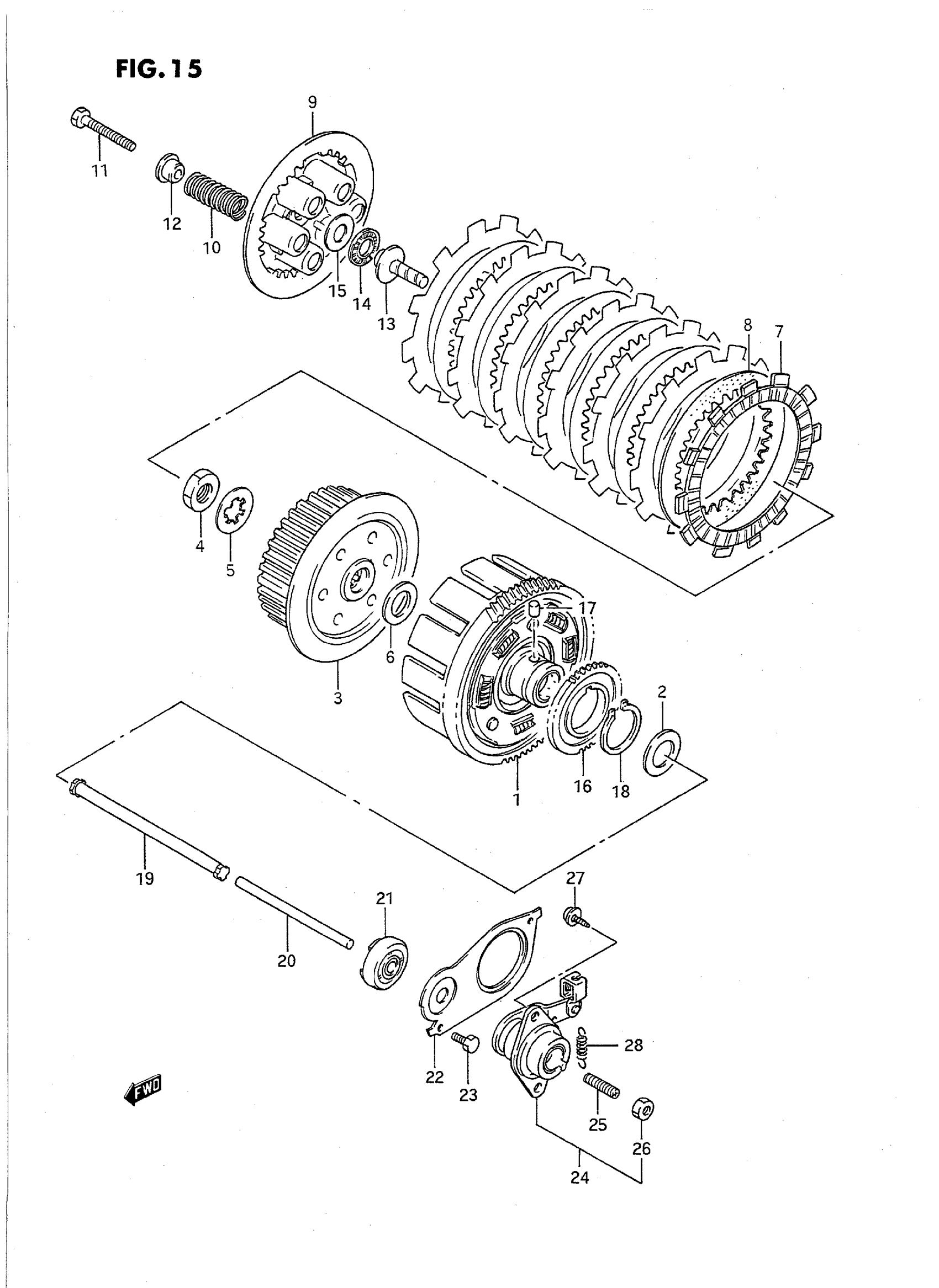

Suzuki GS500ET (1996) CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVEN (NT:76) | MODEL K/L/M/N/P This part replaces 21200-44101.

21200-44102

Unavailable

1

GEAR, PRIMARY DRIVEN (NT:76) | MODEL R/S/T

21200-44102

Unavailable

2

WASHER, RR FINAL DRIVE This part replaces 08211-25381.

09181-25223

$2.90

3

HUB,CLUTCH SLEEVE

21411-44101

$68.94

4

NUT This part replaces 09140-20002.

09140-20001

$3.04

5

WASHER

09167-20009

$2.01

6

WASHER (20X44X3)

09160-20015

$6.38

7

PLATE, DRIVE

21441-37400

$16.59

8

PLATE,CLUTCH DRIVEN (T:1.6) | MODEL K/L/M/N/P This part replaces 21451-45000.

21451-28C31

$10.80

8

PLATE,CLUTCH DRIVEN (T:1.6) | MODEL R/S/T This part replaces 21451-28C30.

21451-28C31

$10.80

9

PLATE, PRESSURE | MODEL K/L/M/N/P This part replaces 21462-16501.

21462-14301

$66.97

9

DISK, PRESSURE | MODEL R/S/T

21462-14301

$66.97

10

SPRING

09440-20019

$8.90

11

BOLT

09100-06145

$2.67

12

SPACER

21414-01D00

$7.77

13

PIECE, PUSH

23121-44100

$29.07

14

BEARING (15X28X2)

09263-15003

$7.49

15

WASHER, CLUTCH PUSH | MODEL K/L/M/N This part replaces 09160-15015.

09160-15045

$3.52

15

WASHER (15X28X1) | MODEL P/R/S/T

09160-15045

$3.52

16

GEAR, OIL PUMP DRIVE (NT:39) | MODEL K/L This part replaces 16321-01D00.

16321-01D10

Unavailable

16

GEAR, OIL PUMP DRIVE (NT:39) | MODEL M/N/P/R/T

16321-01D10

Unavailable

17

PIN

09261-06002

$1.61

18

CLIP

08331-31383

$3.72

19

ROD,PUSH,R

23110-44111

$14.84

20

ROD, PUSH LH

23111-24A01

$12.18

21

OIL SEAL (6X34X7-10)

09285-06011

$7.44

22

HOLDER, OIL SEAL | MODEL K This part replaces 23117-44101.

23117-44102

$8.15

22

HOLDER, OIL SEAL | MODEL L/M/N/P/R/S/T

23117-44102

$8.15

23

BOLT | MODEL K/L/M/N This part replaces 01107-06127.

01500-06127

$1.97

23

BOLT | MODEL P/R/S/T This part replaces 01500-06123.

01500-0612A

$1.80

24

SCREW ASSY, RELEASE | Includes Item(s) 25 - 26

23200-01D00

$106.10

25

SCREW

09134-06010

$2.81

26

.NUT This part replaces 08310-22067.

08310-00067

$1.83

27

SCREW | MODEL K/L/M/N This part replaces 03111-16168.

03141-0616A

$1.85

27

SCREW | MODEL P/R/S/T This part replaces 03141-06163.

03141-0616A

$1.85

28

SPRING

09443-08001

$2.80
