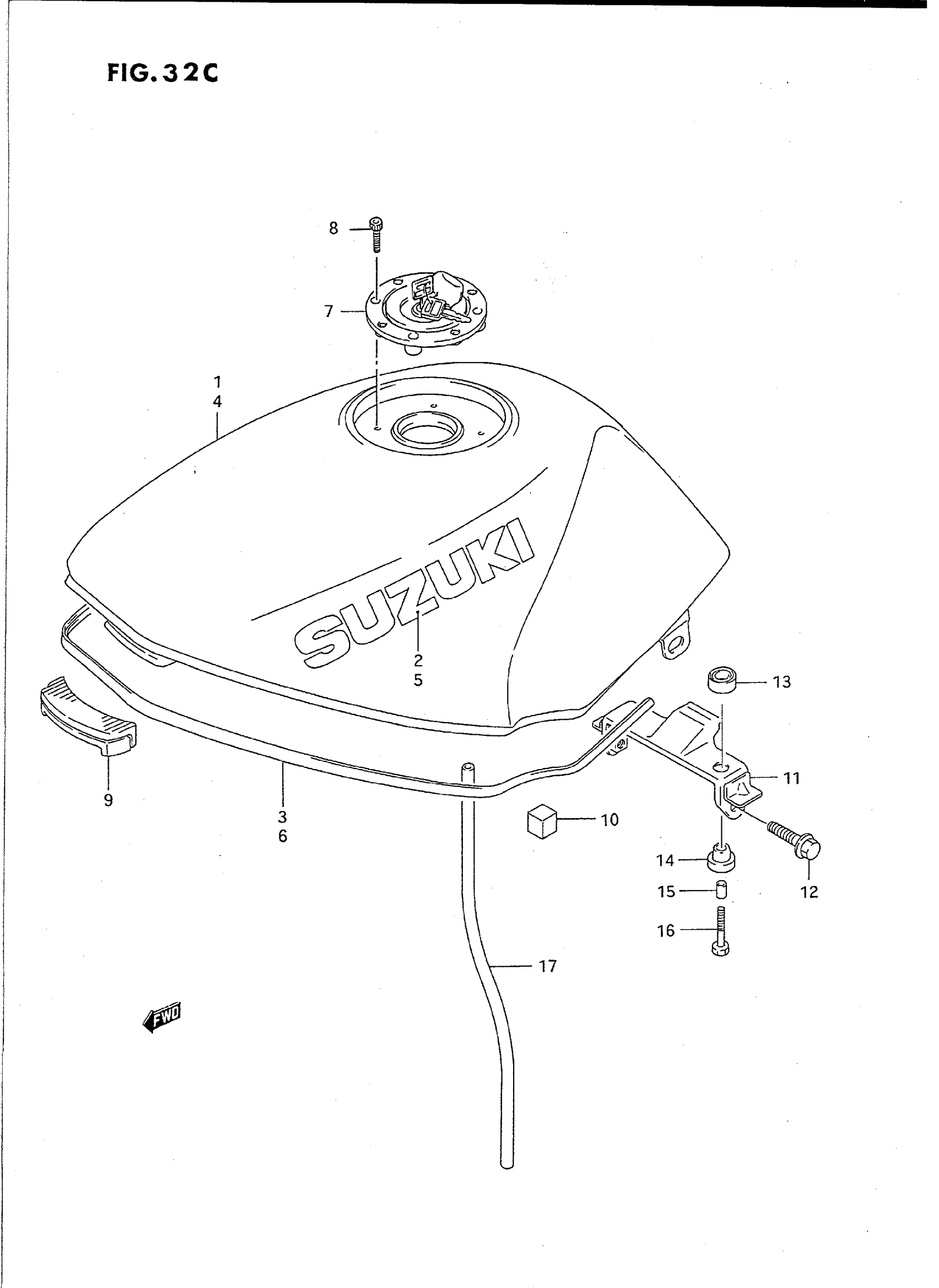

Suzuki GS500ET (1996) FUEL TANK (MODEL R/S/T) Diagram

#

Description
Price

1

TANK ASSY, FUEL (PURPLE) | MODEL R This part replaces 44100-02D70-1TU.

44100-02D71-1TU

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL R This part replaces 44100-02D70-19A.

44100-02D71-19A

Unavailable

1

TANK ASSY, FUEL (PURPLE) | CALIFORNIA ONLY,MODEL R This part replaces 44100-02D90-1TU.

44100-02D91-1TU

Unavailable

1

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY,MODEL R This part replaces 44100-02D90-19A.

44110-01D22-YD8

Unavailable

1

TANK ASSY, FUEL (PURPLE) | MODEL S

44100-02D71-1TU

Unavailable

1

TANK ASSY, FUEL (GREEN) | MODEL S

44100-02D71-1ZV

Unavailable

1

TANK ASSY, FUEL (PURPLE) | CALIFORNIA ONLY,MODEL S

44100-02D91-1TU

Unavailable

1

TANK ASSY, FUEL (GREEN) | CALIFORNIA ONLY,MODEL S; Includes Item(s) 2 - 3

44100-02D91-1ZV

Unavailable

2

EMBLEM | MODEL R FOR 1TU This part replaces 68111-01D20-C1Z.

68111-01D20-D1F

Unavailable

2

EMBLEM | MODEL R FOR 19A

68111-01D20-C1W

Unavailable

2

EMBLEM | MODEL S

68111-01D20-D1F

Unavailable

3

MOLDING This part replaces 68241-01D00.

68241-04X50-00B

$27.30

4

NO DESCRIPTION AVAILABLE | MODEL T This part replaces 44100-02DC0-19A.

44100-02DC1-19A

Unavailable

4

NO DESCRIPTION AVAILABLE | MODEL T This part replaces 44100-02DC0-33J.

44100-02DC1-33J

Unavailable

4

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY,MODEL T This part replaces 44100-02DE0-19A.

44110-01D22-YD8

Unavailable

4

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY,MODEL T; Includes Item(s) 5 - 6 This part replaces 44100-02DE0-33J.

44110-01D22-YD8

Unavailable

5

EMBLEM | MODEL T This part replaces 68111-12C00-13L.

68111-12C30-13L

Unavailable

6

MOLDING, FUEL TANK

68241-04X50-00B

$27.30

7

CAP SET,FUEL TA | MODEL R This part replaces 44201-01831.

44201-01833

Unavailable

7

CAP SET,FUEL TA | MODEL S/T This part replaces 44201-01832.

44201-01833

Unavailable

7

CAP SET, FUEL | CALIFORNIA ONLY,MODEL R This part replaces 44201-01841.

44201-01842

Unavailable

7

CAP SET, FUEL | CALIFORNIA ONLY,MODEL S/T

44201-01842

Unavailable

8

BOLT

09106-05017

$2.83

9

CUSHION, FRONT

44511-34A00

$11.08

10

CUSHION, SIDE

44545-48B10

$7.48

11

BRACKET, REAR This part replaces 44550-01D00.

44550-01D01

$48.38

12

BOLT, BRACKET | MODEL R

01550-08407

$3.42

12

BOLT | MODEL S/T This part replaces 01550-08403.

01550-0840A

$3.05

13

CUSHION, REAR UPPER

09320-14017

$2.35

14

CUSHION, REAR LOWER

09320-10038

$2.61

15

SPACER | MODEL R

09180-06180

Unavailable

15

SPACER | MODEL S/T This part replaces 09180-06072.

09180-06271

$2.35

16

BOLT (6X30) | MODEL R This part replaces 09116-06078.

09116-06172

$2.50

16

BOLT | MODEL S/T

09116-06172

$2.50

17

HOSE,WATER DRAI This part replaces 44423-01D00.

44423-01D01

$15.80
