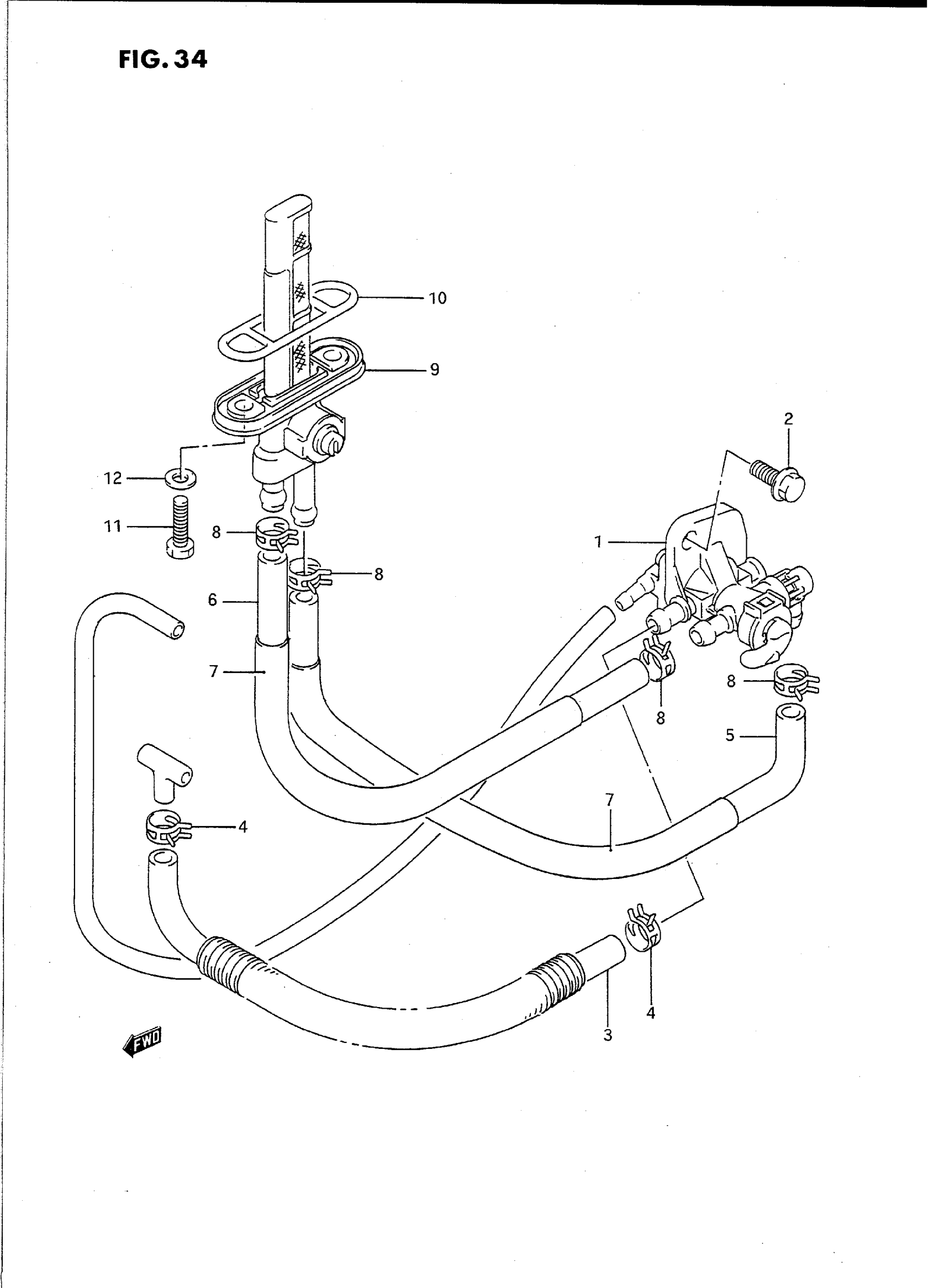

Suzuki GS500ET (1996) FUEL COCK Diagram

#

Description
Price

1

COCK ASSY,FUEL | MODEL K This part replaces 44300-01D00.

44300-01D22

$105.25

1

COCK ASSY,FUEL | MODEL L/M/N/P/R/S This part replaces 44300-01D20.

44300-01D22

$105.25

1

COCK ASSY,FUEL | MODEL T This part replaces 44300-01D21.

44300-01D22

$105.25

2

BOLT | MODEL K/L/M/N/P/R

01550-06127

$2.38

2

BOLT, CLAMP | MODEL S/T This part replaces 01550-06123.

01550-0612A

$2.01

3

HOSE,7X11X600 This part replaces 09354-70113-600.

44421-32ER0

$11.72

4

CLIP | MODEL K/L/M/N/P/R This part replaces 09401-11410.

09401-11413

$2.31

4

CLIP | MODEL S/T

09401-11413

$2.31

5

HOSE,7X11X600 This part replaces 09354-70113-600.

44421-32ER0

$11.72

6

HOSE,FUEL RESER This part replaces 44441-01D00.

44441-01D01

$12.45

7

PROTECTORM,FUEL | MODEL K This part replaces 44461-01D00.

44461-24D00

$11.83

7

PROTECTORM,FUEL | MODEL L/M/N/P/R/S/T This part replaces 44461-01D01.

44461-24D00

$11.83

8

CLIP | MODEL K/L/M/N/P/R This part replaces 09401-11410.

09401-11413

$2.31

8

CLIP | MODEL S/T

09401-11413

$2.31

9

COCK ASSY,FUEL | Includes Item(s) 10 This part replaces 44300-01D10.

44300-01D11

$99.76

10

FUEL COCK O RIN This part replaces 44348-28070.

44348-28071

$4.84

11

BOLT

09128-06057

$1.70

12

GASKET

09168-06026

$2.88
