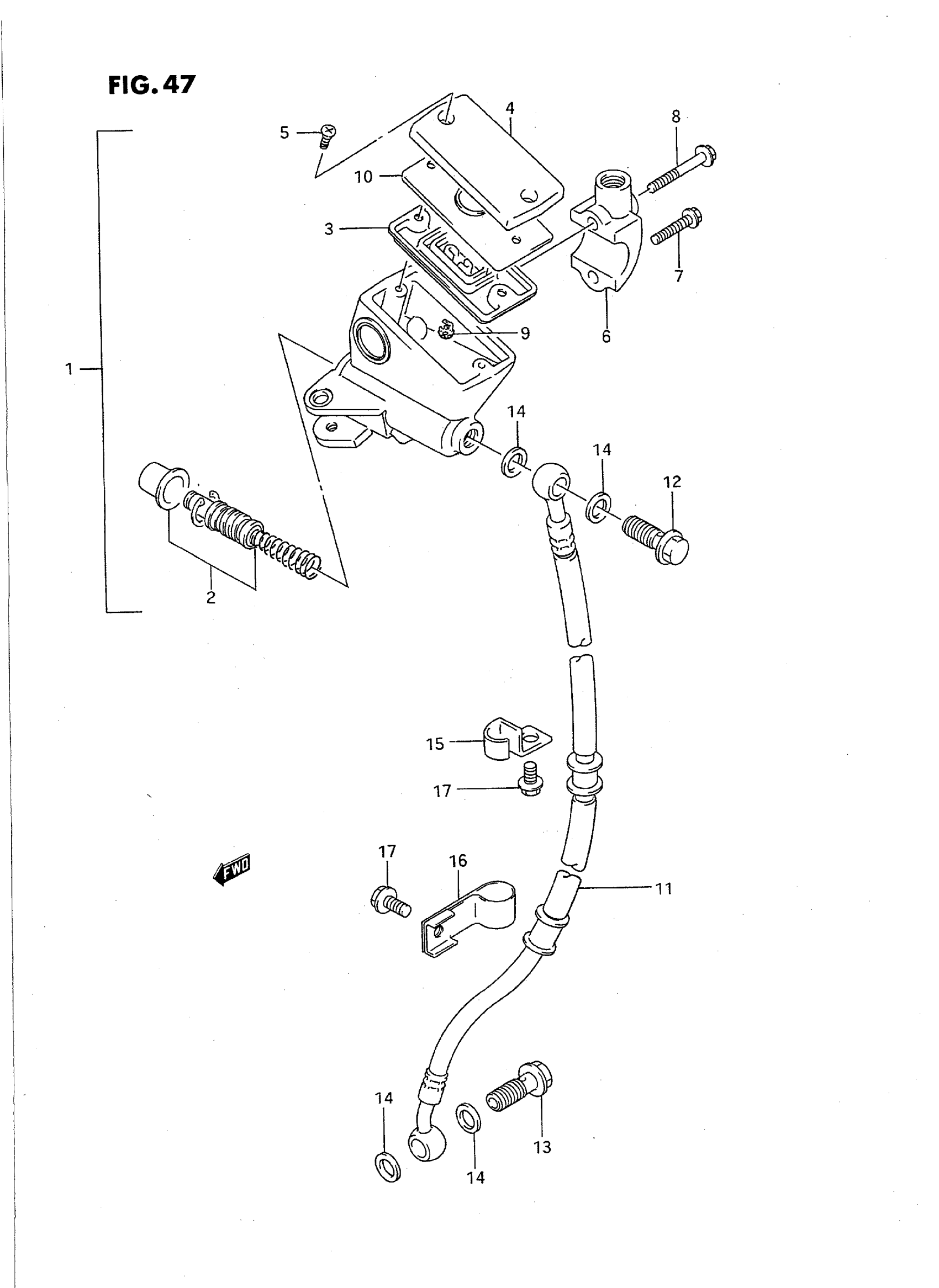

Suzuki GS500ET (1996) FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER | MODEL K

59600-38C00

Unavailable

1

CYLINDER ASSY, FRONT MASTER | MODEL L/M/N/P/R/S/T; Includes Item(s) 2 - 10

59600-45C10

$291.88

2

PISTON/CUP SET This part replaces 59600-36820.

59600-04810

$45.20

3

DIAPHRAGM

59667-49460

$9.78

4

CAP | MODEL K/L/M/N->59669-41C00W/59668-41C00 This part replaces 59669-34C00.

59669-41C00

$32.56

4

CAP | MODEL P/R/S/T

59669-41C00

$32.56

5

SCREW

69689-49300

$1.91

6

HOLDER

59671-44300

$17.37

7

BOLT HOLDER SET

59675-19C00

$4.02

8

BOLT, UPPER

59675-19C10

$4.82

9

PROTECTOR

59664-48B00

$11.02

10

PLATE | MODEL P/R/S/T

59668-41C00

$9.32

11

HOSE, FRONT BRAKE (L:690) | MODEL K

59480-01D00

Unavailable

11

HOSE | MODEL L/M/N/P/R/S/T This part replaces 59480-01D20.

59480-01D21

Unavailable

12

BOLT (10X1.00X24) | MODEL K/L/M/N/P

09360-10017

$3.42

12

UNION | MODEL R/S/T This part replaces 09360-10039.

09360-10061

$6.43

13

UNION | MODEL K/L/M/N/P This part replaces 09360-10033.

09360-10062

$6.43

13

UNION | MODEL R/S/T This part replaces 09360-10040.

09360-10062

$6.43

14

WASHER (10X15X1.5)

09161-10009

$1.84

15

CLAMP, HOSE

59268-01D01

Unavailable

16

CLAMP, HOSE

59268-01D10

Unavailable

17

BOLT, CLAMP | MODEL K/L/M/N/P This part replaces 01517-06125.

01550-0612A

$1.97

17

BOLT, CLAMP | MODEL R/S/T This part replaces 01550-06123.

01550-0612A

$1.97
