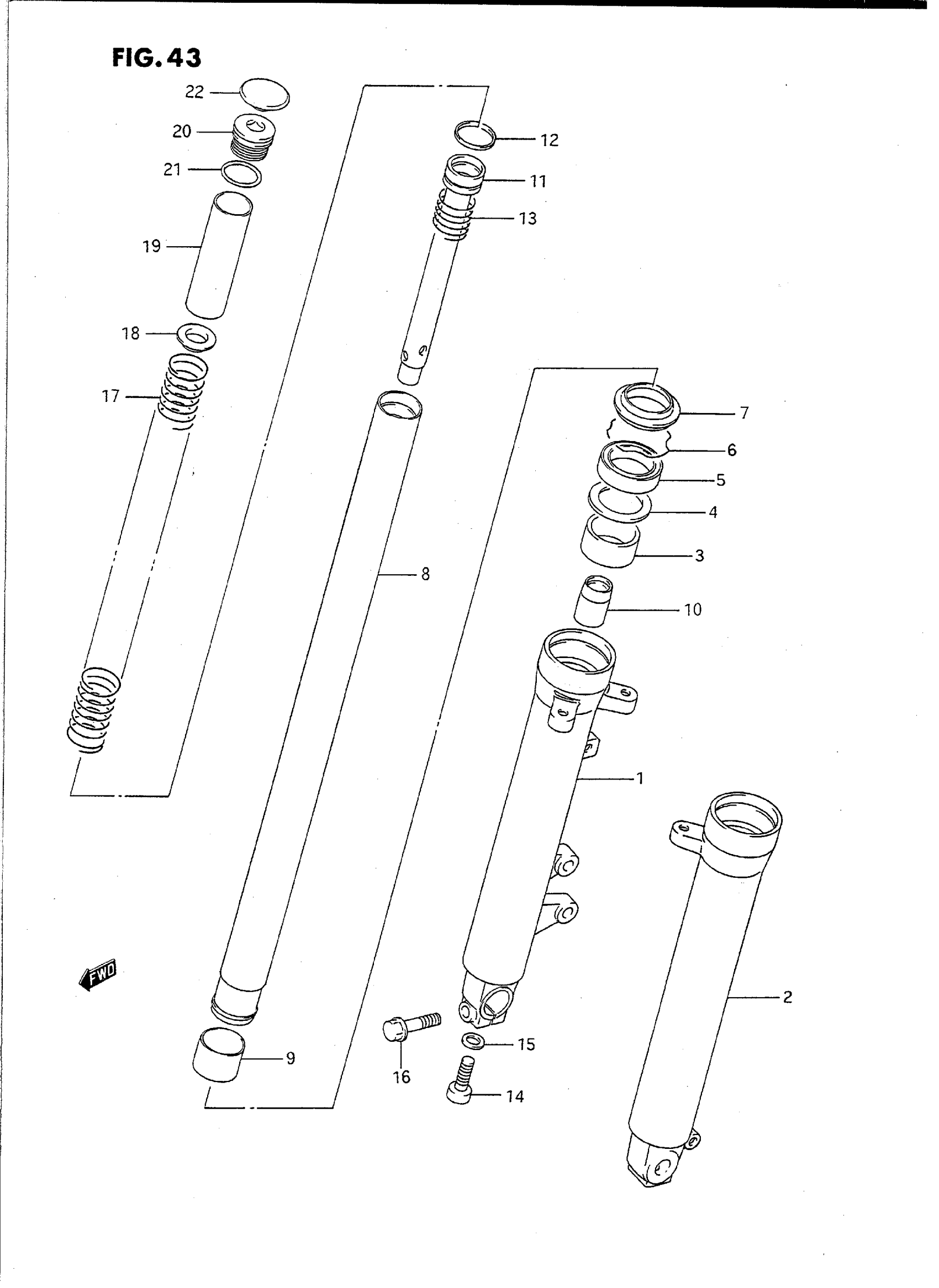

Suzuki GS500ET (1996) FRONT DAMPER Diagram

#

Description
Price

DAMPER ASSY, FRONT FORK RH (SILVER) (SILVER) (SILVER) | MODEL K/L This part replaces 51103-01D00.

51103-01D90-13L

Unavailable

DAMPER ASSY, FRONT FORK RH (SILVER) (SILVER) (SILVER) | MODEL M/N/P This part replaces 51103-01D31.

51103-01D90-13L

Unavailable

DAMPER ASSY, FRONT FORK RH (SILVER) (SILVER) (SILVER) | MODEL R/S/T This part replaces 51103-01D90.

51103-01D90-13L

Unavailable

NO DESCRIPTION AVAILABLE | MODEL K/L This part replaces 51104-01D00.

51104-01D90-13L

Unavailable

NO DESCRIPTION AVAILABLE | MODEL M/N/P This part replaces 51104-01D30.

51104-01D90-13L

Unavailable

NO DESCRIPTION AVAILABLE | MODEL R/S/T; Includes Item(s) 1 - 22 This part replaces 51104-01D90.

51104-01D90-13L

Unavailable

1

TUBE, OUTER RH (SILVER) | MODEL K/L This part replaces 51130-01D00.

51130-01D01-13L

Unavailable

1

TUBE, OUTER RH (SILVER) | MODEL M/N/P/R/S/T This part replaces 51130-01D01.

51130-01D01-13L

Unavailable

2

TUBE, OUTER LH (SILVER) This part replaces 51140-01D00.

51140-01D00-13L

Unavailable

3

METAL, SLIDE

51167-01D00

$12.63

4

WASHER

51158-49500

$4.45

5

SEAL, OIL This part replaces 51153-01D00.

51153-08C20

$20.47

6

RING, SNAP

51156-40301

$5.05

7

SEAL, DUST This part replaces 51173-01D00.

51173-08C20

$22.21

8

TUBE, INNER

51110-01D00

Unavailable

9

PISTON

51121-01D00

$18.90

10

PIECE, OIL LOCK

51195-01D00

$20.45

11

CYLINDER

51146-01D00

$117.48

12

RING, PISTON

51196-13A10

$8.42

13

SPRING, REBOUND

51177-01D00

$10.07

14

BOLT

51147-16510

$4.34

15

GASKET

51148-41310

$2.26

16

BOLT | MODEL K/L/M/N/P/R This part replaces 01517-08407.

01550-08407

$3.42

16

BOLT, RH | MODEL S/T

01550-08407

$3.42

17

SPRING, MAIN

51171-01D00

Unavailable

18

GUIDE, SPRING

51172-40300

$6.48

19

SPACER

51176-01D00

Unavailable

20

BOLT, FORK | MODEL K/L This part replaces 51351-01D00.

51351-01D30

Unavailable

20

BOLT, FORK | MODEL M/N/P/R/S/T

51351-01D30

Unavailable

21

O RING

51117-40300

$3.09

22

CAP, FORK BOLT

51189-30520

$12.40
