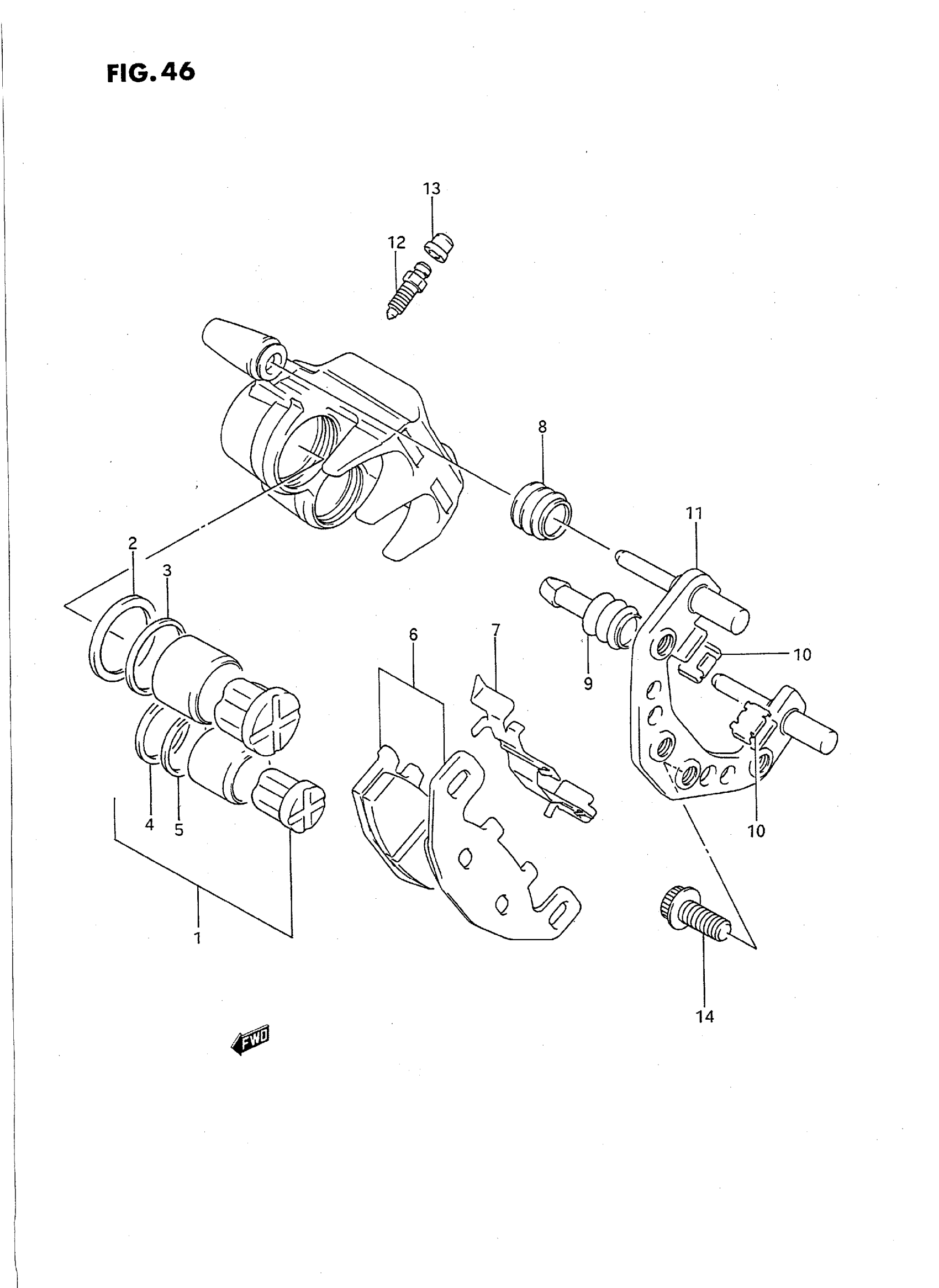

Suzuki GS500ET (1996) FRONT CALIPER (MODEL K/L/M/N/P/R/S) Diagram

#

Description
Price

NO DESCRIPTION AVAILABLE | MODEL K/L This part replaces 59100-01D00.

59100-01D02

Unavailable

NO DESCRIPTION AVAILABLE | MODEL M/N/P/R/S; Includes Item(s) 1 - 13 This part replaces 59100-01D01.

59100-01D02

Unavailable

1

PISTON SET | MODEL K/L This part replaces 59100-01810.

59100-01831

$73.72

1

PISTON SET | MODEL M/N/P/R/S This part replaces 59100-01830.

59100-01831

$73.72

2

SEAL,PISTON This part replaces 59107-39100.

59107-35F00

$11.80

3

DUST SEAL

59108-36A00

$11.07

4

SEAL,PISTON This part replaces 59107-04A00.

59107-40F00

$10.95

5

DUST SEAL

59108-04A00

$10.77

6

PAD SET This part replaces 59100-01820.

59301-45860

Unavailable

7

SPRING

59115-01D00

Unavailable

8

BOOT

59112-44B00

$8.91

9

INSULATOR, AXLE

59113-01D00

$10.17

10

GUIDE, PAD

59116-01D00

Unavailable

11

BRACKET

59150-01D00

Unavailable

12

BLEEDER

59121-18410

$8.73

13

CAP, BLEEDER This part replaces 59122-18410.

55156-66310

$5.17

14

BOLT | MODEL K/L/M/N/P This part replaces 07120-10258.

07120-10257

$4.77

14

BOLT | MODEL R This part replaces 07120-10253.

07120-1025A

$4.32

14

BOLT (10X20) | MODEL S This part replaces 01550-10253.

01550-1025A

$3.05

15

REFER TO FIG.46A(H-11) FOR

SPECIAL NOTE

Unavailable
