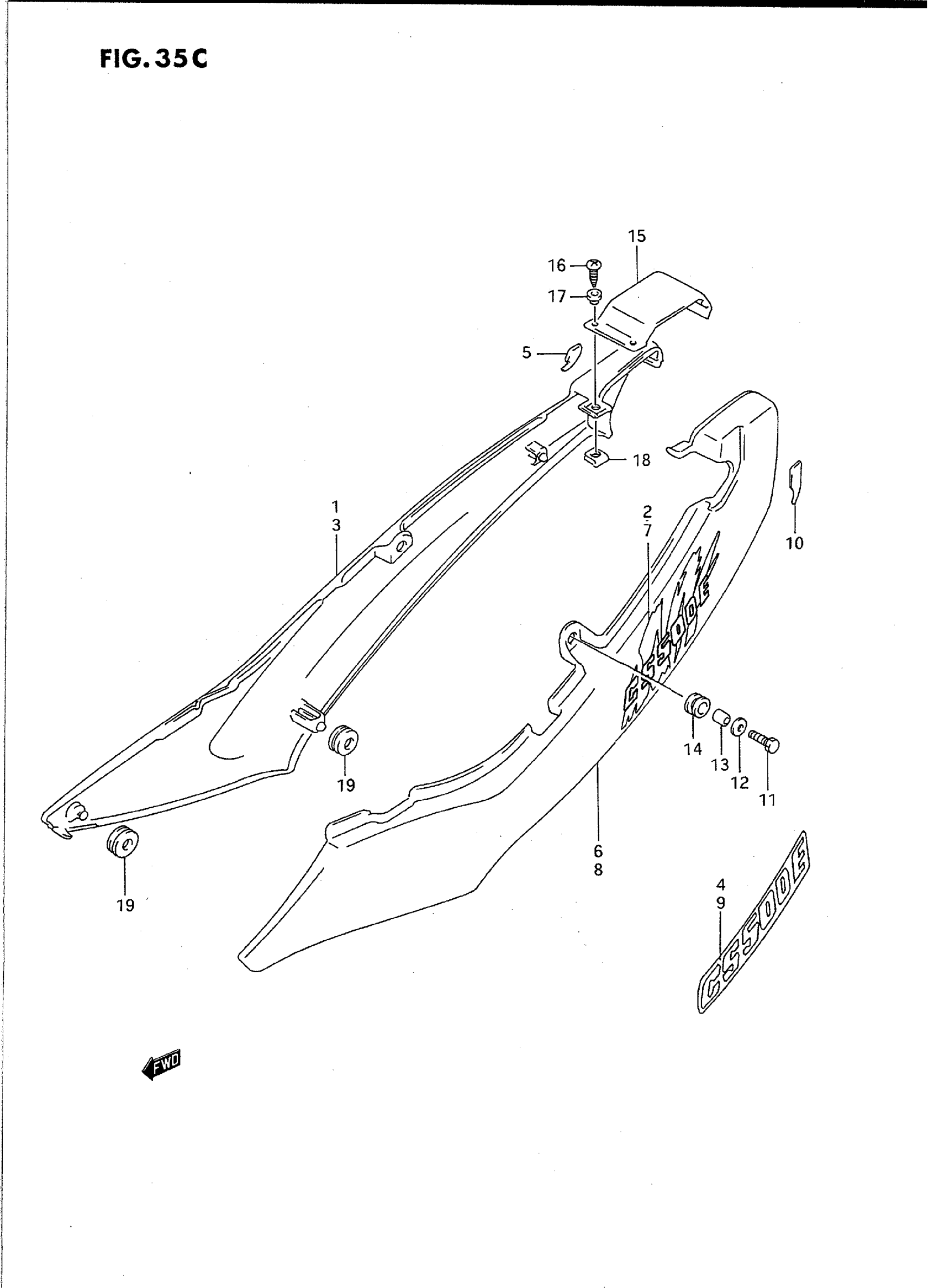

Suzuki GS500ET (1996) FRAME COVER (MODEL R/S/T) Diagram

#

Description
Price

1

COVER, FRAME RH (RED) | MODEL R

47110-01DC0-19A

Unavailable

1

COVER, FRAME RH (GREEN) | MODEL S

47110-01DC0-1ZV

Unavailable

1

COVER, FRAME RH (PURPLE) | MODEL R/S; Includes Item(s) 2 - 2

47110-01DC0-1TU

Unavailable

2

EMBLEM | MODEL R FOR 19A

68131-01D20-C1W

Unavailable

2

EMBLEM | MODEL S FOR 1ZV

68131-01D20-D0V

Unavailable

2

EMBLEM | MODEL R/S FOR 1TU

68131-01D20-C1Z

Unavailable

3

COVER, FRAME RH (RED) | MODEL T

47110-01DE0-19A

Unavailable

3

COVER, FRAME RH (BLACK) | MODEL T; Includes Item(s) 4 - 4

47110-01DE0-33J

Unavailable

4

EMBLEM | MODEL T FOR 19A

68131-01D30-87N

Unavailable

4

EMBLEM | MODEL T FOR 33J

68131-01D30-E5H

Unavailable

5

PROTECTOR, RH

47119-01D00

Unavailable

6

COVER, FRAME LH (RED) | MODEL R

47210-01DC0-19A

Unavailable

6

COVER, FRAME LH (GREEN) | MODEL S

47210-01DC0-1ZV

Unavailable

6

COVER, FRAME LH (PURPLE) | MODEL R/S; Includes Item(s) 7 - 7

47210-01DC0-1TU

Unavailable

7

EMBLEM | MODEL R FOR 19A

68131-01D20-C1W

Unavailable

7

EMBLEM | MODEL S FOR 1ZV

68131-01D20-D0V

Unavailable

7

EMBLEM | MODEL R/S FOR 1TU

68131-01D20-C1Z

Unavailable

8

COVER, FRAME LH (RED) | MODEL T

47210-01DE0-19A

Unavailable

8

COVER, FRAME LH (BLACK) | MODEL T; Includes Item(s) 9 - 9

47210-01DE0-33J

Unavailable

9

EMBLEM | MODEL T FOR 19A

68131-01D30-87N

Unavailable

9

EMBLEM | MODEL T FOR 33J

68131-01D30-E5H

Unavailable

10

PROTECTOR, LH

47219-01D00

Unavailable

11

BOLT | MODEL R This part replaces 09128-06006.

09128-06057

$1.65

11

BOLT | MODEL S/T

09116-06010

$2.19

12

WASHER (6.5X18X1.6) This part replaces 09160-06057.

09160-06109

$1.49

13

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

$2.03

14

CUSHION

09320-09016

$1.97

15

COVER, CENTER (RED) | MODEL R/T

47215-01D00-19A

Unavailable

15

COVER, CENTER (GREEN) | MODEL S

47215-01D00-1ZV

Unavailable

15

COVER, CENTER (PURPLE) | MODEL R/S

47215-01D00-1TU

Unavailable

15

COVER, CENTER (BLACK) | MODEL T

47215-01D00-33J

Unavailable

16

SCREW This part replaces 03241-05123.

03241-0512A

$1.49

17

WASHER

09161-05017

$3.18

18

NUT | MODEL R/S

09148-05013

$2.07

18

NUT | MODEL T This part replaces 09148-05004.

09148-05013

$2.07

19

CUSHION

09320-08018

$3.04
