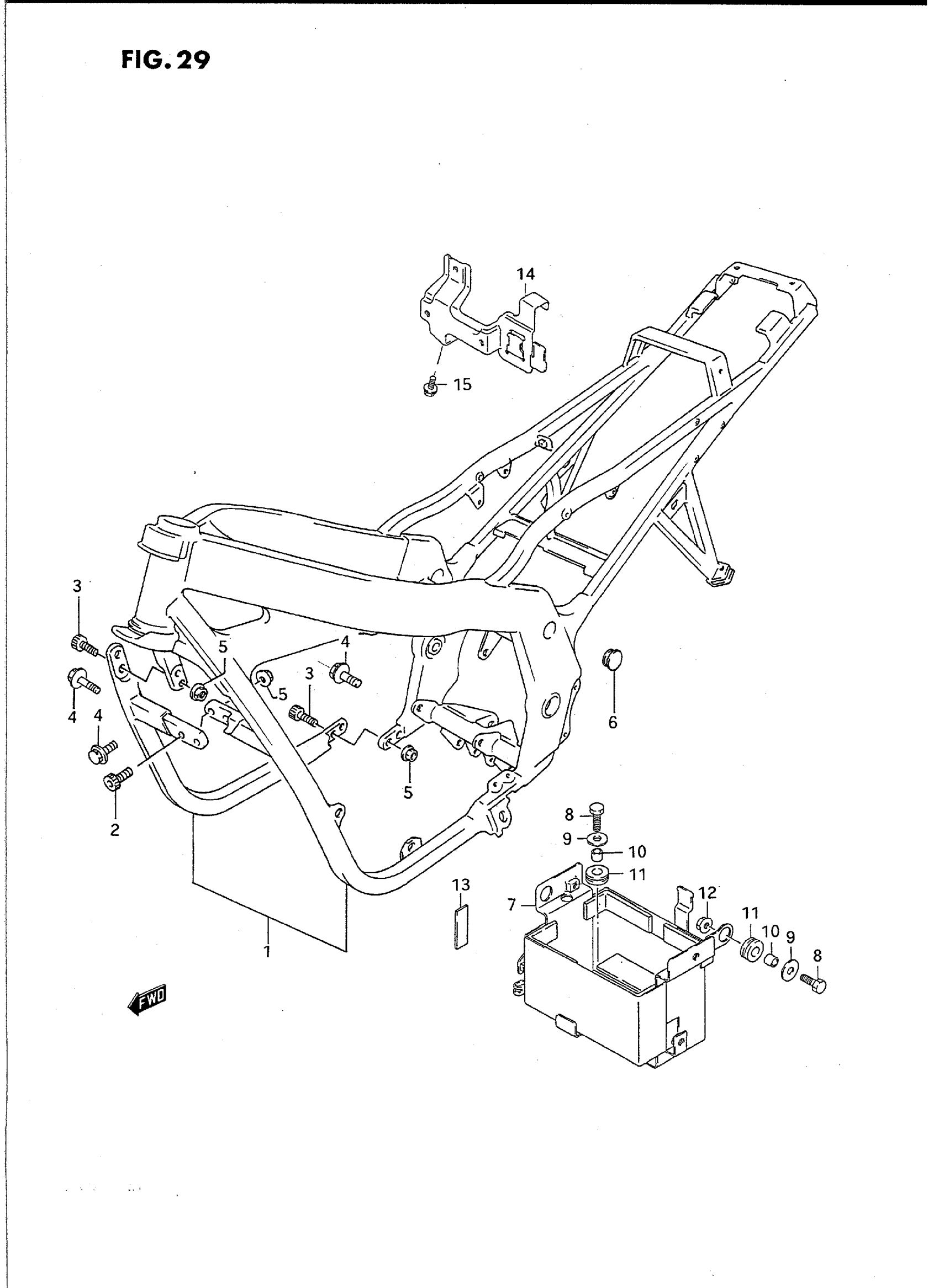

Suzuki GS500ET (1996) FRAME Diagram

#

Description
Price

1

FRAME SET (SILVER) | MODEL K This part replaces 41102-01820-0FP.

41102-01830-0FP

Unavailable

1

FRAME SET (SILVER) | MODEL L

41102-01830-0FP

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL M/N/P This part replaces 41102-01840-0FP.

41102-01860-0FP

Unavailable

1

FRAME SET (SILVER) | MODEL R This part replaces 41102-01851-13L.

41102-01871-13L

Unavailable

1

FRAME SET (SILVER) | MODEL S This part replaces 41102-01870-13L.

41102-01871-13L

Unavailable

1

FRAME SET (GRAY) | MODEL T; Includes Item(s) 2 - 5

41102-01871-17U

Unavailable

2

BOLT, UPPER | MODEL K/L

07130-10357

$5.18

3

BOLT | MODEL K/L

07130-10307

$4.41

4

BOLT | MODEL M/N/P This part replaces 01537-10358.

01550-10357

Unavailable

4

BOLT | MODEL R/S/T

01550-10357

Unavailable

5

NUT

08319-31107

$2.73

6

CAP, BODY | MODEL L/M/N/P/R/S/T

43585-01D00

$6.88

7

HOLDER, BATTERY | MODEL K This part replaces 41540-01D00.

41540-01D10

Unavailable

7

HOLDER, BATTERY | MODEL L/M This part replaces 41540-01D20.

41540-01D21

Unavailable

7

HOLDER, BATTERY | MODEL N/P/R/S/T

41540-01D31

Unavailable

7

HOLDER, BATTERY | CALIFORNIA ONLY,MODEL K

41540-01D10

Unavailable

7

HOLDER, BATTERY | CALIFORNIA ONLY,MODEL L/M This part replaces 41540-01D30.

41540-01D31

Unavailable

7

HOLDER, BATTERY | CALIFORNIA ONLYMODEL N/P/R/S/T

41540-01D31

Unavailable

8

BOLT | MODEL K/L/M/N/P/R/S This part replaces 01500-06163.

01500-0616A

$1.78

8

BOLT | MODEL T This part replaces 09116-06083.

09116-06167

$2.19

9

.WASHER (6.5X20X1.6) | MODEL K/L/M/N/P/R/S This part replaces 09160-06059.

09160-06088

$1.65

10

SPACER (6.2X9X7.5) | MODEL K/L/M/N/P/R

09180-06103

Unavailable

10

SPACER (6.1X9X7.5) | MODEL S/T

09180-06038

$1.98

11

CUSHION (8.5X20X8) | MODEL K/L/M/N/P This part replaces 09320-08007.

09320-08510

$1.97

11

CUSHION (8.5X20X8) | MODEL R/S/T This part replaces 09320-08021.

09320-08510

$1.97

12

NUT | MODEL K/L/M/N/P This part replaces 09159-06017.

08319-31067

$2.03

12

NUT | MODEL R/S/T This part replaces 08316-10063.

08316-1006B

$2.50

13

CUSHION (10X30X2) | CALIFORNIA ONLY

44894-24A00

$1.72

14

HOLDER, ELECTRIC PARTS

47410-01D00

Unavailable

15

SCREW | MODEL K/L/M/N/P

02152-06206

Unavailable

15

SCREW | MODEL R/S This part replaces 02142-06203.

02142-0620A

$1.49

15

BOLT | MODEL T This part replaces 01550-06163.

01550-0616A

$1.97
