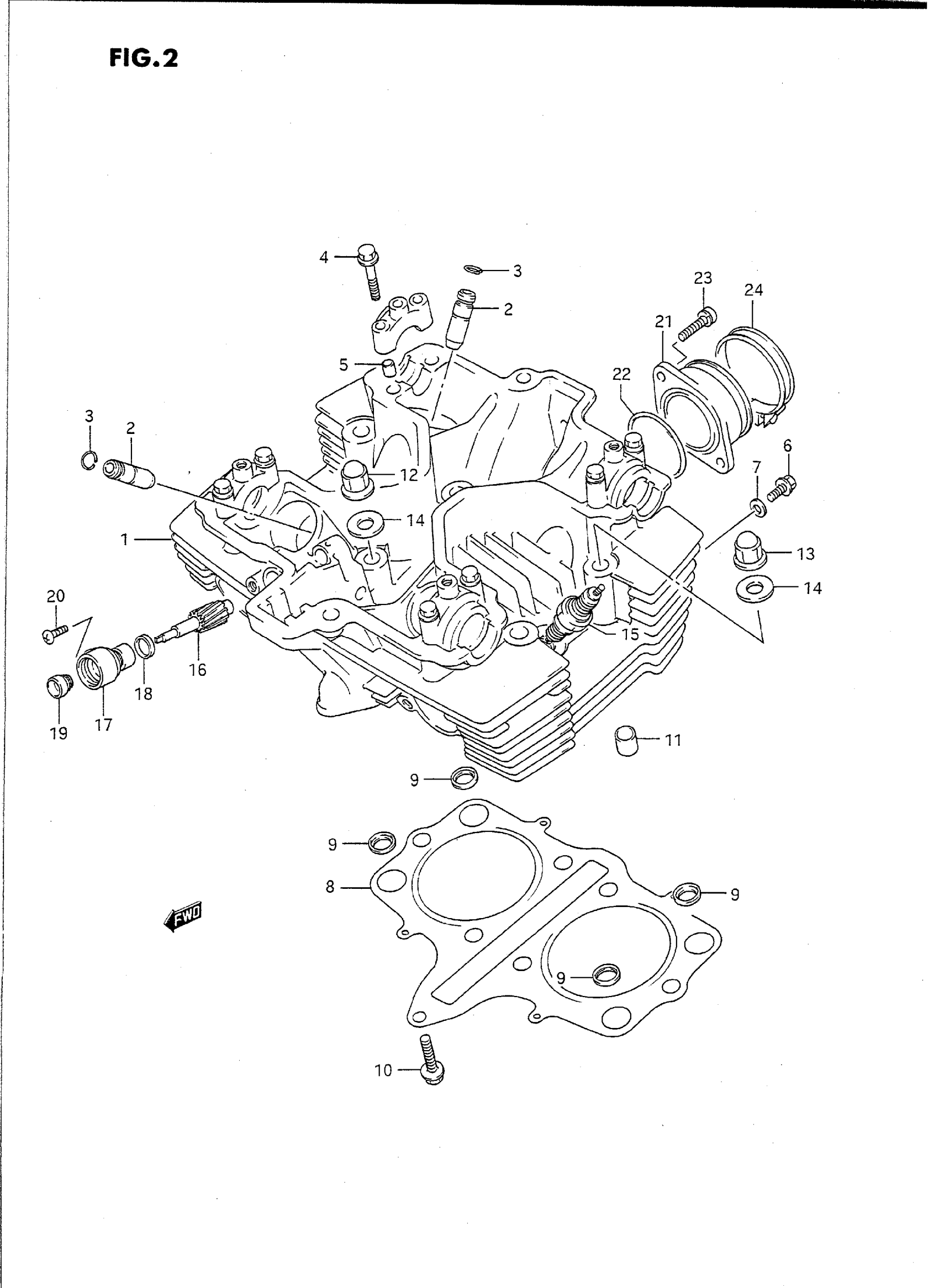

Suzuki GS500ET (1996) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER | Includes Item(s) 2 - 7

11100-01D01

Unavailable

2

GUIDE, VALVE

11115-45740

$40.73

3

RING, VALVE GUIDE

09381-10003

$2.47

4

BOLT (6X39)

09103-06071

$1.91

5

PIN

09206-08001

$1.78

6

BOLT, CLAMP | MODEL K/L/M/N/P This part replaces 01517-06125.

01550-0612A

$1.97

6

BOLT, CLAMP | MODEL R/S/T This part replaces 01550-06123.

01550-0612A

$1.97

7

GASKET

09168-06023

$2.35

8

GASKET, CYLINDER HEAD | MODEL K/L/M/N/P/R This part replaces 11141-01D02.

11141-01D11

$42.07

8

GASKET, CYLINDER HEAD | MODEL S/T This part replaces 11141-01D10.

11141-01D11

$42.07

9

O RING, CYLINDER HEAD

11143-06B00

$6.28

10

BOLT | MODEL K/L/M/N/P This part replaces 01517-06305.

01550-0630A

$2.32

10

BOLT | MODEL R/S/T This part replaces 01550-06303.

01550-0630A

$2.32

11

PIN

04211-11189

$1.78

12

NUT | MODEL K/L

09159-10026

$6.20

12

NUT | MODEL M/N/P/R/S/T

09159-10069

$7.05

13

NUT | MODEL K/L/M/N/P/R This part replaces 09159-10033.

09159-10026

$6.20

13

NUT | MODEL S/T

09159-10026

$6.20

14

GASKET | MODEL K/L

09168-10017

$3.04

14

.GASKET (10.2X20X2.3) | MODEL M/N/P/R/S/T

09168-10031

$2.03

15

SPARK PLUG (NGK,DPR8EA-9)

09482-00334

$3.03

15

SPARK PLUG (DENSO,X24EPR-U9) This part replaces 09482-00335-111.

09482-00335

$5.36

16

GEAR, TACHO. DRIVEN (NT:10)

26431-45002

$48.23

17

SLEEVE

26441-49000

$30.58

18

SEAL BAND

26451-45000

$5.05

19

OIL SEAL

09289-05002

$8.43

20

SCREW

09128-05101

$1.49

21

PIPE ASSY,INTAK This part replaces 13110-01D00.

13101-01D00

$34.84

22

O-RING (D:2.4,ID:39.7) This part replaces 09280-40003.

09280-40020

$2.91

23

SCREW | MODEL K/L/M/N/P This part replaces 02112-36205.

02112-3620A

$2.06

23

SCREW | MODEL R/S This part replaces 02112-36203.

02112-3620A

$2.06

23

SCREW | MODEL T This part replaces 02112-16163.

02112-1616A

$2.30

24

CLAMP | MODEL K/L/M/N/P/R This part replaces 09402-54207.

09402-54208

$5.57

24

CLAMP | MODEL S/T

09402-54208

$5.57
