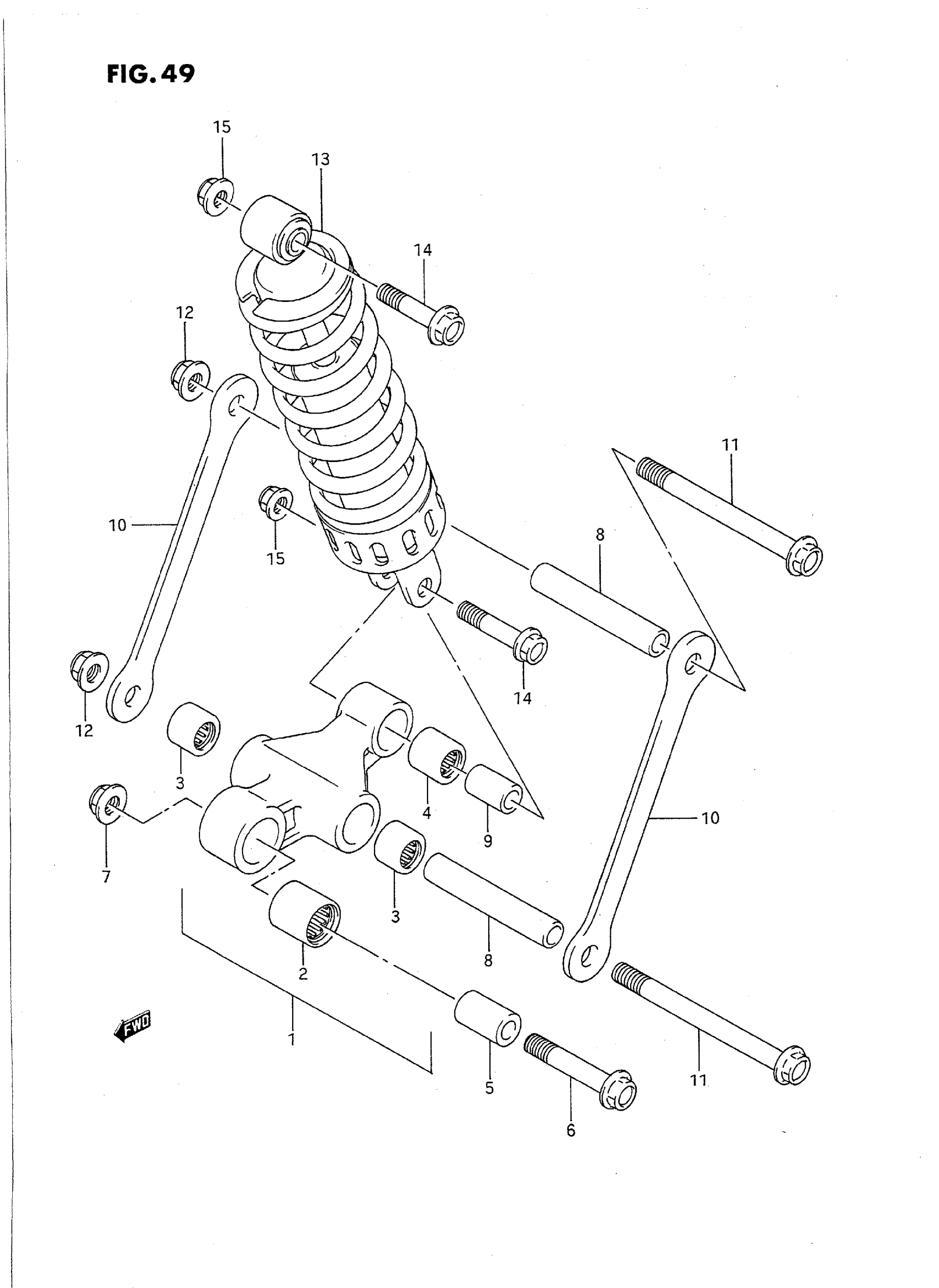

Suzuki GS500ET (1996) CUSHION LEVER (MODEL K/L) Diagram

#

Description
Price

1

LEVER SET, REAR CUSHION | Includes Item(s) 2 - 4

62601-01810

Unavailable

2

.BEARING This part replaces 09263-20064.

09263-20120

$22.46

3

.BEARING (17X24X25) This part replaces 09263-17037.

09263-17053

$21.66

4

.BEARING (17X24X26) This part replaces 09263-17034.

09263-17057

$20.85

5

SPACER, RR CUSHION LEVER RR This part replaces 62684-05C00.

62684-01D00

$19.37

6

BOLT, FRONT

09103-12042

$8.50

7

NUT This part replaces 08319-31128.

08319-3112A

$3.76

8

SPACER, CENTER

09180-12125

$26.48

9

SPACER, REAR

62684-40A10

$12.15

10

ROD, REAR CUSHION This part replaces 62641-01D01.

62641-01D02

$27.97

11

BOLT, CENTER

09103-12041

$14.73

12

NUT This part replaces 08319-31128.

08319-3112A

$3.76

13

ABSORBER ASSY, REAR SHOCK This part replaces 62100-01D01.

62100-01D10

Unavailable

14

BOLT

09103-10213

$5.77

15

NUT

08319-31107

$2.73

16

REFER TO FIG.49A(I- 4) FOR

SPECIAL NOTE

Unavailable
