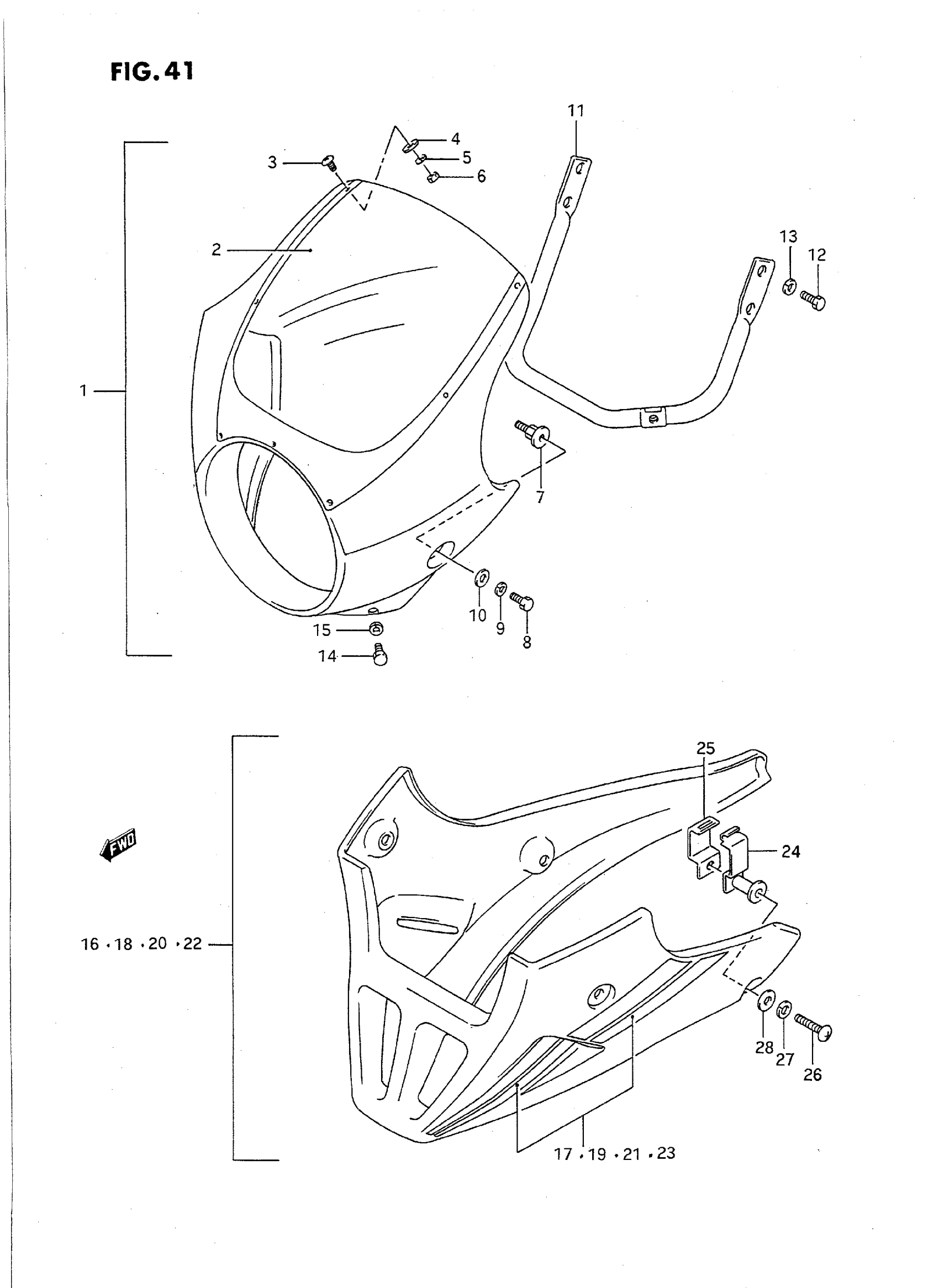

Suzuki GS500ET (1996) COWLING (MODEL K/L OPTIONAL) Diagram

#

Description
Price

1

COWLING ASSY, UPPER (WHITE) | MODEL K

94402-01D50-22R

Unavailable

1

COWLING ASSY, UPPER (RED) | MODEL L This part replaces 94402-01D50-28V.

94402-01D60-28V

Unavailable

1

COWLING ASSY, UPPER (BLACK) | MODEL K/L; Includes Item(s) 2 - 15 This part replaces 94402-01D50-33J.

94402-01D60-33J

Unavailable

2

SCREEN

94432-01D50

Unavailable

3

SCREW This part replaces 02142-04105.

02142-0410A

$1.49

4

WASHER This part replaces 08322-21045.

08322-0104A

$1.91

5

LOCK WASHER This part replaces 08321-21045.

08321-0104A

$1.84

6

NUT This part replaces 08310-11045.

08310-0004A

$2.30

7

BOLT, HEAD LAMP

94741-01D50

Unavailable

8

BOLT

01204-06167

$1.98

9

LOCK WASHER

08321-01067

$2.13

10

WASHER This part replaces 09160-06006.

09160-06084

$1.78

11

BRACE

94510-01D50

Unavailable

12

BOLT

01204-06167

$1.98

13

WASHER

08322-01067

$2.13

14

BOLT

01204-06127

$2.07

15

LOCK WASHER

08321-01067

$2.13

16

COWLING SET, UNDER (WHITE) | MODEL K->94470-01810-22R This part replaces 94401-01D50-22R.

94470-01810-22R

Unavailable

16

COWLING ASSY, UNDER (RED) | MODEL L->94470-01820-28V

94401-01D50-28V

Unavailable

16

COWLING SET, UNDER (BLACK) | MODEL K/L->94470-01830-33J; Includes Item(s) 17 - 17 This part replaces 94401-01D50-33J.

94470-01870-33J

Unavailable

17

TAPE SET | FOR 22R,MODEL K

68190-01D50-2DN

Unavailable

17

TAPE SET | FOR 33J,MODEL K

68190-01D50-8SH

Unavailable

17

TAPE SET | FOR 28V,MODEL L

68190-01D50-3YR

Unavailable

17

TAPE SET | FOR 33J,MODEL L

68190-01D50-3VN

Unavailable

18

COWLING SET, UNDER (WHITE) | Includes Item(s) 19

94470-01810-22R

Unavailable

19

TAPE SET

68190-01D50-2DN

Unavailable

20

COWLING SET, UNDER (RED) | Includes Item(s) 21

94470-01820-28V

Unavailable

21

TAPE SET (GRAY/WHITE)

68190-01D50-3YR

Unavailable

22

COWLING SET, UNDER (BLACK) | Includes Item(s) 23 - 28 This part replaces 94470-01830-33J.

94470-01870-33J

Unavailable

23

TAPE SET (BLUE/SILVER) | MODEL K

68190-01D50-8SH

Unavailable

23

TAPE SET (GRAY/SILVER) | MODEL L

68190-01D50-3VN

Unavailable

24

BRACKET, OUTER

94580-01D50

Unavailable

25

BRACKET, INNER

94582-01D50

Unavailable

26

SCREW

02142-06457

$2.72

27

LOCK WASHER

08321-01067

$2.13

28

WASHER This part replaces 09160-06006.

09160-06084

$1.78

29

REFER TO FIG.41A(H- 4) FOR

SPECIAL NOTE

Unavailable
