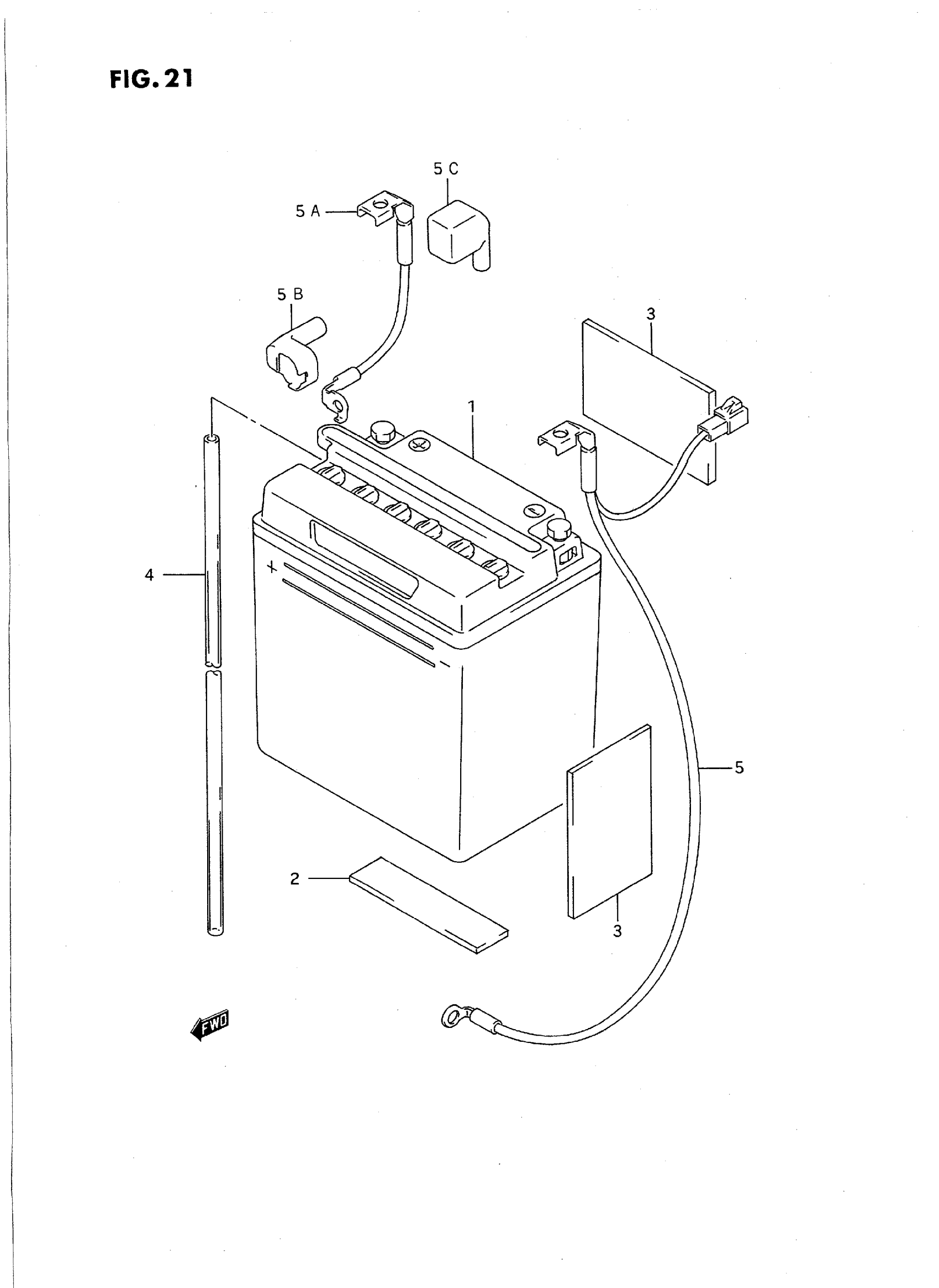

Suzuki GS500ET (1996) BATTERY Diagram

#

Description

Price

1

BATTERY (12V,14AH) This part replaces 33610-01D00.

33610-04A20

$107.78

2

CUSHION | 30X130->20X80

33652-19B00

$6.03

3

PROTECTOR

33651-37000

$4.48

4

HOSE,BATTERY EX This part replaces 33680-16A10.

33680-16A11

$6.78

5

LEAD WIRE, (-)

33860-01D00

Unavailable

5A

LEAD WIRE,BATTE | MODEL L/M/N/P/R/S/T; Includes Item(s) 5B - 5C This part replaces 33870-01D00.

33870-01D10

$30.57

5B

CAP, STARTER RELAY TERMINAL | MODEL L/M/N/P/R/S/T

33624-01D00

Unavailable

5C

CAP, BATTERY (+) | MODEL L/M/N/P/R/S/T

33624-43500

$5.50
