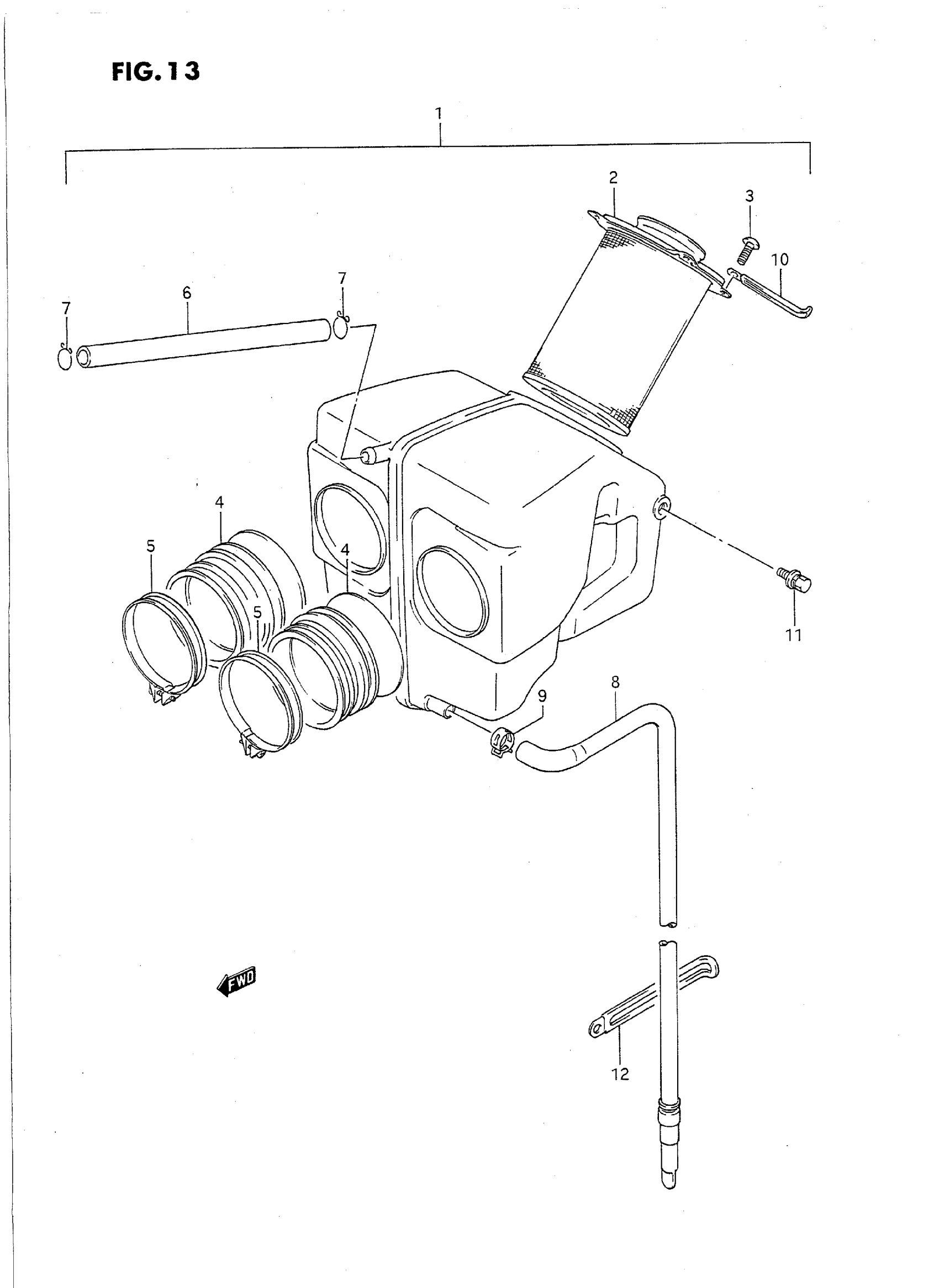

Suzuki GS500ET (1996) AIR CLEANER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL K/L This part replaces 13700-01D00.

13700-01D02

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL M This part replaces 13700-01D20.

13700-01D02

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL N/P/R/S/T; Includes Item(s) 2 - 10 This part replaces 13700-01D01.

13700-01D02

Unavailable

2

FILTER ASSY

13780-01D00

$39.78

3

SCREW

02142-05087

$1.49

4

TUBE,OUTLET This part replaces 13881-01D00.

13881-01D02

$16.46

5

CLAMP

09402-68208

$5.58

6

HOSE | MODEL K/L This part replaces 13853-01D01.

09352-11154-600

$13.05

6

HOSE | MODEL M/N/P/R/S/T This part replaces 09352-11153-600.

09352-11154-600

$13.05

7

CLIP

09401-14301

$2.35

8

TUBE,DRAIN | MODEL K/L/M/N This part replaces 13870-21411.

13870-21459

$23.68

8

TUBE,DRAIN | MODEL P/R This part replaces 13870-21428.

13870-21459

$23.68

8

TUBE,DRAIN | MODEL S This part replaces 13870-21628.

13870-21629

$22.90

8

TUBE,DRAIN | MODEL T This part replaces 13870-21458.

13870-21459

$23.68

9

CLAMP | MODEL K/L This part replaces 13827-38B00.

09401-13417

$2.26

9

CLIP | MODEL M/N This part replaces 13824-00A00.

09401-13409

$2.12

9

CLIP | MODEL P/R/S/T

09401-13409

$2.12

10

CLAMP(L:80) | MODEL K/L/M/N/P/R/S This part replaces 09404-06404.

09404-06036

$1.74

10

CLAMP | MODEL T This part replaces 09404-06413.

09404-06039

$1.74

11

BOLT (6X16) | MODEL K/L

09118-06088

Unavailable

11

SCREW | MODEL M/N/P This part replaces 02112-76165.

02112-7616A

$2.12

11

SCREW | MODEL R/S/T This part replaces 02112-76163.

02112-7616A

$2.12

12

CLAMP(L:80) | MODEL K/L/M/N/P/R This part replaces 09404-06426.

09404-06036

$1.74

12

CLAMP(L:80) | MODEL S/T This part replaces 09404-06433.

09404-06036

$1.74
