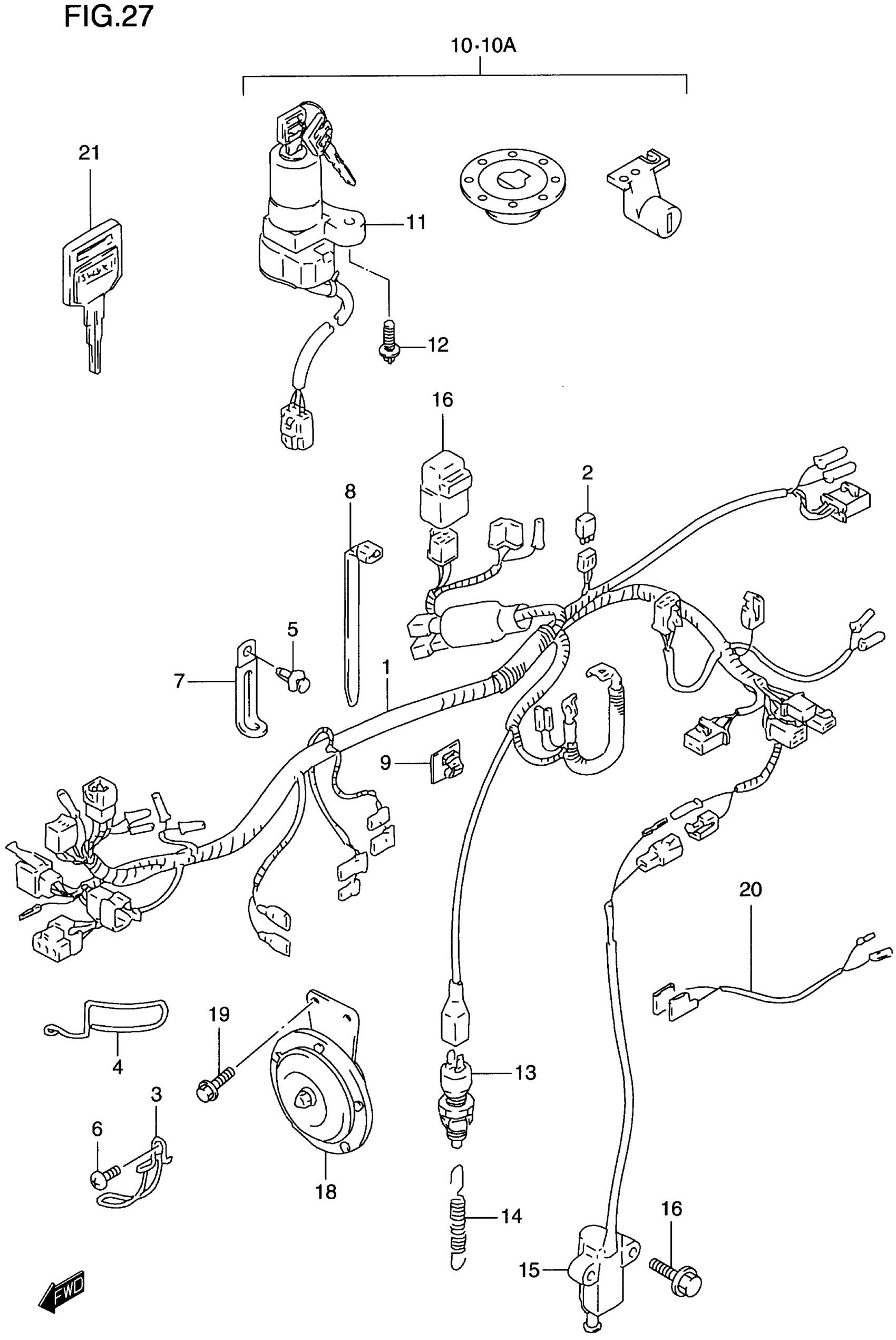

Suzuki GS500E (2000) WIRING HARNESS Diagram

#

Description
Price

1

HARNESS, WIRING | MODEL V This part replaces 36610-01D30.

36610-01D31

Unavailable

1

HARNESS, WIRING | MODEL W/X/Y; Includes Item(s) 2

36610-01D31

Unavailable

2

.DIODE This part replaces 36611-38A00.

36611-38A10

$13.16

3

PROTECTOR, WIRING HARNESS

36611-01D00

Unavailable

4

PROTECTOR, WIRING HARNESS

36611-01D10

Unavailable

5

CLIP (BLACK)

09409-07305-5PK

$2.21

6

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

7

CLAMP This part replaces 09404-06431.

09404-06039

$1.74

7

CLAMP This part replaces 09404-06432.

09404-06039

$1.74

7

CLAMP(L:80) This part replaces 09404-06434.

09404-06036

$1.74

7

CLAMP (L:65) This part replaces 09404-08418.

09404-08421

$2.07

8

CLAMP (L:125)

09407-14403

$2.26

8

CLAMP | MODEL V/W This part replaces 09407-18403.

09407-18402

$2.19

8

CLAMP (L:165) | MODEL X

09407-18402

$2.19

9

CLAMP

09403-06310

Unavailable

10

LOCK SET

37000-01840

Unavailable

10A

LOCK SET | E33; Includes Item(s) 11

37000-01850

Unavailable

11

LOCK ASSY, STEERING This part replaces 37100-26D02.

37100-26D03

$194.77

12

BOLT

09139-06026

$2.50

13

SWITCH ASSY, STOP LAMP

37740-24A00

$18.20

14

SPRING

09443-06042

$3.77

15

SWITCH ASSY, SIDE STAND

37840-01D01

Unavailable

16

BOLT This part replaces 01550-06303.

01550-0630A

$2.32

17

RELAY ASSY, SIDE STAND

38740-24X50

$45.20

18

HORN ASSY

38500-01D10

Unavailable

19

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

20

WIRE, CLUTCH SWITCH

36852-19D00

Unavailable

21

KEY, BLANK | OPT

37146-26D10

$49.70
