2000 Suzuki GS500E Turnsignal Lamp Diagram

← All diagrams

Find the part on the Turnsignal Lamp diagram for your 2000 Suzuki GS500E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

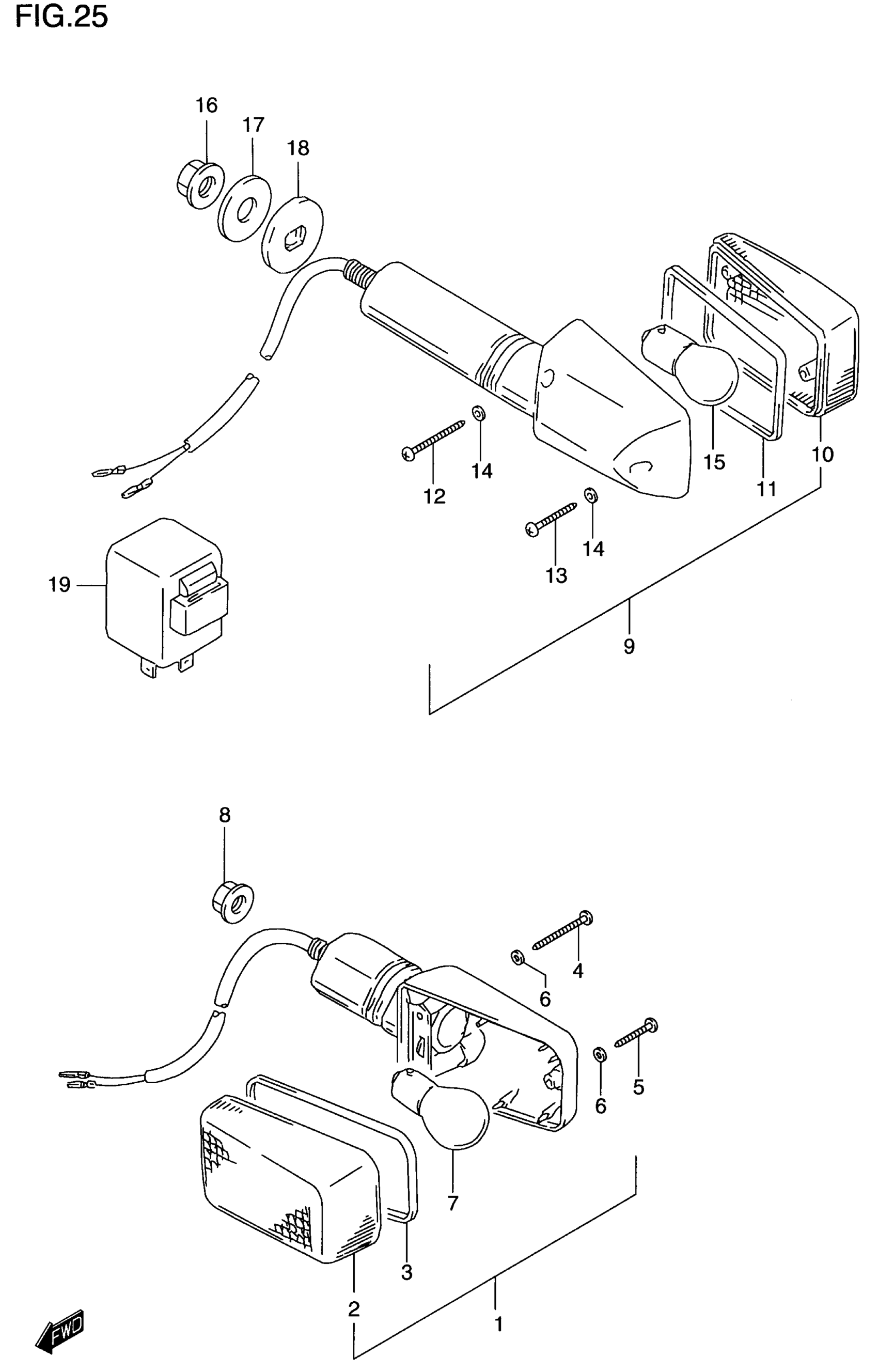

2000 Suzuki GS500E Turnsignal Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY, FRONT TURNSIGNAL | Includes Item(s) 2 - 7

35601-01D10

2
Out of stock

2

LENS

35612-17C20

2
Out of stock

3

GASKET

35613-27A00

2
Out of stock

4

TAPPING SCREW

35623-27A00

4
Out of stock

5

TAPPING SCREW

35725-40511

2
Out of stock

6

GASKET

35627-27A02

6
Out of stock

7

BULB (12V,21W)

09471-12045

2
Out of stock

8

NUT This part replaces 08316-10103.

08316-1010B

2
Out of stock

9

LAMP ASSY, REAR TURNSIGNAL | Includes Item(s) 10 - 14

35601-17C41

2
Out of stock

10

LENS

35612-17C20

2
Out of stock

11

GASKET

35613-27A00

2
Out of stock

12

TAPPING SCREW

35623-27A00

4
Out of stock

13

TAPPING SCREW

35725-40511

2
Out of stock

14

GASKET

35627-27A02

6
Out of stock

15

BULB (12V,21W)

09471-12045

2
Out of stock

16

2

$2.02

In stock

17

WASHER

09160-10501

2
Out of stock

18

SPACER

35695-17C00

2

$4.02

In stock

19

RELAY ASSY, TURNSIGNAL | MODEL V

38610-45D01

1
Out of stock

19

RELAY ASSY | MODEL W/X/Y This part replaces 38610-26E00.

38610-26E01

1
Out of stock
