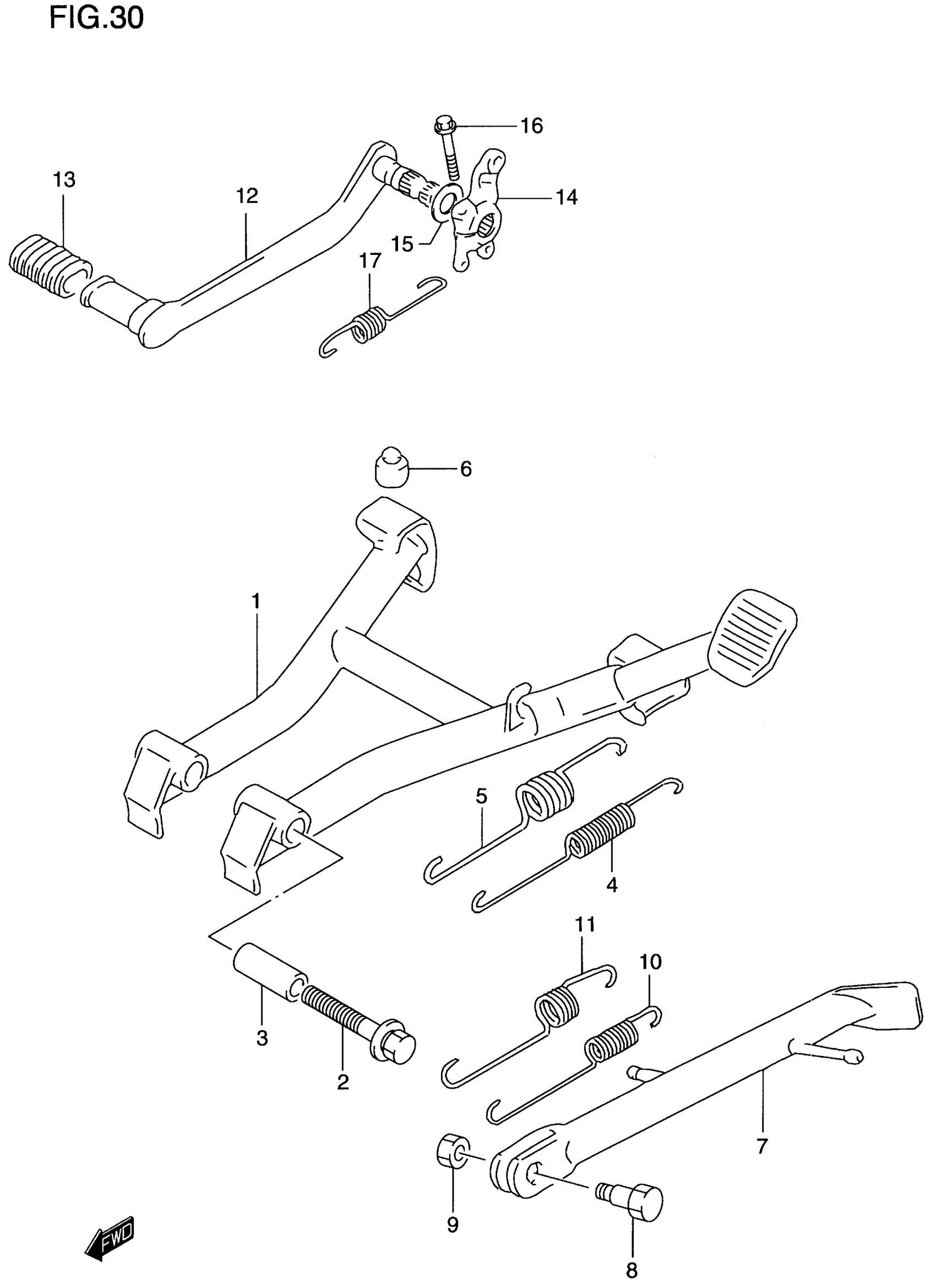

Suzuki GS500E (2000) STAND - REAR BRAKE Diagram

#

Description
Price

1

STAND, CENTER

42100-01D00

Unavailable

2

ARM, BRAKE ROD This part replaces 01580-10603.

01580-1060B

$6.05

3

SPACER

09180-10040

$2.56

4

SPRING, INNER

09443-14059

$9.73

5

SPRING, OUTER

09443-22013

$9.17

6

CUSHION

09321-10017

$6.38

7

STAND, PROP (BLACK)

42310-01D10-019

Unavailable

8

BOLT

09111-10027

$3.37

9

NUT | MODEL V/W

09159-10027

$3.10

9

NUT, REAR | MODEL X/Y This part replaces 08319-21103.

08319-2110A

$2.28

10

SPRING, INNER

09443-15046

$8.32

11

SPRING, OUTER

09443-22017

$7.74

12

PEDAL, BRAKE

43110-01D12

Unavailable

13

RUBBER

25652-49300

$5.07

14

ARM, BRAKE ROD

43121-01D00

Unavailable

15

WASHER

43212-04A00

$2.13

16

BOLT This part replaces 01550-06253.

01550-0625A

$1.97

17

SPRING, RETURN

09443-13028

$7.57
