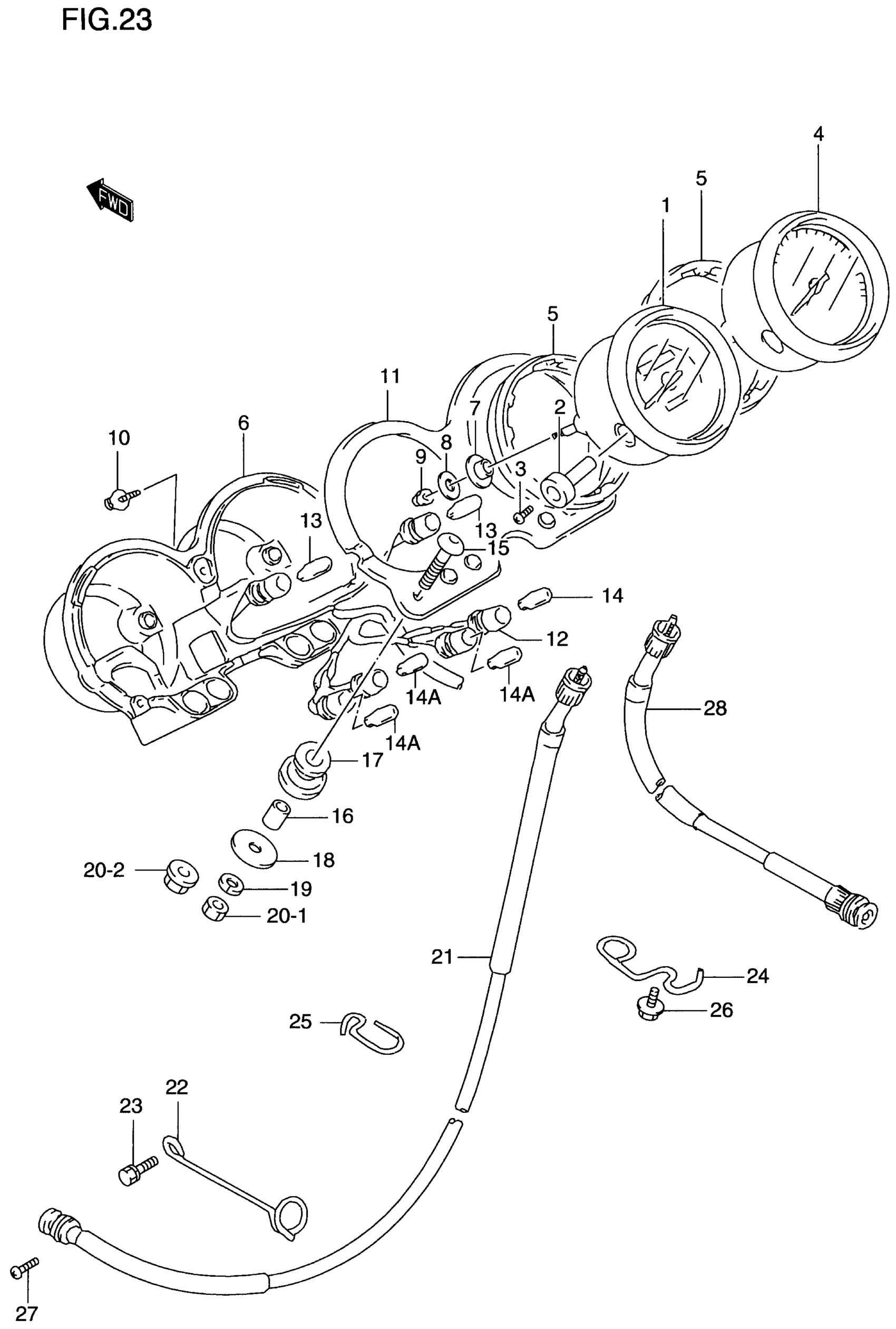

Suzuki GS500E (2000) SPEEDOMETER - TACHOMETER Diagram

#

Description
Price

1

SPEEDOMETER (MILE/KILO)

34110-01D30

Unavailable

1

SPEEDOMETER (KILO) | E28

34110-01D20

Unavailable

2

KNOB

34124-30B00

Unavailable

3

SCREW

09139-02003

$1.65

4

TACHOMETER

34210-01D20

Unavailable

5

DAMPER

34288-01D20

$7.25

6

COVER

34193-01D20

Unavailable

7

CUSHION

34189-01D20

$6.38

8

WASHER (5.5X16X1.2)

09160-05037

$1.49

9

NUT This part replaces 08313-10057.

08313-1005A

$1.93

10

SCREW This part replaces 02112-34083.

02112-3408A

$2.38

11

BRACKET, METER

34950-01D30

Unavailable

11

BRACKET, METER | E28

34950-01D21

Unavailable

12

SOCKET

34170-01D20

Unavailable

13

BULB (12V,3.4W) | FOR ILLUMINATION

09471-12028

$1.99

14

BULB (12V,1.7W) | FOR HIGH BEAM

09471-12165

$3.51

14A

BULB (12V,3.4W) | FOR OIL/NEUTRAL/TURN

09471-12082

Unavailable

15

BOLT (6X30)

09107-06003

$3.03

16

SPACER (6.5X10X15.7)

09180-06294

$3.35

17

CUSHION

34956-31001

$4.37

18

WASHER | MODEL V This part replaces 09160-06030.

09160-06136

$1.84

18

WASHER (6.5X28X1.6) | MODEL W/X/Y

09160-06136

$1.84

19

LOCK WASHER This part replaces 08321-01063.

08321-0106A

$1.84

20

NUT | MODEL V This part replaces 08310-00063.

08310-0006A

$1.84

20

NUT | MODEL W/X/Y This part replaces 08316-10063.

08316-1006B

$2.50

21

NO DESCRIPTION AVAILABLE This part replaces 34910-01D02.

34910-01D03

$40.10

22

GUIDE, CABLE NO.1

34938-45100

$6.57

23

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

24

GUIDE, CABLE NO.2

34938-01D01

Unavailable

25

GUIDE, CABLE NO.3

34938-01D10

Unavailable

26

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

27

.SCREW This part replaces 02112-05163.

02112-0516A

$1.49

28

CABLE,TACHOMETE This part replaces 34940-01D02.

34940-01D03

$66.23
