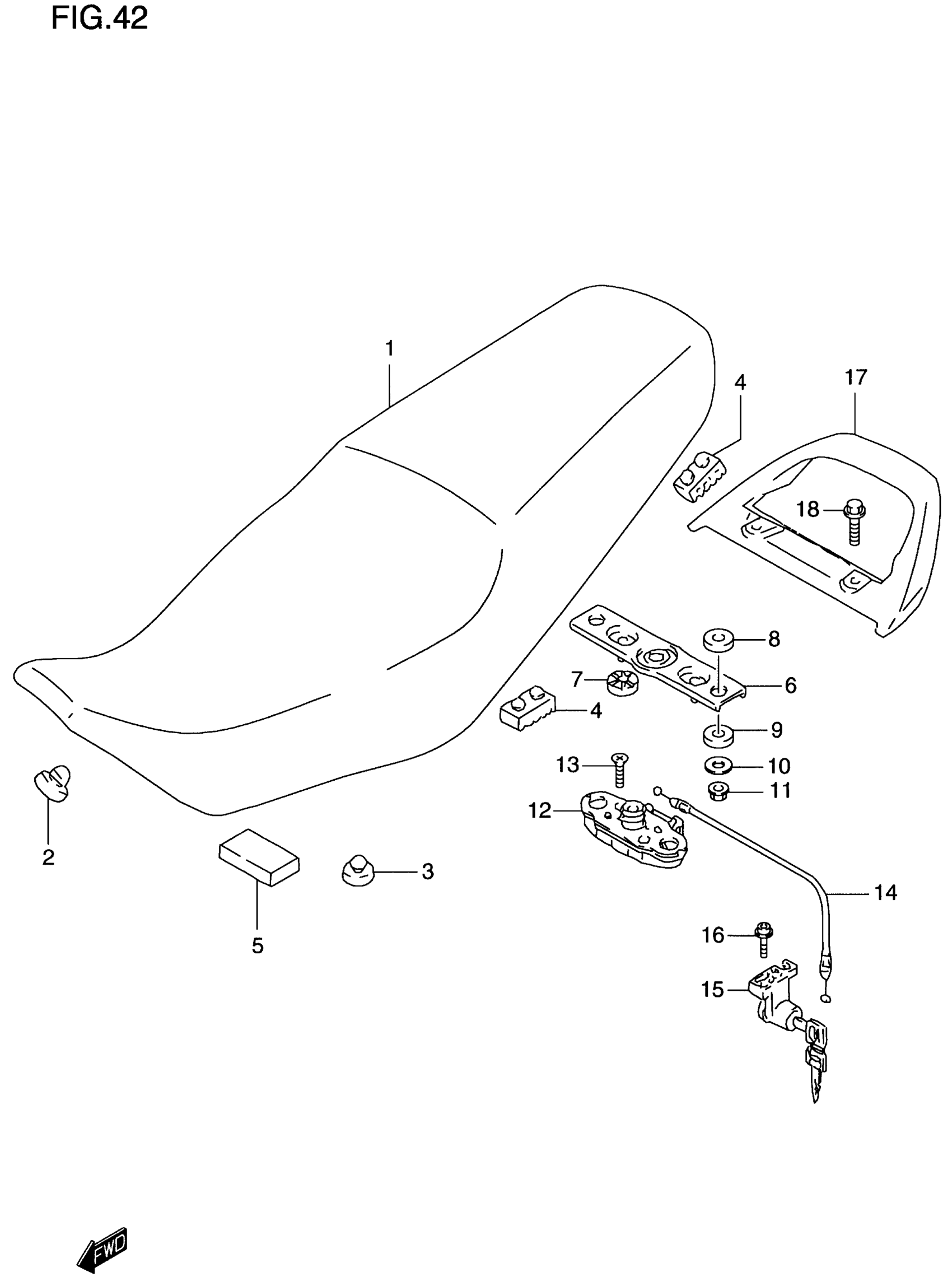

Suzuki GS500E (2000) SEAT Diagram

#

Description
Price

1

SEAT SET (BLACK) | Includes Item(s) 2 - 11

45100-01D10-58R

Unavailable

2

CUSHION, FRONT

09329-10001

$2.12

3

CUSHION

09321-10012

$2.92

4

CUSHION, CENTER & REAR

45149-31300

$3.56

5

CUSHION, BATTERY STOPPER

94982-29400

$2.28

6

STRIKER, SEAT LOCK

45215-22A00

$35.20

7

CUSHION, BOSS

45213-13601

$2.79

8

CUSHION, STRIKER UPPER

45126-41B00

$2.38

9

CUSHION, STRIKER LOWER

45127-41B00

$2.38

10

WASHER

08212-06201

$1.67

11

NUT This part replaces 08316-20063.

08316-2006A

$2.63

12

BRACKET, SEAT SUPPORT

45220-22A10

$62.85

13

SCREW This part replaces 02122-06303.

02122-0630B

$2.06

14

CABLE, SEAT LOCK

45280-01D00

Unavailable

15

LOCK SET, SEAT This part replaces 95700-31840.

95700-31841

$78.33

16

SCREW This part replaces 02142-05103.

02142-0510B

$1.78

17

HANDLE, PILLION RIDER (BLACK) This part replaces 46211-01D00-019.

46211C01D00JETN

Unavailable

18

BOLT This part replaces 01550-08253.

01550-0825A

$2.32
