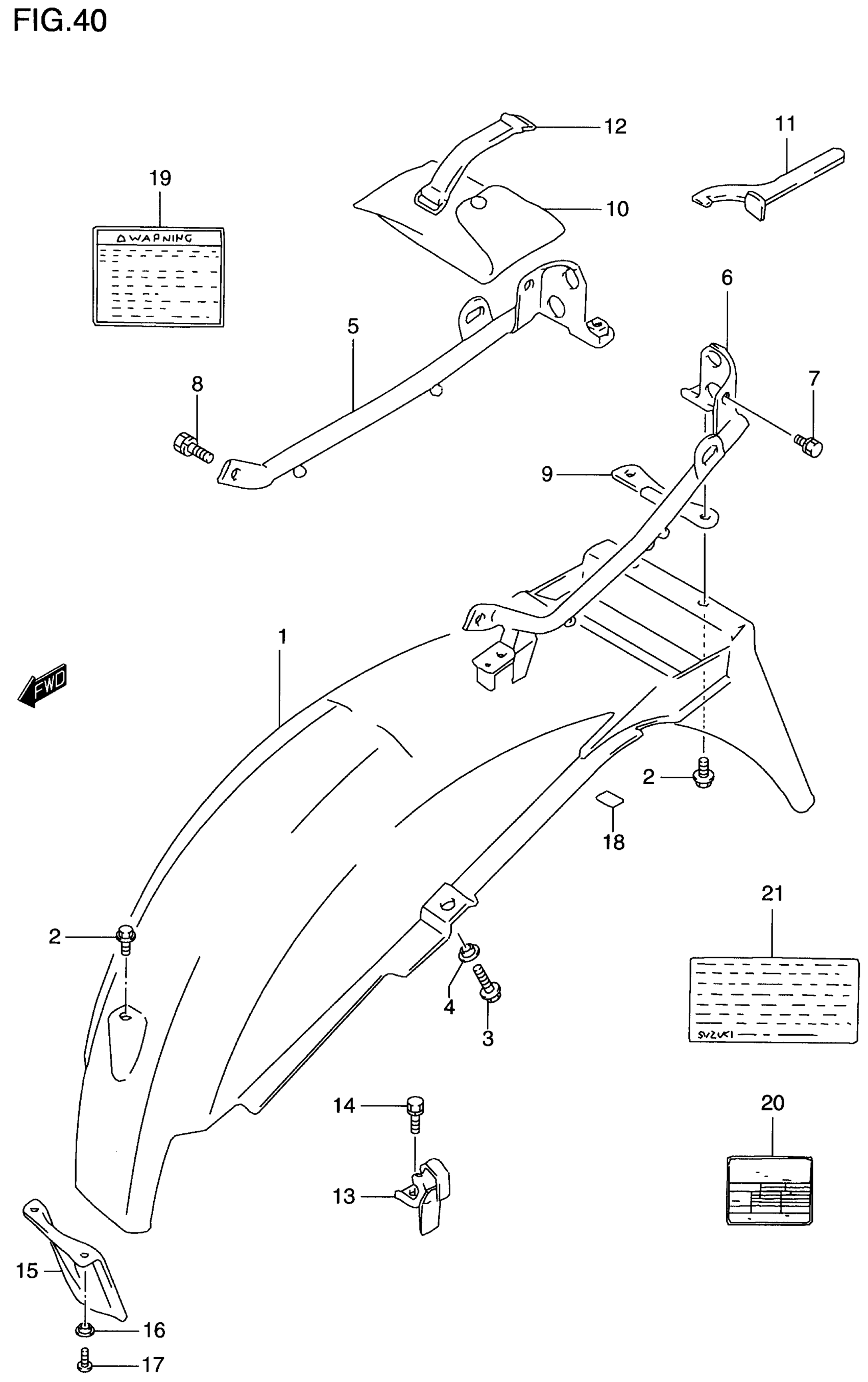

Suzuki GS500E (2000) REAR FENDER (MODEL V/W/X) Diagram

#

Description
Price

1

BODY, REAR FENDER This part replaces 63111-01D30.

63111-01D31-291

Unavailable

2

BOLT, CLAMP | MODEL V This part replaces 01550-06123.

01550-0612A

$1.97

2

BOLT | MODEL W/X

09111-06066

$2.62

3

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

4

WASHER

09169-06037

$2.45

5

BRACE, REAR FENDER RH

63210-01D10

Unavailable

6

BRACE, REAR FENDER LH

63220-01D10

Unavailable

7

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

$2.32

8

BOLT This part replaces 01550-08203.

01550-0820A

$2.23

9

PLATE, TOOL HOLDER

47425-01D00

$8.18

10

TOOL ASSY

09800-21017

$76.62

11

CLAMP WRENCH

09822-00005

$15.16

12

BAND

09462-00046

$3.70

13

HOLDER, HELMET

95720-01D00

Unavailable

14

BOLT This part replaces 01570-06203.

01570-0620A

$2.19

15

MUD GUARD, REAR UNIT This part replaces 63411-42A00.

63411C42A00J000

Unavailable

16

WASHER

09169-06010

$2.60

17

SCREW This part replaces 02142-06163.

02142-0616A

$1.49

18

TAPE, REAR FENDER

63115-06C00

Unavailable

19

LABEL,GENERAL W This part replaces 68319-33E00.

68319-33E02

$7.25

19

LABEL, WARNING SAFETY | E28 This part replaces 68319-33E10.

68319-33E11

Unavailable

20

LABEL, TIRE INFORMATION | MODEL V

68332-01D00

Unavailable

20

NO DESCRIPTION AVAILABLE | MODEL W/X This part replaces 68332-01D20.

68332-0BE21

Unavailable

20

LABEL,TIRE INFO | E28 This part replaces 68332-01D30.

68332-01D31

Unavailable

21

LABEL,MANUAL NOTICE This part replaces 68353-26E01.

68353-26E03

$5.05

22

LABEL, VACUUM HOSE ROUTING | E33 DRAWING NOT SHOWN

68387-01D00

Unavailable

23

MANUAL, OWNER'S | MODEL V

99011-01D58-03A

Unavailable

23

MANUAL, OWNER'S | MODEL W

99011-01D59-03A

Unavailable

23

MANUAL, OWNER'S | MODEL X This part replaces 99011-01D60-03A.

99011-01D61-03A

Unavailable

23

MANUAL, OWNER'S | MODEL V E28

99011-01D57-28B

Unavailable

23

MANUAL, OWNER'S | MODEL W E28

99011-01D59-28B

Unavailable

23

MANUAL, OWNER'S | MODEL X E28 DRAWING NOT SHOWM

99011-01D60-28B

Unavailable
