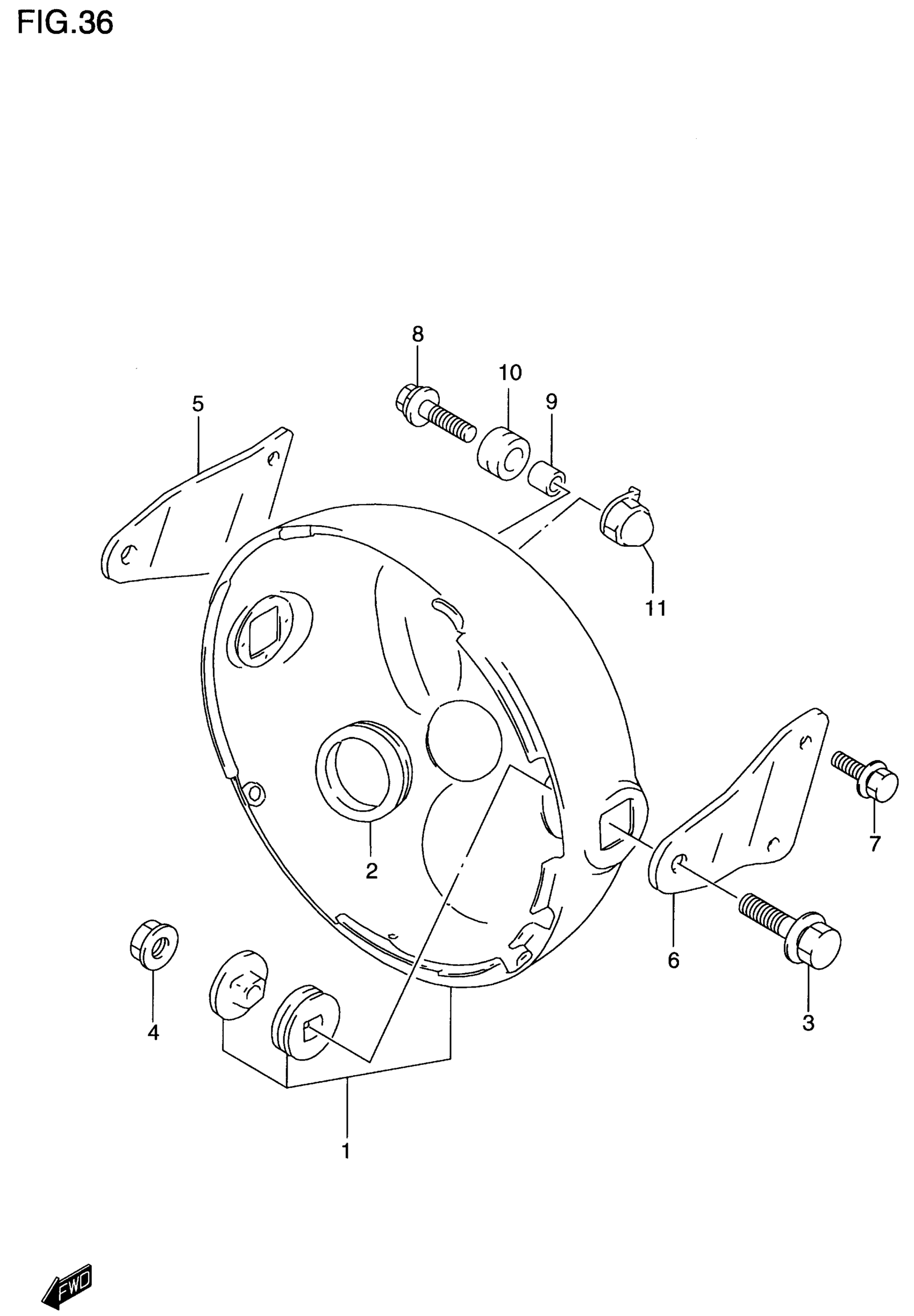

Suzuki GS500E (2000) HEADLAMP HOUSING Diagram

#

Description
Price

1

HOUSING, HEADLAMP | MODEL V/W/X

51810-01D21

Unavailable

1

HOUSING, HEADLAMP | MODEL Y; Includes Item(s) 2 - 2

51810-01D11

Unavailable

2

GROMMET | MODEL V This part replaces 51817-01D00.

51817-01D01

Unavailable

2

GROMMET | MODEL W/X/Y

51817-01D01

Unavailable

3

BOLT

01550-08307

$3.54

4

NUT This part replaces 08316-10083.

08316-1008B

$2.66

5

STAY,HDLAMP HOU This part replaces 51851-01D11.

51011-0BE00

$31.50

6

STAY,HDLAMP HOU This part replaces 51861-01D11.

51011-0BE00

$31.50

7

BOLT

01550-06127

$2.30

8

BOLT, TRIP METER (6X25) This part replaces 09118-06007.

09118-06086

$3.15

9

SPACER

09180-07004

$2.30

10

CUSHION

09320-10015

$2.54

11

PLATE

51815-06C00

Unavailable
