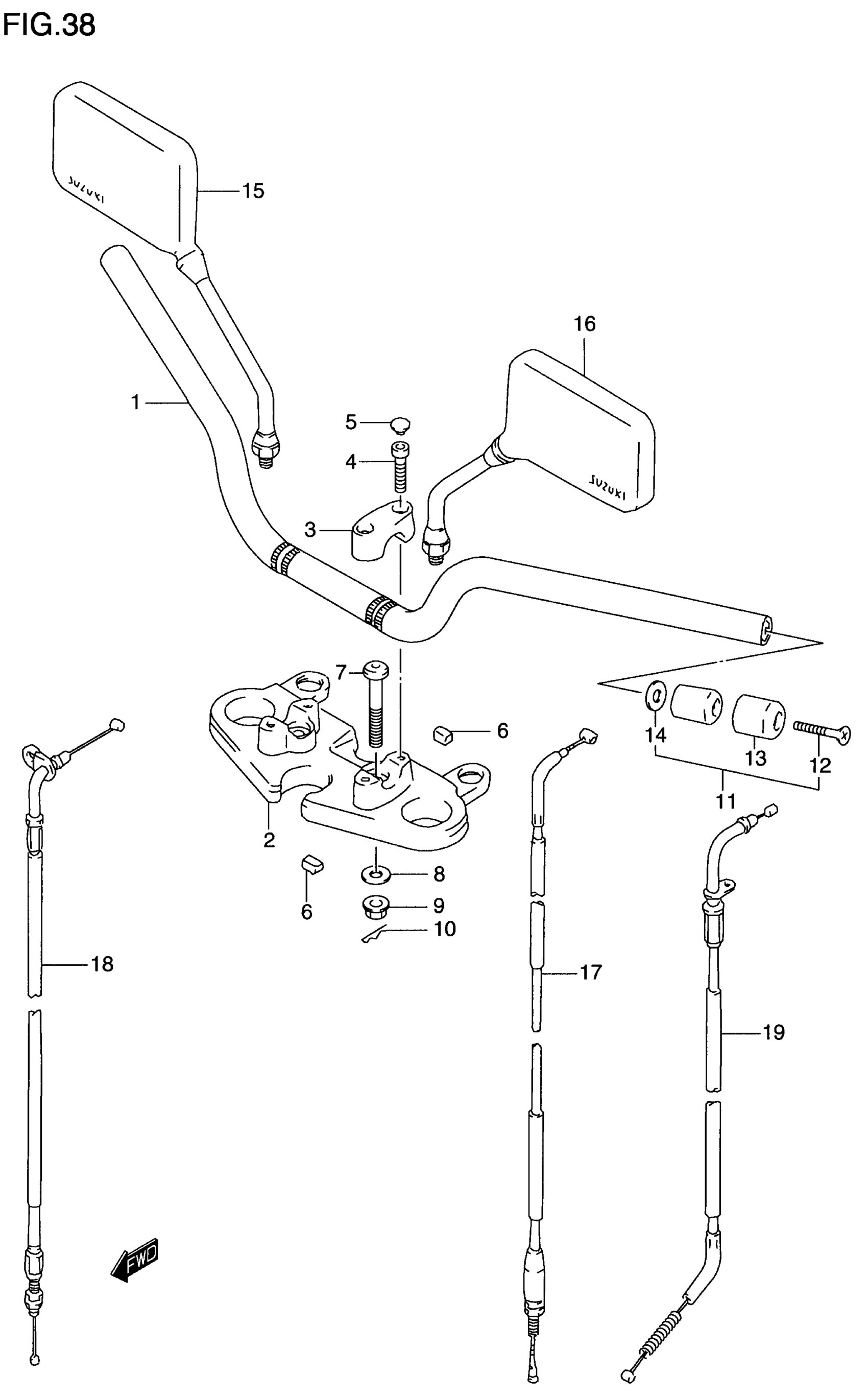

Suzuki GS500E (2000) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR | MODEL V/W

56110-01D51

Unavailable

1

HANDLEBAR | MODEL X/Y

56110-01D90

Unavailable

2

HOLDER, HANDLEBAR LOWER (SILVER)

56221-01D50-0FP

Unavailable

3

HOLDER, UPPER (SILVER)

56211-34300-0FP

Unavailable

4

BOLT, STEERING DAMPER | MODEL V/W This part replaces 07130-08303.

07130-0830A

$1.74

4

BOLT | MODEL X/Y

07130-08307

$3.89

5

CAP | MODEL V/W

09250-06004

$1.49

5

CAP | MODEL X/Y

09250-06009

$3.42

6

CUSHION, HOLDER

56241-01D00

Unavailable

7

BOLT

09106-10055

Unavailable

8

WASHER

09160-10094

$3.16

9

NUT | MODEL V/W This part replaces 08319-31103.

08319-3110A

$2.73

9

NUT | MODEL X/Y

08319-31107

$2.73

10

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

11

BALANCER SET, HANDLEBAR | Includes Item(s) 12 - 14

56200-01831

Unavailable

12

SCREW This part replaces 02122-06603.

02122-0660B

$3.04

13

CAP

56274-49310

Unavailable

14

SPACER

56275-34401

$4.02

15

MIRROR ASSY, REAR VIEW RH | MODEL V/W

56500-01D20

Unavailable

15

MIRROR ASSY, REAR VIEW RH | MODEL X/Y This part replaces 56500-03F30.

56500-03F31

$159.13

16

MIRROR ASSY, REAR VIEW LH | MODEL V/W

56600-01D20

Unavailable

16

MIRROR ASSY, REAR VIEW LH | MODEL X/Y This part replaces 56600-03F30.

56600-03F31

Unavailable

17

CABLE ASSY,CLUT This part replaces 58200-01D11.

58200-01D12

Unavailable

18

CABLE ASSY, THROTTLE

58300-01D10

Unavailable

19

CABLE, STARTER | MODEL V/W This part replaces 58410-01D10.

58410-01D11

$37.13

19

CABLE, STARTER | MODEL X/Y

58410-01D11

$37.13
