Description

Price

1

GRIP, THROTTLE This part replaces 57110-22D02.

57110-22D03

$29.21

2

LEVER ASSY, BRAKE | MODEL V This part replaces 57300-32C01.

57300-32C10

$78.02

2

LEVER ASSY, BRAKE | MODEL W/X/Y; Includes Item(s) 3 - 9

57300-32C10

$78.02

3

LEVER, ADJUST

57420-32C00

$28.92

4

KNOCKER | MODEL V This part replaces 57430-32C00.

57430-32C10

$60.37

4

KNOCKER | MODEL W/X/Y

57430-32C10

$60.37

5

SPRING

57438-32C00

$5.67

6

BOLT, LEVER

57437-32C01

$8.60

7

NUT This part replaces 08319-31063.

08319-3106A

$2.03

8

BOLT, KNOCKER

57431-17C00

$7.11

9

NUT This part replaces 08316-10063.

08316-1006B

$2.50

10

SWITCH ASSY,FR BRAKE | Includes Item(s) 11 This part replaces 57460-17C00.

57460-14J02

$38.46

11

SCREW

57465-17C00

$2.19

12

GRIP, LH (BLACK) This part replaces 57211-22D01.

57211-22D02-291

$14.55

13

LEVER ASSY,CLUT | Includes Item(s) 14 - 19 This part replaces 57500-01D01.

57500-29B10

Unavailable

14

LEVER, CLUTCH

57620-01D00

Unavailable

15

BOLT

57531-14A00

$7.46

16

.NUT This part replaces 08319-21063.

08319-2106B

$2.32

17

ADJUSTER

57441-11010

$5.62

18

NUT

57442-11010

$2.79

19

..BOLT This part replaces 01547-06203.

01547-0620B

$2.45

20

COVER, CLUTCH LEVER

57661-33400

$8.12

21

CLAMP

09407-12402

$3.04

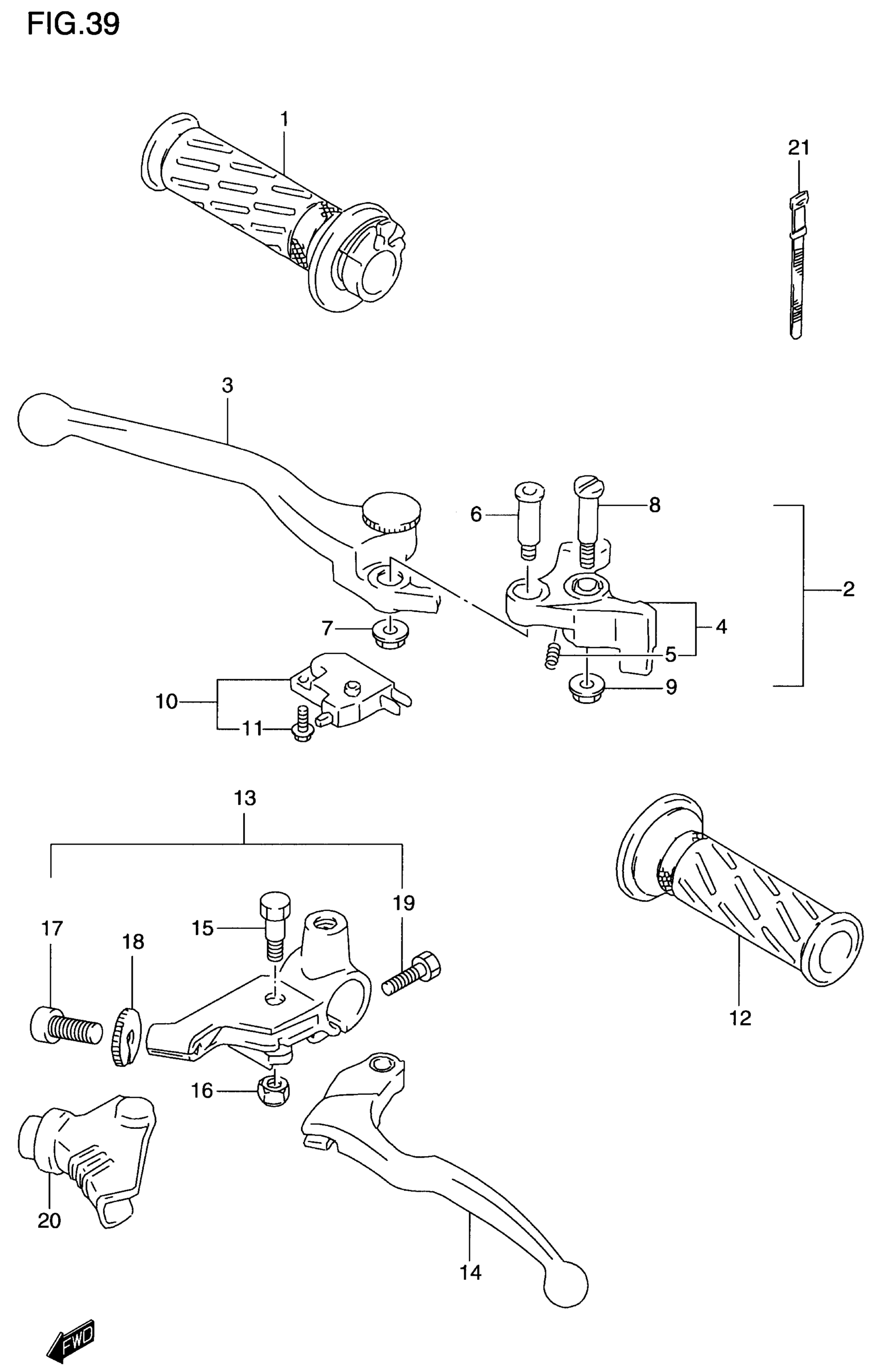

Suzuki GS500E (2000) HANDLE LEVER Diagram
