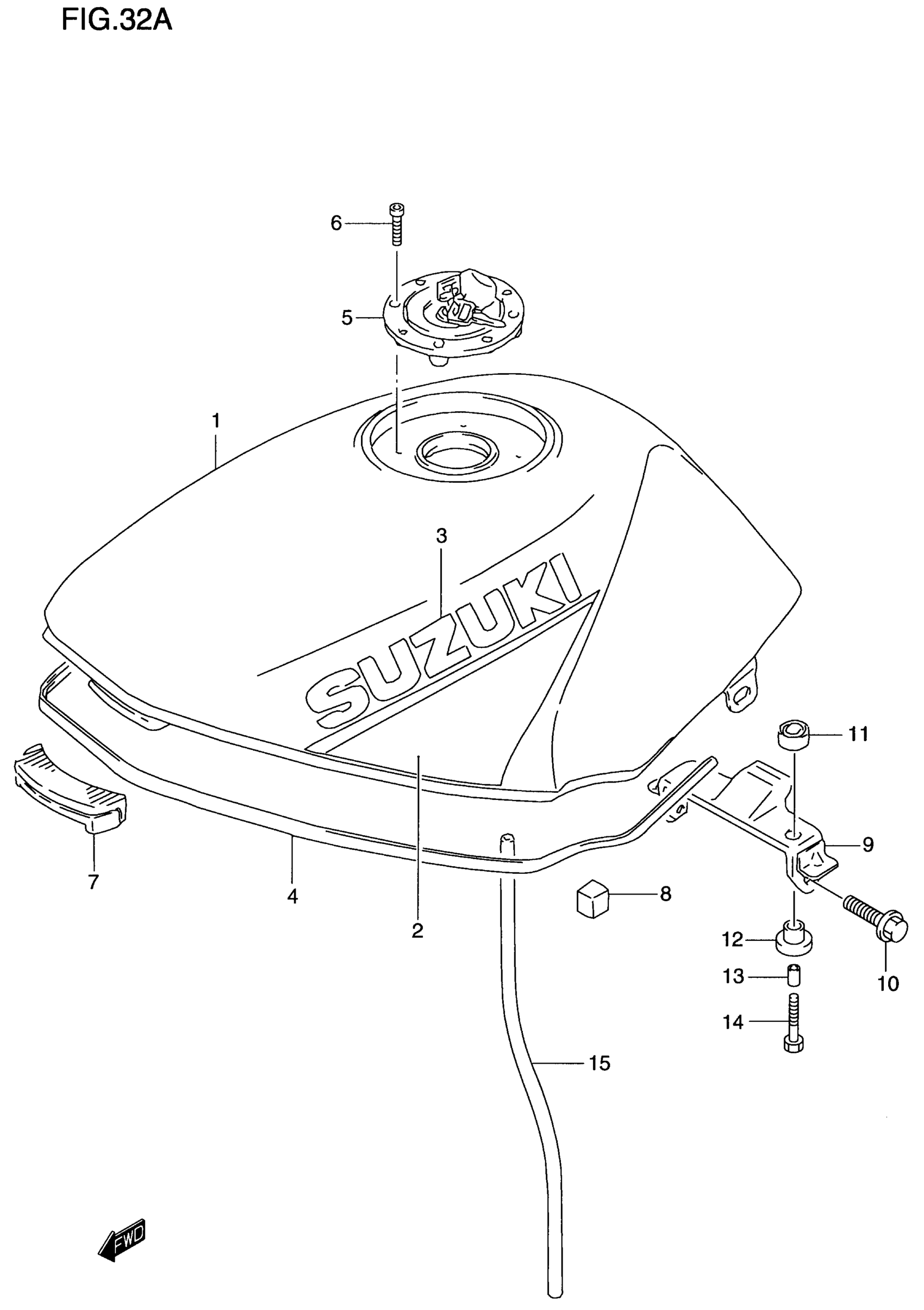

Suzuki GS500E (2000) FUEL TANK(MODEL W/X) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL W This part replaces 44100-01DA0-33J.

44100-01DN0-33J

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL W This part replaces 44100-01DA0-Z94.

44100-01DN0-Z94

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL X This part replaces 44100-01DA0-163.

44100-01DN0-163

Unavailable

1

TANK ASSY, FUEL (BLACK) | MODEL W E33

44100-01DC0-33J

Unavailable

1

TANK ASSY, FUEL (ORANGE) | MODEL W E33

44100-01DC0-Z94

Unavailable

1

TANK ASSY, FUEL (YELLOW) | MODEL X E33; Includes Item(s) 2 - 4

44100-01DC0-163

Unavailable

2

NO DESCRIPTION AVAILABLE | FOR 33J This part replaces 68110-01D50-J5Y.

68110-01D80-J5Y

Unavailable

2

NO DESCRIPTION AVAILABLE | FOR Z94,163 This part replaces 68110-01D50-E88.

68110-01D80-E88

Unavailable

3

EMBLEM | FOR 33J This part replaces 68111-12C00-13L.

68111-12C30-13L

Unavailable

3

EMBLEM | FOR Z94,163 This part replaces 68111-12C00-33J.

68111-12C30-33J

Unavailable

4

MOLDING

68241-04X50-00B

$27.30

5

CAP SET,FUEL TA This part replaces 44201-01832.

44201-01833

Unavailable

5

CAP SET, FUEL | E33

44201-01842

Unavailable

6

BOLT

09106-05017

$2.83

7

CUSHION, FRONT

44511-34A00

$11.08

8

CUSHION, SIDE

44545-48B10

$7.48

9

BRACKET, REAR This part replaces 44550-01D00.

44550-01D01

$48.38

10

BOLT This part replaces 01550-08403.

01550-0840A

$3.05

11

CUSHION, REAR UPPER

09320-14017

$2.35

12

CUSHION, REAR LOWER

09320-10038

$2.61

13

SPACER

09180-06271

$2.35

14

BOLT

09116-06172

$2.50

15

HOSE,WATER DRAI This part replaces 44423-01D00.

44423-01D01

$15.80
