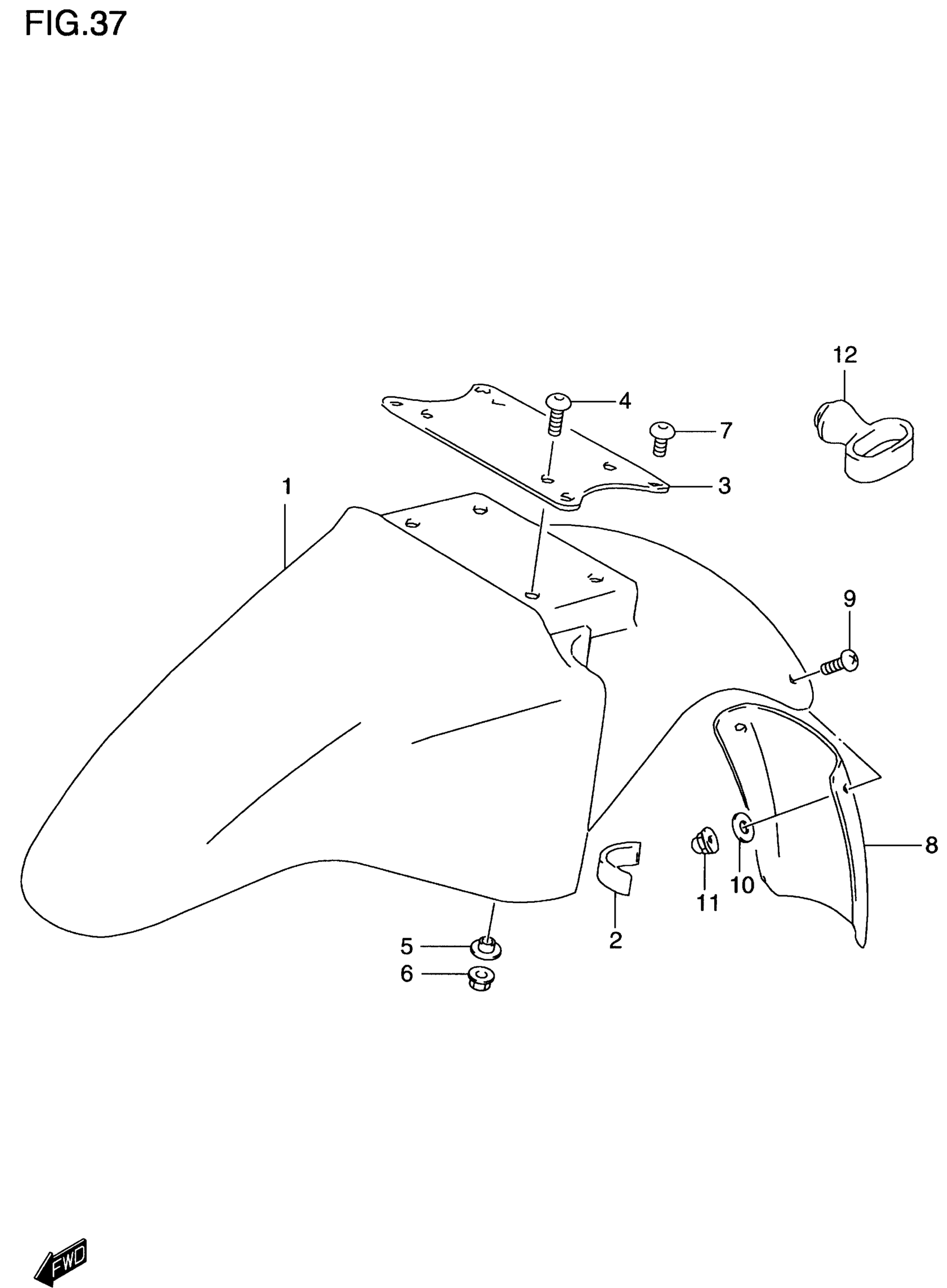

Suzuki GS500E (2000) FRONT FENDER Diagram

#

Description
Price

1

FENDER,FRONT | MODEL V This part replaces 53111-01D11-1LF.

53111-01D13-1LF

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL V/W This part replaces 53111-01D11-33J.

53111-01D13-33J

Unavailable

1

FENDER,FRONT | MODEL W This part replaces 53111-01D11-Z94.

53111-01D13-Z94

Unavailable

1

FENDER,FRONT | MODEL X This part replaces 53111-01D11-163.

53111-01D13

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL Y This part replaces 53111-01D12-33J.

53111-01D13-33J

Unavailable

2

CUSHION

53145-30B00

$3.62

3

BRACE, FRONT FENDER (SILVER)

53114-01D00

$29.25

4

SCREW | MODEL V/W/X

09139-05042

$2.90

4

SCREW | MODEL Y

09139-05032

$1.89

5

WASHER

09169-05010

$2.38

6

NUT This part replaces 09159-05026.

09159-05043

$2.22

7

SCREW

09139-06027

$2.16

8

MUD FLAP, FRONT FENDER

53311-01D01

$11.08

9

SCREW

02142-05127

$1.97

10

WASHER

09160-05501

$1.84

11

NUT This part replaces 08313-20053.

08313-2005A

$2.42

12

GUIDE, METER CABLE This part replaces 58621-21203.

58621-21204

$6.68
