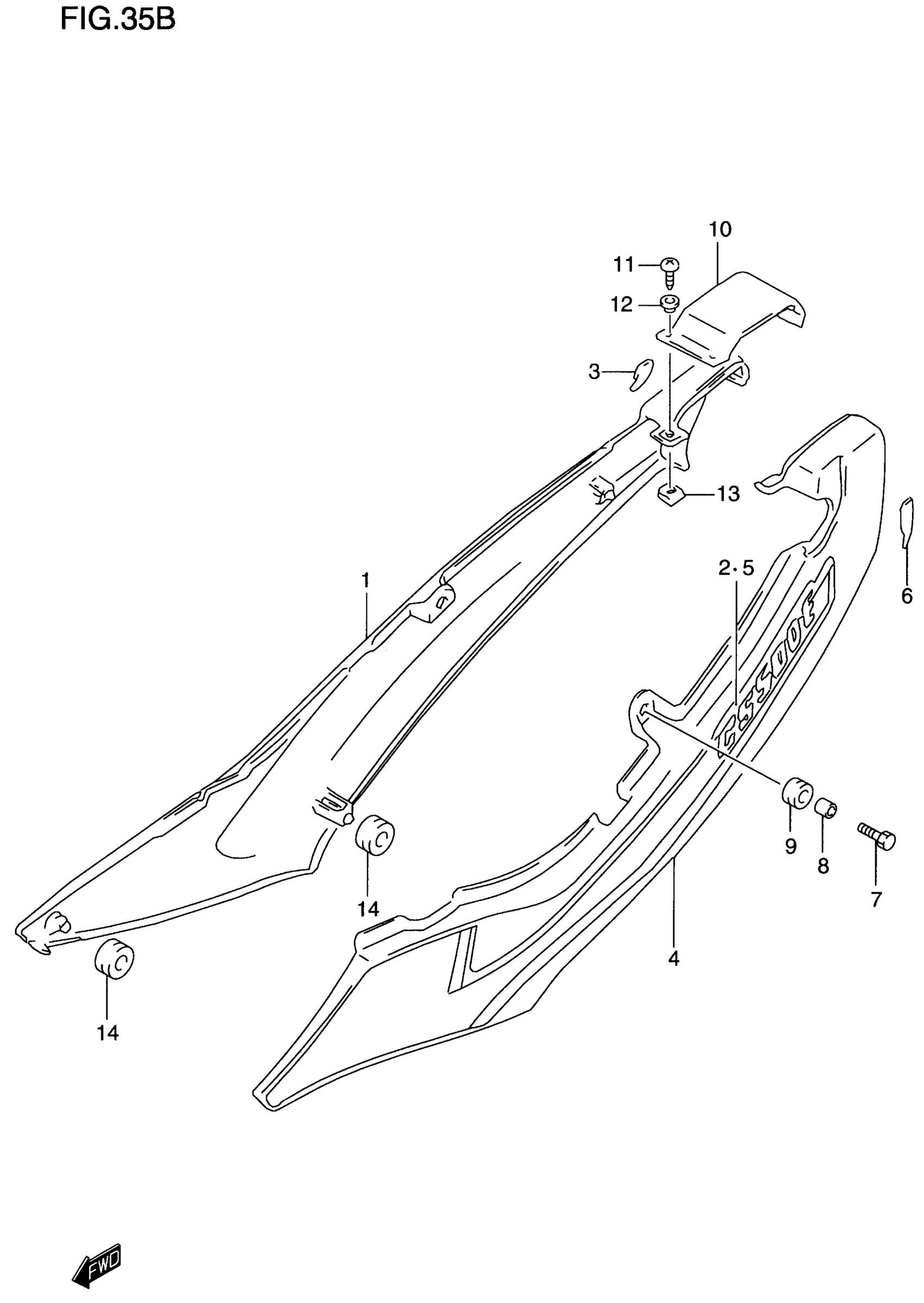

Suzuki GS500E (2000) FRAME COVER (MODEL X) Diagram

#

Description
Price

1

COVER, FRAME RH (BLACK) | Includes Item(s) 2

47110-01DG0-1NX

Unavailable

2

TAPE, RH

68135-01D20-L9U

Unavailable

3

PROTECTOR, RH

47119-01D00

Unavailable

4

COVER, FRAME LH (BLACK) | Includes Item(s) 5

47210-01DG0-1NX

Unavailable

5

TAPE, LH

68145-01D20-L9U

Unavailable

6

PROTECTOR, LH

47219-01D00

Unavailable

7

BOLT

09116-06010

$2.19

8

SPACER

09180-06263

$2.03

9

CUSHION

09320-09016

$1.97

10

COVER, CENTER (BLACK)

47215-01D00-33J

Unavailable

11

SCREW This part replaces 03242-05123.

03241-0512A

$1.49

12

WASHER

09161-05017

$3.18

13

NUT This part replaces 09148-05004.

09148-05013

$2.07

14

CUSHION

09320-08018

$3.04
