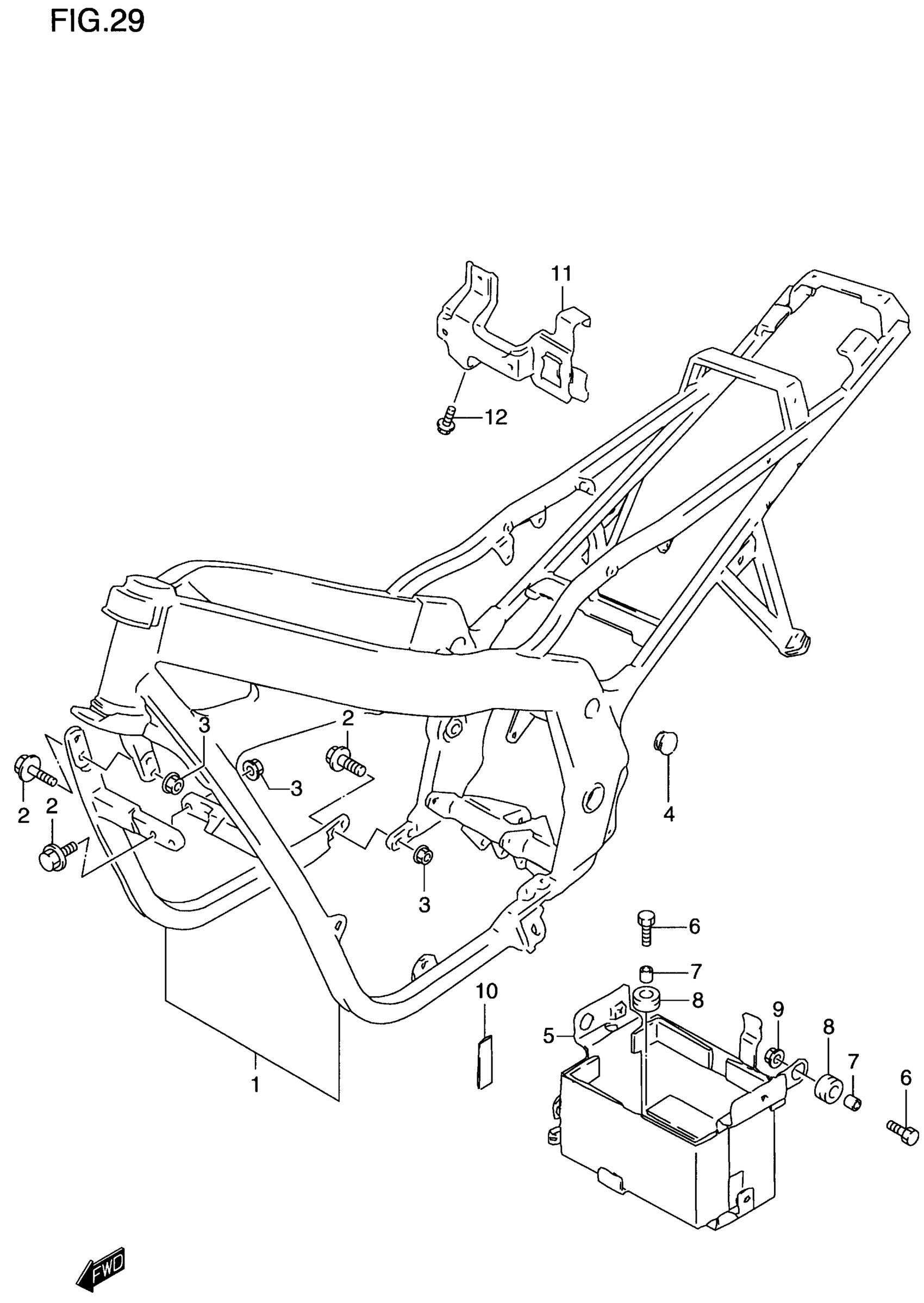

Suzuki GS500E (2000) FRAME Diagram

#

Description
Price

1

FRAME SET (SILVER) | MODEL V

41102-01871-13L

Unavailable

1

FRAME SET (SILVER) | MODEL W/X/Y; Includes Item(s) 2 - 3

41102-01852-13L

Unavailable

2

BOLT

01550-10357

Unavailable

3

NUT

08319-31107

$2.73

4

CAP, BODY

43585-01D00

$6.88

5

HOLDER, BATTERY

41540-01D31

Unavailable

6

BOLT

09116-06167

$2.19

7

SPACER (6.1X9X7.5)

09180-06038

$1.98

8

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.97

9

NUT This part replaces 08316-10063.

08316-1006B

$2.50

10

CUSHION (10X30X2) | E33

44894-24A00

$1.72

11

HOLDER, ELECTRIC PARTS

47410-01D00

Unavailable

12

BOLT This part replaces 01550-06163.

01550-0616A

$1.97
