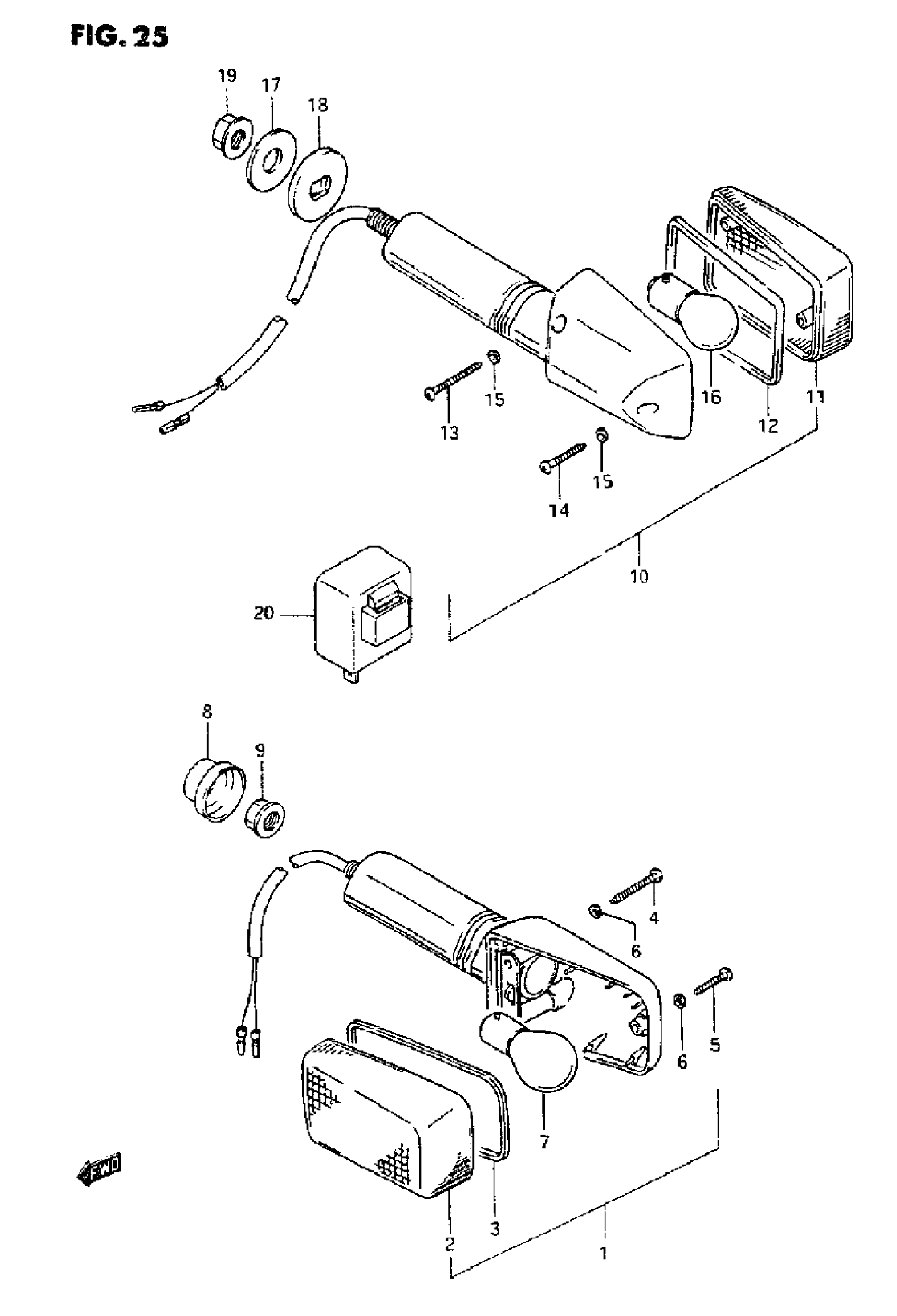

Suzuki GS500E (1995) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURNSIGNAL

35601-01D10

Unavailable

2

LENS

35612-17C20

$10.69

3

GASKET

35613-27A00

$4.52

4

TAPPING SCREW

35623-27A00

$1.65

5

TAPPING SCREW

35725-40511

$1.91

6

GASKET

35627-27A02

$1.58

7

BULB (12V, 21W)

09471-12045

$3.27

8

CAP, TURNSIGNAL LAMP | MODEL K/L/M/N/P/R

35698-01D00

Unavailable

9

NUT | MODEL K/L/M/N/P This part replaces 08316-26105.

08316-2010B

$3.43

9

NUT | MODEL R/S This part replaces 08316-20103.

08316-2010B

$3.43

9

NUT | MODEL T This part replaces 08316-10103.

08316-1010B

$2.66

10

LAMP ASSY, REAR TURNSIGNAL

35601-17C41

Unavailable

11

LENS

35612-17C20

$10.69

12

GASKET

35613-27A00

$4.52

13

TAPPING SCREW

35623-27A00

$1.65

14

TAPPING SCREW

35725-40511

$1.91

15

GASKET

35627-27A02

$1.58

16

BULB (12V, 21W)

09471-12045

$3.27

17

WASHER | MODEL K

09160-10094

$3.16

17

WASHER, UPPER, OUTER | MODEL L/M/N/P/R This part replaces 09160-10006.

09160-10501

$2.33

17

WASHER | MODEL S/T

09160-10501

$2.33

18

SPACER

35695-17C00

$4.03

19

NUT | MODEL K/L/M/N This part replaces 08316-26105.

08316-2010B

$3.43

19

NUT | MODEL P/R This part replaces 08310-12108.

08310-00107

$2.19

19

NUT | MODEL S/T This part replaces 08310-00103.

08310-0010A

$1.84

20

RELAY ASSY, TURNSIGNAL | MODEL K/L/M/N This part replaces 38610-31310.

38610-31X50

$80.15

20

RELAY, TURN SIGNAL | MODEL P This part replaces 38610-45D00.

38610-45D01

$78.73

20

RELAY ASSY, TURNSIGNAL | MODEL R/S/T

38610-45D01

$78.73
