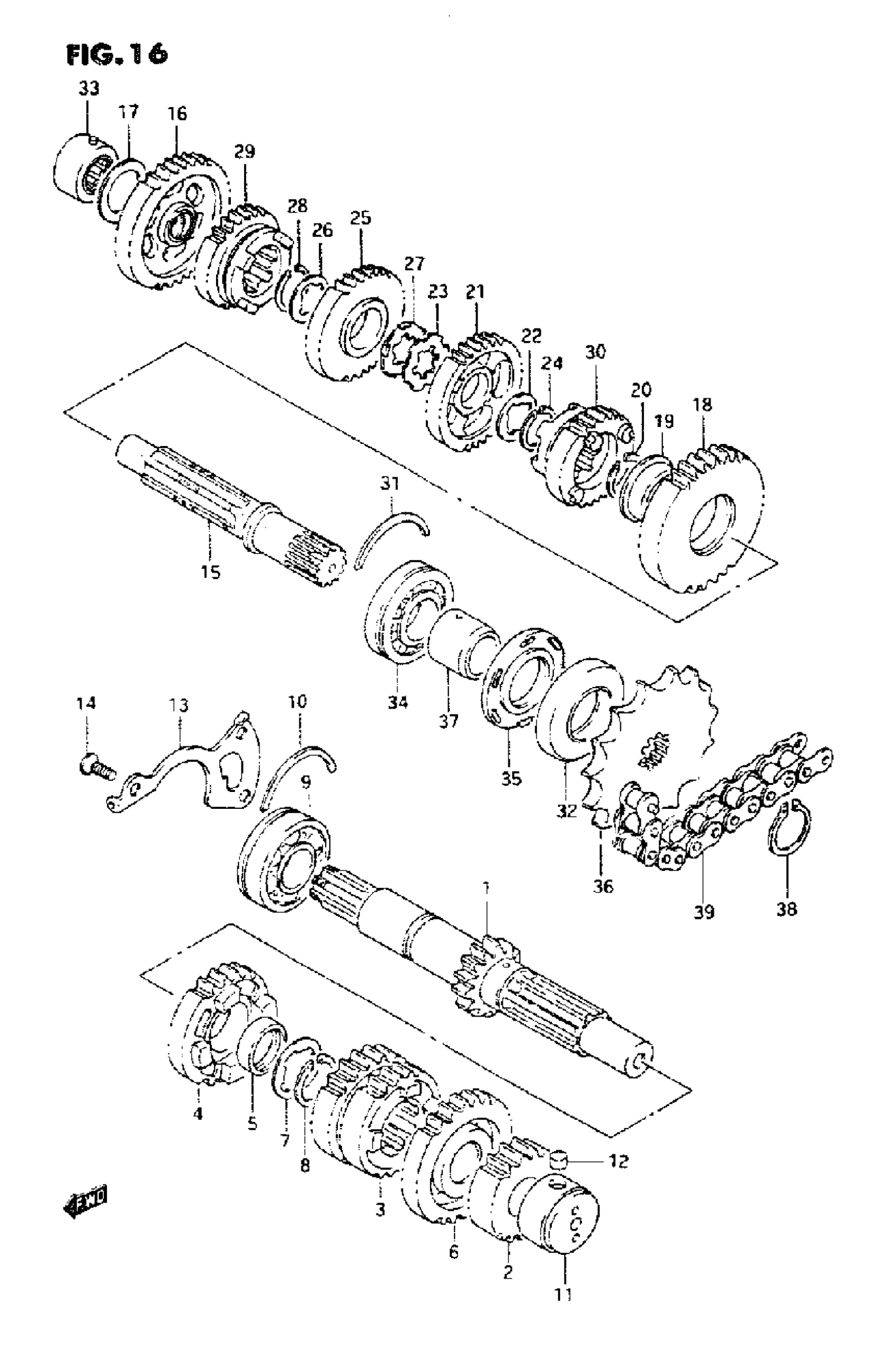

Suzuki GS500E (1995) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT (NT:13) This part replaces 24121-01D00.

24121-01D01

Unavailable

2

GEAR, 2ND DRIVE (NT:18)

24221-44001

Unavailable

3

GEAR,3RD & 4TH DRIVE (NT:21/2 This part replaces 24231-01D00.

24231-20F10

Unavailable

4

GEAR,5TH DRIVE (NT:26) This part replaces 24251-01D00.

24251-20F02

Unavailable

5

BUSH, 4TH DRIVE GEAR This part replaces 09300-25023.

24252-19F00

$17.12

6

GEAR, 6TH DRIVE (NT:27) This part replaces 24260-01D00.

24260-01D01

Unavailable

7

WASHER, 5TH DRIVE This part replaces 08211-25341.

09181-25167

$3.12

8

CIRCLIP

09380-25010

$2.91

9

BEARING, RH

09262-25105

$68.10

10

C RING | MODEL K/L/M/N/P This part replaces 09390-62006.

09390-62012

$7.31

10

C RING | MODEL R/S/T

09390-62012

$7.31

11

BEARING, LH (20X34X20) This part replaces 09263-20026.

09263-20025

Unavailable

12

PIN

04221-07129

$1.86

13

HOLDER, BEARING

24741-44102

Unavailable

14

SCREW This part replaces 02122-06163.

02122-0616A

$1.49

15

SHAFT, DRIVE

24131-01D00

Unavailable

16

GEAR, 1ST DRIVEN (NT:32) This part replaces 24310-44000.

24310-44001

Unavailable

17

WASHER

08211-20341

$2.80

18

GEAR, 2ND DRIVEN (NT:32) This part replaces 24321-44004.

24321-20F01

$125.38

19

BUSH, 2ND DRIVEN This part replaces 09301-25001.

24322-19F00

$23.78

20

CIRCLIP

09380-25010

$2.91

21

GEAR, 3RD DRIVEN (NT:29) This part replaces 24331-44002.

24331-44003

Unavailable

22

WASHER LOCK (25.1X31X1.0)

09167-25012

$3.70

23

WASHER,LOCK (25.1X41X1.5)

09167-25013

$3.30

24

CIRCLIP

09380-25010

$2.91

25

GEAR, 4TH DRIVEN (NT:27) This part replaces 24341-44002.

24341-44003

Unavailable

26

WASHER LOCK (25.1X31X1.0)

09167-25012

$3.70

27

LOCK WASHER

09169-25001

$2.70

28

CIRCLIP

09380-25010

$2.91

29

GEAR, 5TH DRIVEN (NT:25) This part replaces 24351-44001.

24351-20F02

Unavailable

30

GEAR, 6TH DRIVEN (NT:23) This part replaces 24361-44002.

24361-44010

Unavailable

31

C RING | MODEL K/L/M/N/P This part replaces 09390-62006.

09390-62012

$7.31

31

C RING | MODEL R/S/T

09390-62012

$7.31

32

OIL SEAL (32X62X7)

09283-32015

$15.74

33

BEARING, RH (20X34X17) This part replaces 09263-20028.

09263-20027

Unavailable

34

BEARING, LH

09262-25105

$68.10

35

OIL SEAL

09282-32002

$11.65

36

SPROCKET, ENG N | MODEL K/L/M/N/P This part replaces 27511-01D00.

27511-12C70

Unavailable

36

SPROCKET, ENGINE (NT:16) | MODEL R/S/T

27511-01D01

$39.07

37

SPACER (L:35.6) | MODEL K/L/M/N/P

27531-01D00

Unavailable

37

SPACER | MODEL R/S/T This part replaces 27531-01D10.

27531-01D11

$22.82

38

CIRCLIP

08331-31256

$1.49

39

CHAIN, DRIVE (DID520VS2X110LE | MODEL K/L/M/N/P/R This part replaces 27600-01D00-110.

27600-01C10-110

$170.18

39

CHAIN, DRIVE (DID520VS2X110LE) | MODEL S/T

27600-01C10-110

$170.18
