1995 Suzuki GS500E Rear Fender Diagram

← All diagrams

Find the part on the Rear Fender diagram for your 1995 Suzuki GS500E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

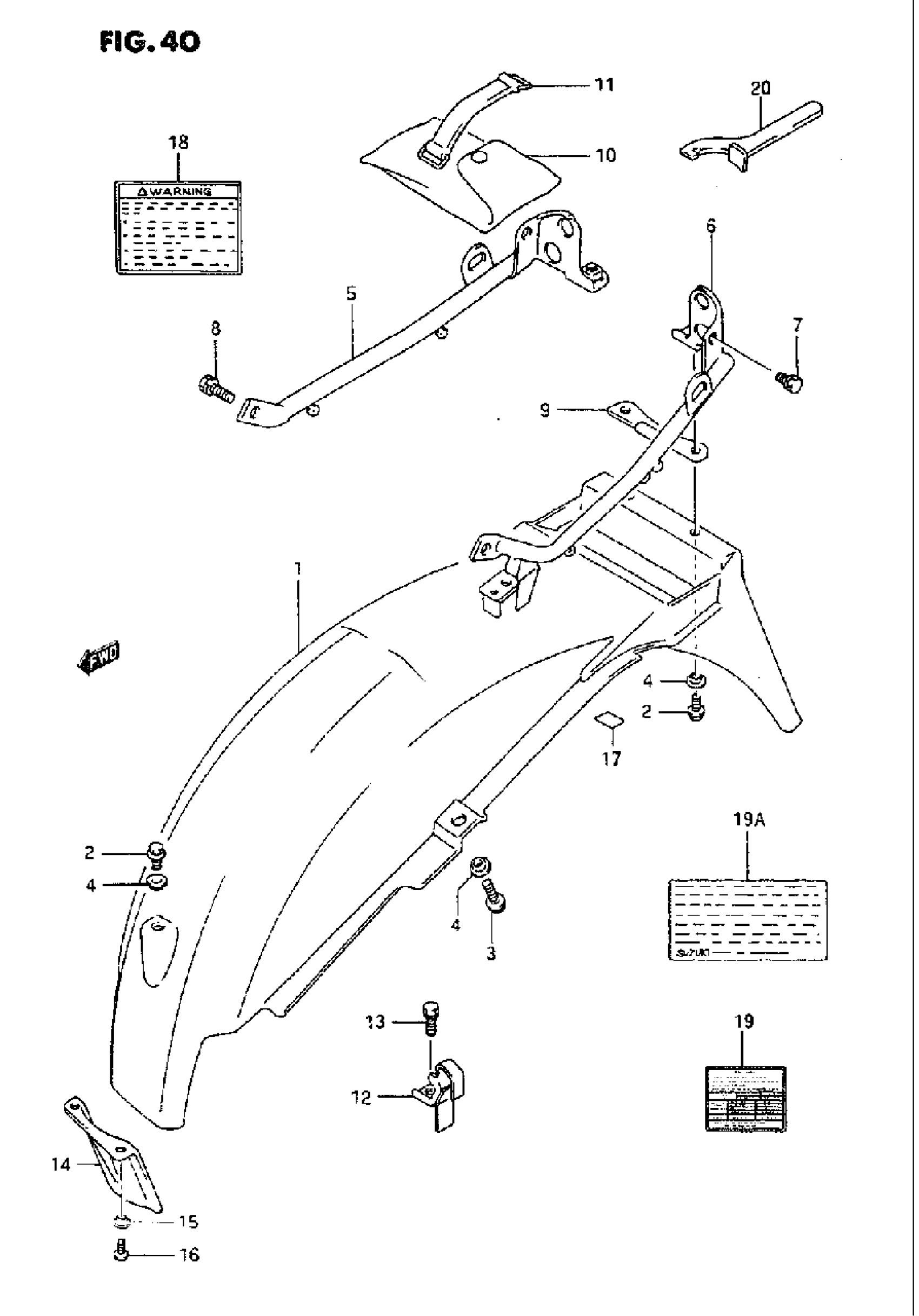

1995 Suzuki GS500E Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY, REAR FENDER This part replaces 63111-01D30.

63111-01D31-291

1
Out of stock

2

BOLT, CLAMP | MODEL K/L/M/N/P This part replaces 01517-06123.

01550-0612A

3
Out of stock

2

BOLT, CLAMP | MODEL R/S/T This part replaces 01550-06123.

01550-0612A

3
Out of stock

3

BOLT | MODEL K/L/M/N/P This part replaces 01517-06203.

01550-0620A

2
Out of stock

3

BOLT | MODEL R/S This part replaces 01550-06203.

01550-0620A

2
Out of stock

3

BOLT | MODEL T This part replaces 01550-06163.

01550-0616A

2
Out of stock

4

WASHER | MODEL K/L/M/N/P/S/T

09169-06037

5
Out of stock

4

WASHER | MODEL R

09169-06011

5
Out of stock

5

BRACE, REAR FENDER RH | MODEL K/L/M/N This part replaces 63210-01D00.

63210-01D10

1
Out of stock

5

BRACE, REAR FENDER RH | MODEL P/R/S/T

63210-01D10

1
Out of stock

6

BRACE, REAR FENDER LH | MODEL K/L/M/N

63220-01D00

1
Out of stock

6

BRACE, REAR FENDER LH | MODEL P/R/S/T

63220-01D10

1
Out of stock

7

BOLT, BRACE REAR | MODEL K/L/M/N

01570-08123

2
Out of stock

7

BOLT (8X12) | MODEL P This part replaces 01517-08126.

01550-0812A

2
Out of stock

7

BOLT (8X12) | MODEL R/S/T This part replaces 01550-08123.

01550-0812A

2
Out of stock

8

BOLT, BRACE | MODEL K/L/M/N This part replaces 01570-08203.

01570-0820A

2
Out of stock

8

BOLT | MODEL P This part replaces 01517-08206.

01550-0820A

2
Out of stock

8

BOLT | MODEL R/S/T This part replaces 01550-08203.

01550-0820A

2
Out of stock

9

PLATE, TOOL HOLDER

47425-01D00

1
Out of stock

10

TOOL ASSY | MODEL K/L/M/N/P/R This part replaces 09800-20017.

09800-21017

1
Out of stock

10

TOOL ASSY | MODEL S/T

09800-21017

1
Out of stock

11

BAND

09462-00046

1
Out of stock

12

HOLDER, HELMET | MODEL K

95720-01D00

2
Out of stock

12

HOLDER, HELMET | MODEL L/M/N/P/R/S/T

95720-01D00

1
Out of stock

13

BOLT | MODEL K This part replaces 01137-06205.

01570-0620A

2
Out of stock

13

BOLT | MODEL L/M/N/P This part replaces 01137-06205.

01570-0620A

1
Out of stock

13

BOLT | MODEL R/S/T This part replaces 01570-06203.

01570-0620A

1
Out of stock

14

MUD GUARD, REAR UNIT This part replaces 63411-42A00.

63411C42A00J000

1
Out of stock

15

WASHER | MODEL K/L/M/N/P/R This part replaces 09169-06025.

09169-06010

2
Out of stock

15

WASHER | MODEL S/T

09169-06010

2
Out of stock

16

SCREW | MODEL K/L/M/N/P

02142-06167

2
Out of stock

16

SCREW | MODEL R/S/T This part replaces 02142-06163.

02142-0616A

2
Out of stock

17

TAPE, REAR FENDER | MODEL M/N/P/R/S/T

63115-06C00

1
Out of stock

18

LABEL,GENERAL W | MODEL L/M/N/P/R/S/T This part replaces 68319-40C00.

68319-33E02

1
Out of stock

19

LABEL, TIRE AIR PRESSURE

68332-01D00

1
Out of stock

19

LABEL,MANUAL NOTICE | MODEL T This part replaces 68353-26E00.

68353-26E03

1
Out of stock

20

CLAMP, WRENCH | MODEL S/T

09822-00005

1
Out of stock

21

LABEL, VACUUM HOSE ROUTING | CALIFORNIA ONLY

68387-01D00

1
Out of stock

22

MANUAL, OWNER'S | MODEL K

99011-01D50-03A

1
Out of stock

22

MANUAL, OWNER'S | MODEL L

99011-01D51-03A

1
Out of stock

22

MANUAL, OWNER'S | MODEL M

99011-01D52-03A

1
Out of stock

22

MANUAL, OWNER'S | MODEL N

99011-01D53-03A

1
Out of stock

22

MANUAL, OWNER'S | MODEL P

99011-01D54-03A

1
Out of stock

22

MANUAL, OWNER'S | MODEL R

99011-01D55-03A

1
Out of stock

22

MANUAL, OWNER'S | MODEL S

99011-01D56-03A

1
Out of stock

22

MANUAL, OWNER'S | MODEL T

99011-01D57-03A

1
Out of stock
