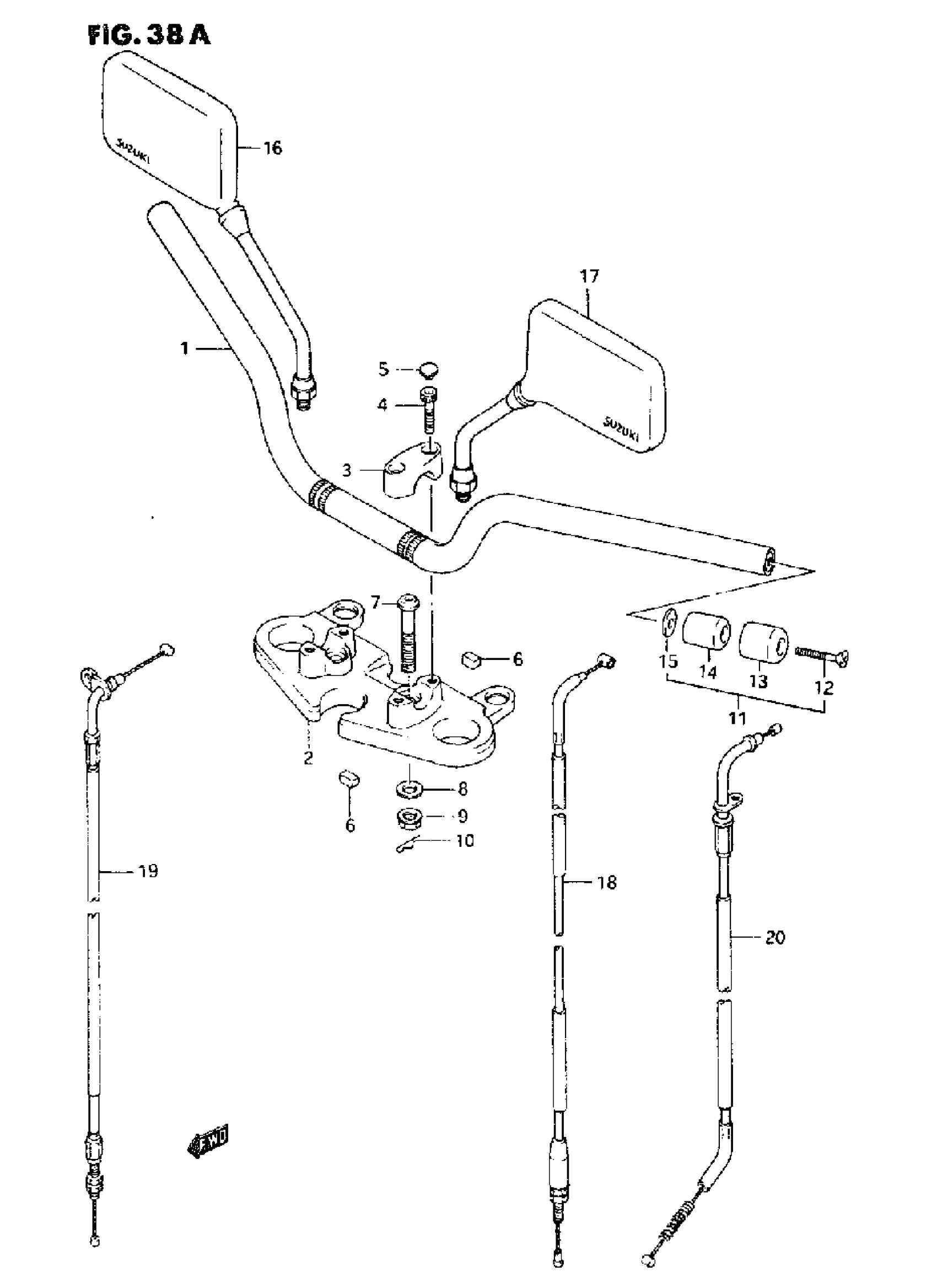

Suzuki GS500E (1995) HANDLEBAR (MODEL L/M/N/P/R/S/T) Diagram

#

Description
Price

1

HANDLEBAR

56110-01D51

Unavailable

2

HOLDER, HANDLEBAR LOWER (SILVER)

56221-01D50-0FP

Unavailable

3

HOLDER, UPPER (SILVER)

56211-34300-0FP

Unavailable

4

BOLT, STEERING DAMPER | MODEL L/M/N/P/R This part replaces 07130-08303.

07130-0830A

$1.74

4

BOLT, STEERING DAMPER | MODEL S/T This part replaces 09106-08013.

07130-0830A

$1.74

5

CAP

09250-06004

$1.49

6

CUSHION, HOLDER

56241-01D00

Unavailable

7

BOLT

09106-10055

Unavailable

8

WASHER | MODEL L/M/N/P/R This part replaces 09160-10084.

09160-10094

$3.16

8

WASHER | MODEL S/T

09160-10094

$3.16

9

NUT | MODEL L/M/N This part replaces 08319-31105.

08319-3110A

$2.73

9

NUT | MODEL P/R/S/T This part replaces 08319-31106.

08319-31107

$2.73

10

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

11

BALANCER SET, HANDLEBAR | MODEL L/M/N/P This part replaces 56200-20840.

56200-01831

Unavailable

11

BALANCER SET, HANDLEBAR | MODEL R This part replaces 56200-01830.

56200-01831

Unavailable

11

BALANCER SET, HANDLEBAR | MODEL S/T

56200-01831

Unavailable

12

SCREW | MODEL L/M/N/P This part replaces 02132-06605.

02122-0660B

$3.04

12

SCREW | MODEL R/S/T This part replaces 02122-06603.

02122-0660B

$3.04

13

CAP, BALANCER | ->56274-49310 This part replaces 56274-20C00.

56274-49310

Unavailable

13

CAP

56274-49310

Unavailable

14

BALANCER

56271-49310

Unavailable

15

SPACER | MODEL L/M/N/P/R This part replaces 56275-34400.

56275-34401

$4.02

15

SPACER | MODEL S/T

56275-34401

$4.02

16

MIRROR ASSY, REAR VIEW RH

56500-01D20

Unavailable

17

MIRROR ASSY, REAR VIEW LH

56600-01D20

Unavailable

18

CABLE ASSY,CLUT This part replaces 58200-01D11.

58200-01D12

Unavailable

19

CABLE ASSY, THROTTLE

58300-01D10

Unavailable

20

CABLE, STARTER This part replaces 58410-01D10.

58410-01D11

$37.13
