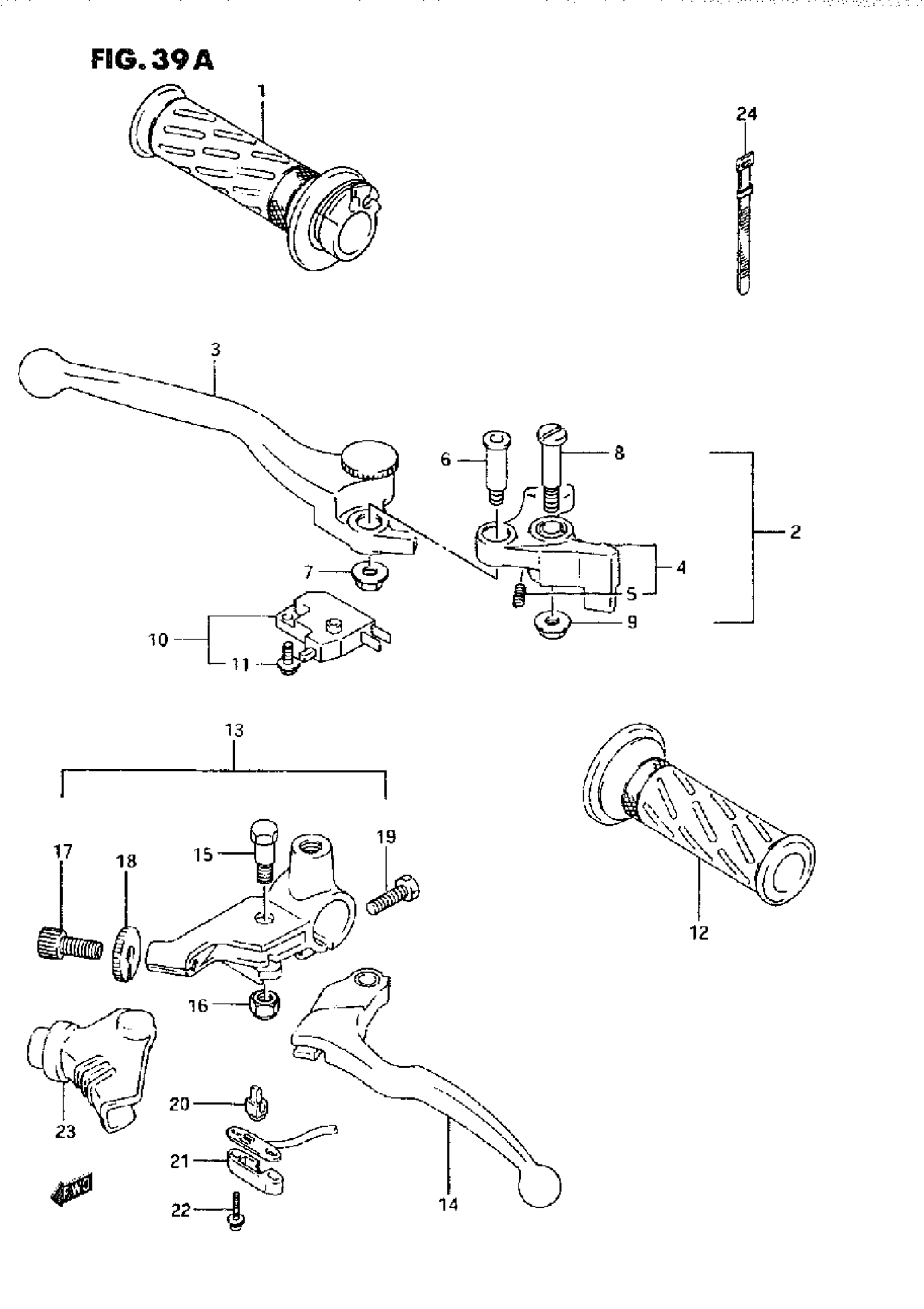

Suzuki GS500E (1995) HANDLE LEVER (MODEL L/M/N/P/R/S/T) Diagram

#

Description
Price

1

GRIP, THROTTLE | MODEL L/M/N

57110-05C01

Unavailable

1

GRIP, THROTTLE | MODEL P/R/S/T This part replaces 57110-22D01.

57110-22D03

$29.21

2

LEVER ASSY, BRAKE | MODEL L/M/N/P/R/S This part replaces 57300-40C01.

57300-40C10

$78.02

2

LEVER ASSY, BRAKE | MODEL I This part replaces 57300-32C01.

57300-32C10

$78.02

3

LEVER, ADJUST

57420-32C00

$28.92

4

KNOCKER | MODEL L/N/N/P/R/S This part replaces 57430-40C00.

57430-40C10

$59.25

4

KNOCKER | MODEL T This part replaces 57430-32C00.

57430-32C10

$60.37

5

SPRING

57438-32C00

$5.67

6

BOLT

57437-32C01

$8.60

7

NUT This part replaces 08319-31065.

08319-3106A

$2.03

8

BOLT, LEVER

57431-17C00

$7.11

9

NUT This part replaces 08316-16064.

08316-1006B

$2.50

10

SWITCH ASSY,FR BRAKE This part replaces 57460-17C00.

57460-14J02

$38.46

11

SCREW

57465-17C00

$2.19

12

GRIP, LH | MODEL L/M/N

57211-05C00

Unavailable

12

GRIP, LH (BLACK) | MODEL P/R/S/T This part replaces 57211-22D00.

57211-22D02-291

$14.55

13

LEVER ASSY, CLUTCH | MODEL L/M/N/P/R This part replaces 57500-01D10.

57500-01D11

Unavailable

13

LEVER ASSY, CLUTCH | MODEL S/T

57500-01D11

Unavailable

14

LEVER, CLUTCH

57620-01D00

Unavailable

15

BOLT

57531-14A00

$7.46

16

.NUT This part replaces 08319-21065.

08319-2106B

$2.32

17

ADJUSTER

57441-11010

$5.62

18

NUT

57442-11010

$2.79

19

BOLT, GEAR SHIFT LINK | MODEL L/M/N/P/R This part replaces 01107-06205.

01500-0620A

$1.78

19

..BOLT | MODEL S/T This part replaces 01547-06203.

01547-0620B

$2.45

20

HOLDER

57465-18601

$4.34

21

COVER

57481-33010

$5.84

22

SCREW

57484-49110

$1.98

23

COVER, CLUTCH LEVER

57661-33400

$8.12

24

CLAMP

09407-12402

$3.04
