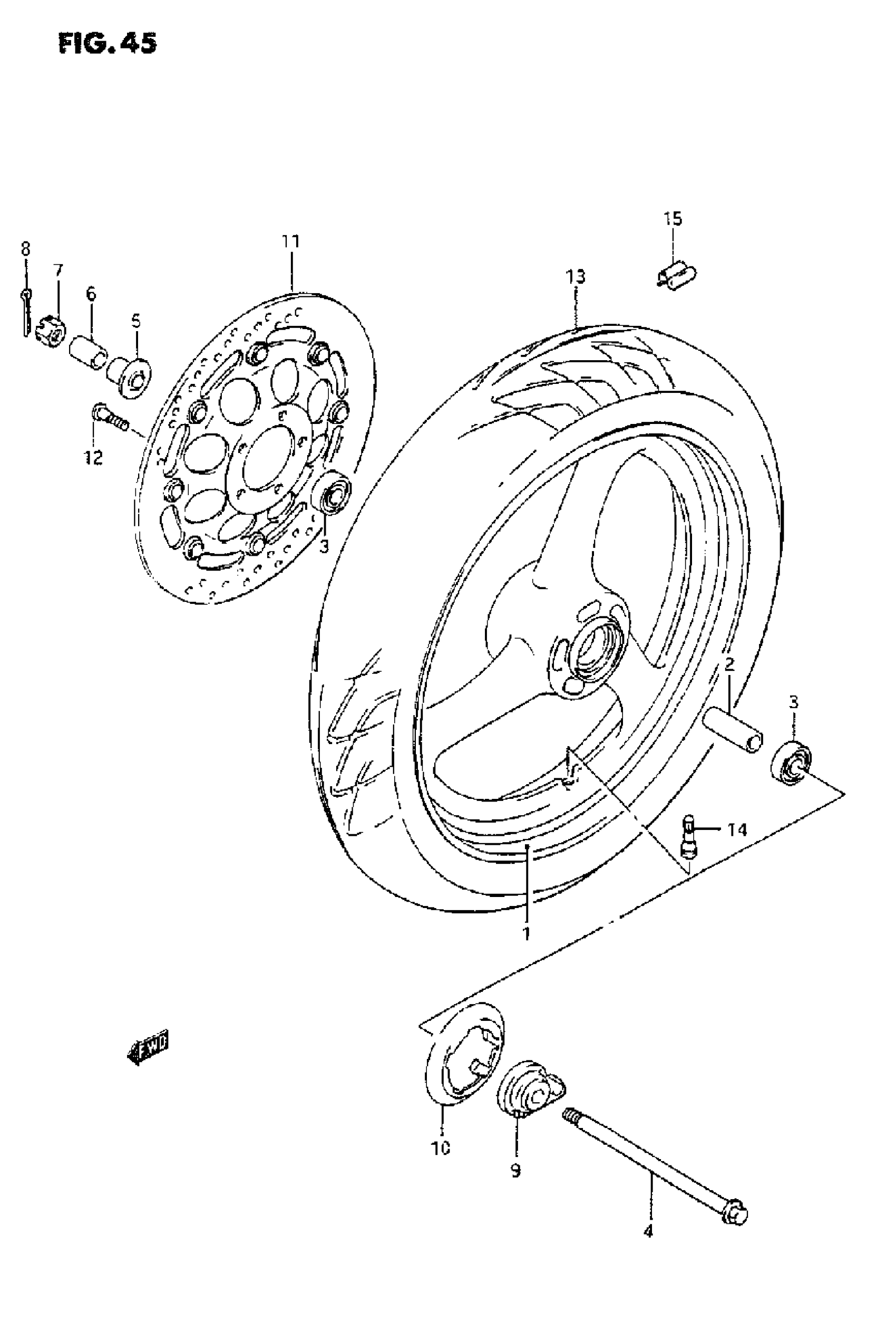

Suzuki GS500E (1995) FRONT WHEEL Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL K/L/M/N/P/R/S This part replaces 54111-34C00-28W.

54111-34C01-28W

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL T This part replaces 54111-34C00-17U.

54111-34C01-17U

Unavailable

2

SPACER

09180-15011

$8.18

3

BEARING This part replaces 08123-63027.

08123-6302B

$22.74

4

AXLE, FRONT

54711-01D00

$56.05

5

SPACER, FRONT AXLE RH

54740-33410

$19.15

6

SPACER, FRONT AXLE RH

54741-01D00

$15.42

7

NUT

09159-12027

$15.67

8

PIN This part replaces 04111-30308.

04111-3030A

$1.49

9

BOX ASSY, SPEEDOMETER GEAR

54600-01D01

Unavailable

10

COVER, FRONT HUB LH (BLACK) | MODEL K/L/M/N/P/R/S This part replaces 54871-38C00-30H.

54871C38C00J291

Unavailable

10

COVER, FRONT HUB LH (BLACK) | MODEL T This part replaces 54871-38C00-0SR.

54871C38C00J291

Unavailable

11

DISC, FRONT BRAKE | MODEL K This part replaces 59210-01D00.

59210-01D11

Unavailable

11

DISC, FRONT BRAKE (BLACK/GOLD) | MODEL L/M/N

59210-01D11

Unavailable

11

DISC, FRONT BRAKE (BLACK/BLACK) | MODEL P/R/S

59210-01D30

Unavailable

11

DISC, FRONT BRAKE (BLACK/BLACK) | MODEL T

59210-01D40

Unavailable

12

BOLT (8X33) This part replaces 09106-08082.

09106-08148

$4.80

13

TIRE, FRONT, 110/70-17 54H | BRIDGESTONE

55110-01D00

Unavailable

14

VALVE ASSY, WHEEL RIM | MODEL K/L/M ->43130-78030 This part replaces 43130-75150.

43130-78030

$9.25

14

VALVE ASSY (TR413)

43130-78030

$9.25

14

VALVE ASSY (TR412) | MODEL N/P/R/S/T

43130-24A00

$8.85

15

BALANCER, WHEEL (10G)

55411-00A00

$1.49

15

BALANCER, WHEEL NO.2 This part replaces 55412-00A01.

55412-17G00

$7.05

15

BALANCER, WHEEL (30G)

55413-00A01

Unavailable
