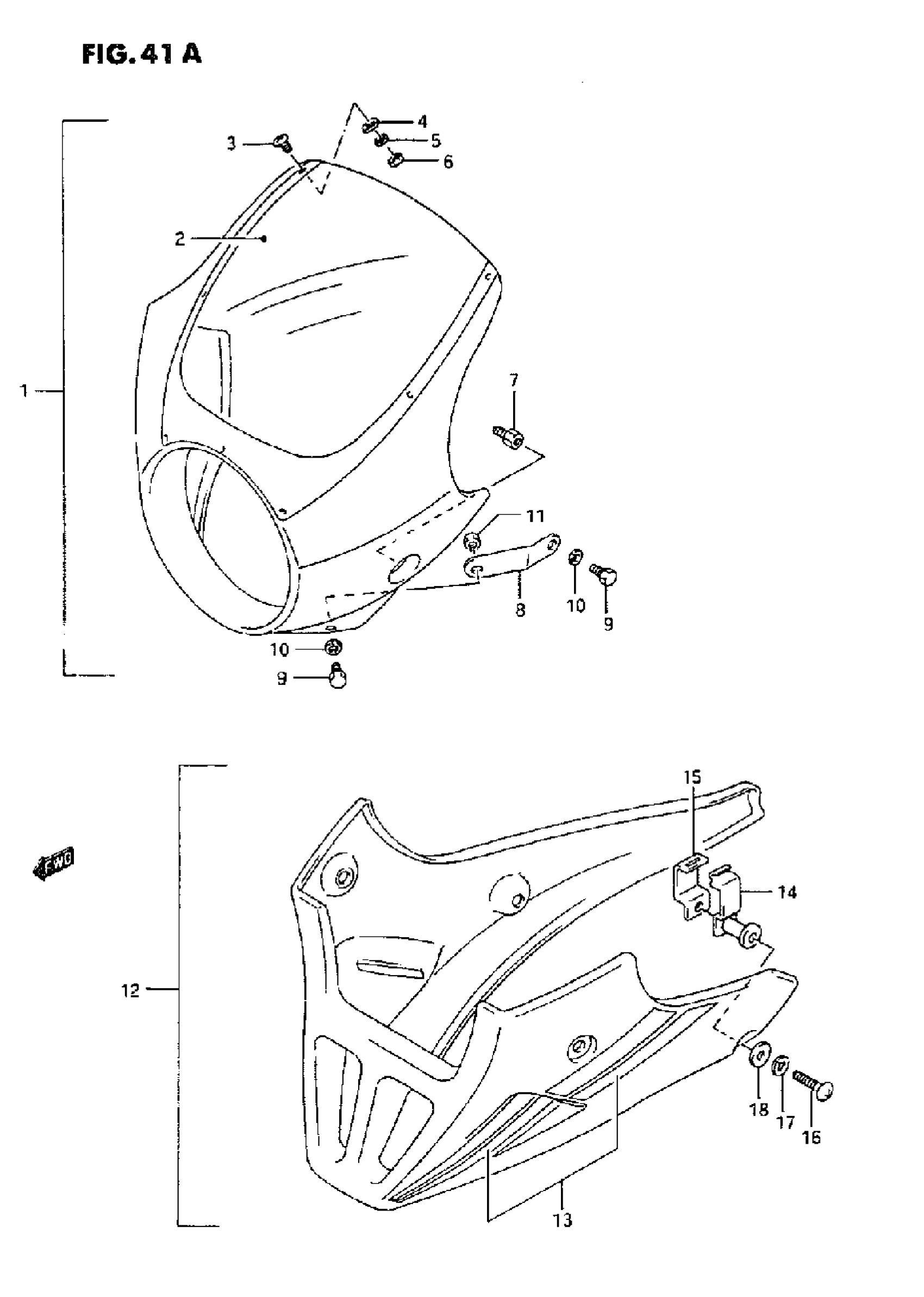

Suzuki GS500E (1995) COWLING (MODEL M/N/P/R/S/T OPTIONAL) Diagram

#

Description
Price

1

COWLING ASSY, UPPER (RED) | MODEL M/N/P

94402-01D60-28V

Unavailable

1

COWLING ASSY, UPPER (BLACK) | MODEL M/N/P/T

94402-01D60-33J

Unavailable

1

COWLING ASSY, UPPER (GREEN) | MODEL M

94402-01D60-0FL

Unavailable

1

COWLING ASSY, UPPER (BLUE) | MODEL M

94402-01D60-0ZK

Unavailable

1

COWLING ASSY, UPPER (PURPLE) | MODEL N/P

94402-01D60-1HU

Unavailable

1

COWLING ASSY, UPPER (PURPLE) | MODEL R/S

94402-01D60-1TU

Unavailable

1

COWLING ASSY, UPPER (RED) | MODEL R/T

94402-01D60-19A

Unavailable

1

COWLING ASSY, UPPER (GREEN) | MODEL S

94402-01D60-1ZV

Unavailable

2

SCREEN, WIND

94432-01D60

Unavailable

3

SCREW This part replaces 02142-04123.

02142-0412A

$1.50

4

WASHER This part replaces 08322-01043.

08322-0104A

$1.91

5

LOCK WASHER

08321-01045

Unavailable

6

NUT This part replaces 08310-00043.

08310-0004A

$2.30

7

BOLT, HEADLAMP

94741-01D60

Unavailable

8

BRACE, COWLING

94511-01D60

Unavailable

9

BOLT

01570-06167

$3.03

10

LOCK WASHER

08321-01067

$2.13

11

NUT This part replaces 08310-00063.

08310-0006A

$1.84

12

COWLING SET, UNDER (RED) | MODEL M This part replaces 94470-01860-28V.

94470-01820-28V

Unavailable

12

COWLING SET, UNDER (BLACK) | MODEL M

94470-01870-33J

Unavailable

12

COWLING SET, UNDER (GREEN) | MODEL M

94470-01880-0FL

Unavailable

12

COWLING SET, UNDER (BLUE) | MODEL M

94470-01890-0ZK

Unavailable

12

COWLING SET, UNDER (PURPLE) | MODEL N/P WITH OUT TAPE

94401-01810-1HU

Unavailable

12

COWLING SET, UNDER (RED) | MODEL N/P WITH OUT TAPE This part replaces 94401-01810-28V.

94470-01820-28V

Unavailable

12

COWLING SET, UNDER (BLACK) | MODEL N/P WITH OUT TAPE This part replaces 94401-01810-33J.

94470-01870-33J

Unavailable

12

COWLING SET, UNDER (PURPLE) | MODEL R/S

94401-01810-1TU

Unavailable

12

COWLING SET, UNDER (RED) | MODEL R/T

94401-01810-19A

Unavailable

12

COWLING SET, UNDER (GREEN) | MODEL S

94401-01810-1ZV

Unavailable

12

COWLING SET, UNDER (BLACK) | MODEL T This part replaces 94401-01810-33J.

94470-01870-33J

Unavailable

13

TAPE SET | MODEL M FOR 28V

68190-01D50-H05

Unavailable

13

TAPE SET | MODEL M FOR 33J

68190-01D50-3VV

Unavailable

13

TAPE SET | MODEL M FOR OFL, OZK

68190-01D50-H06

Unavailable

14

BRACKET, OUTER

94580-01D50

Unavailable

15

BRACKET, INNER

94582-01D50

Unavailable

16

SCREW | MODEL M/N/P/R/S

02142-06457

$2.72

16

SCREW | MODEL T

02112-36457

Unavailable

17

LOCK WASHER

08321-01067

$2.13

18

WASHER | MODEL M/N/P/R/S This part replaces 09160-06006.

09160-06084

$1.78

18

WASHER | MODEL T

09160-06084

$1.78
