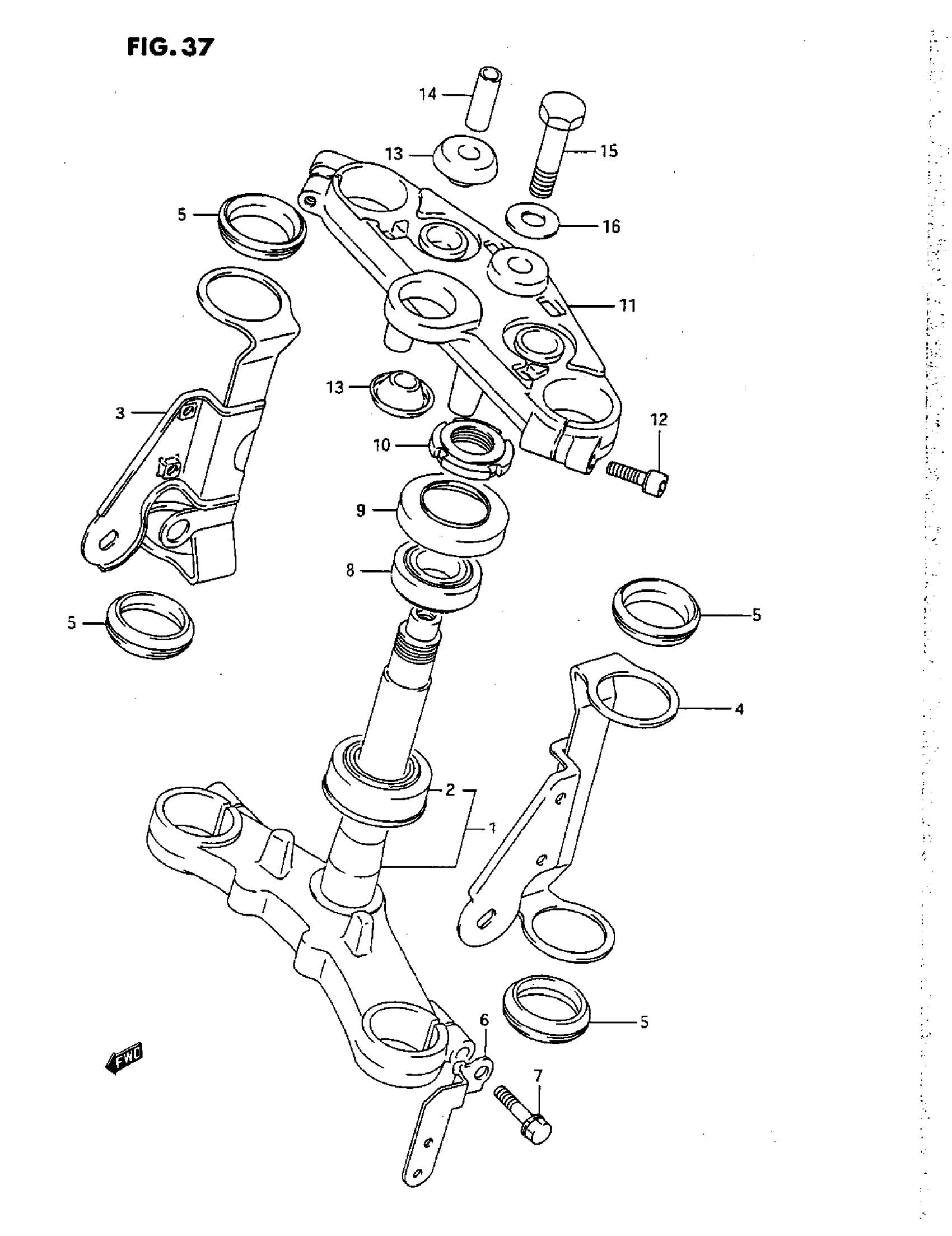

Suzuki GS500E (1993) STEERING STEM Diagram

#

Description
Price

1

STEM, STEERING | MODEL K/L/M/N This part replaces 51410-01D00.

51410-01D91

Unavailable

1

STEM, STEERING | MODEL P/R This part replaces 51410-01D90.

51410-01D91

Unavailable

2

RT 30X55X17 BEA This part replaces 09265-30009.

09265-30034

$57.05

3

BRACKET, HEADLAMP RH

51530-01D01

Unavailable

4

BRACKET, HEADLAMP LH This part replaces 51540-01D01.

51540-0BE00-ENM

Unavailable

5

CUSHION, BRACKET

51553-34300

$4.52

6

BRACKET, REFLECTOR RH

35956-01D10

Unavailable

6

BRACKET, REFLECTOR LH

35957-01D10

Unavailable

7

BOLT, STEERING STEM

51352-01D00

Unavailable

8

BEARING

09265-25008

Unavailable

9

SEAL,DUST | MODEL K/L/M This part replaces 51643-40502.

51643-40503

$6.15

9

SEAL, STEERING DUST | MODEL N/P This part replaces 51643-49001.

51643-49002

$12.32

9

DUST SEAL | MODEL R

51643-49002

$12.32

10

NUT

51631-28000

$17.37

11

HEAD, STEERING STEM

51311-01D00

Unavailable

12

BOLT, STEERING DAMPER This part replaces 07110-08305.

07130-0830A

$1.74

13

CUSHION,RUBBER, This part replaces 56240-42A00.

56240-42A01

$30.47

14

SPACER, STEM HEAD

56243-01D00

$9.42

15

BOLT

51353-05C00

Unavailable

16

WASHER | MODEL K/L

51356-22012

$6.80

16

WASHER | MODEL M/N/P/R This part replaces 51356-01D30.

51356-22012

$6.80
