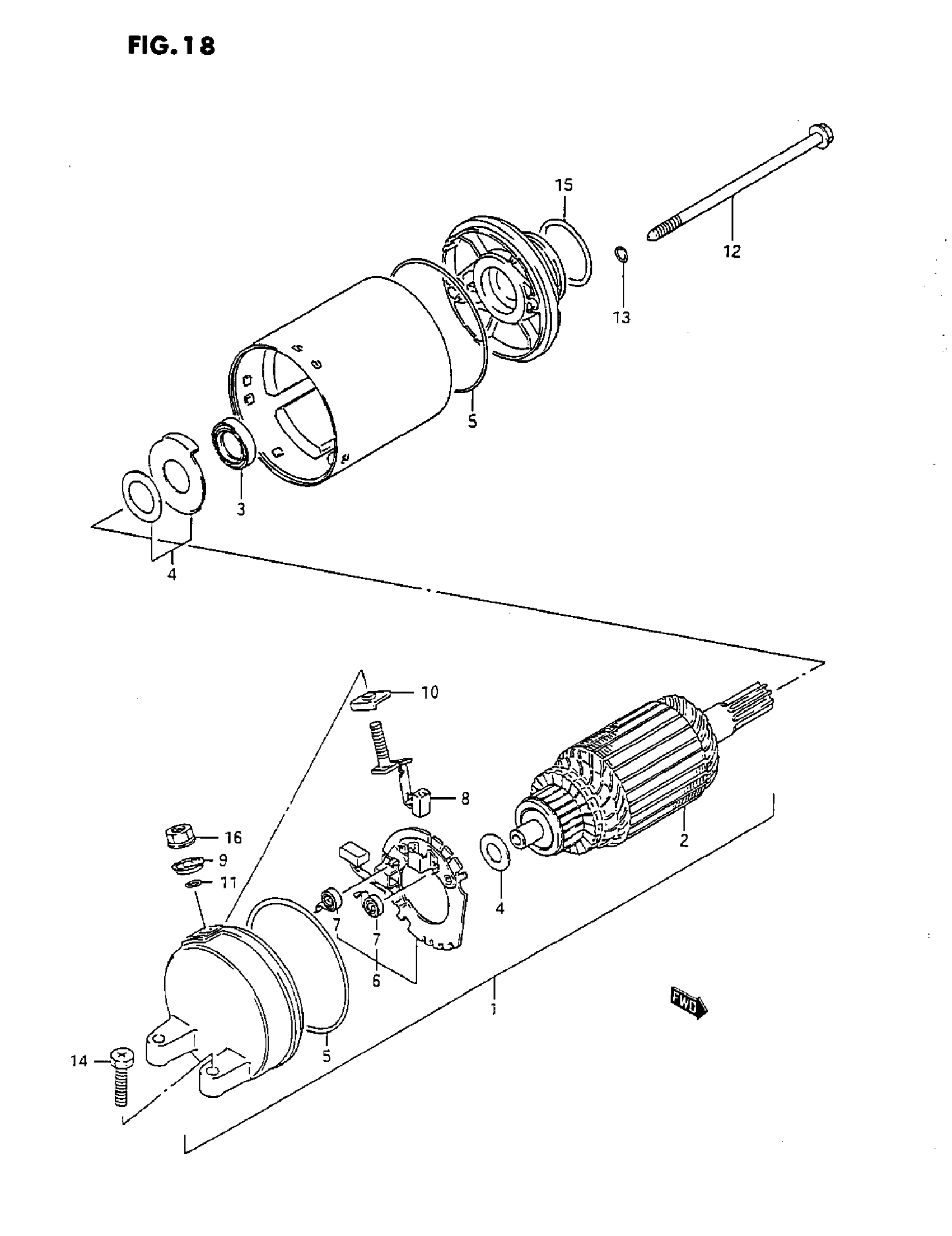

Suzuki GS500E (1993) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY, STARTING | MODEL K/L/M/N This part replaces 31100-27A01-H17.

31100-20C01

$679.68

1

MOTOR ASSY, STARTING | MODEL P/R This part replaces 31100-20C00.

31100-20C01

$679.68

2

ARMATURE

31310-27A01-H17

Unavailable

3

OIL SEAL

31153-43400

$24.20

4

SHIM SET

31170-43400

Unavailable

5

O-RING

31264-44110

$11.87

6

BRUSH HOLDER ASSY

31132-27A01

$73.55

7

SPRING

31135-65010

$4.52

8

BRUSH

31130-38300

$18.43

9

BUSHING (A)

31172-38300

$6.55

10

BUSHING (B)

31171-38300

$8.93

11

O-RING

31143-38300

$5.10

12

BOLT

31281-88C00

Unavailable

13

O-RING

31156-38300

$4.52

14

BOLT, STARTING MOTOR This part replaces 09128-06024.

09103-06212

$2.47

15

.O-RING (D:3,ID:24.5)

09280-24003

$1.55

16

NUT This part replaces 08361-35066.

08361-3506A

$1.80
