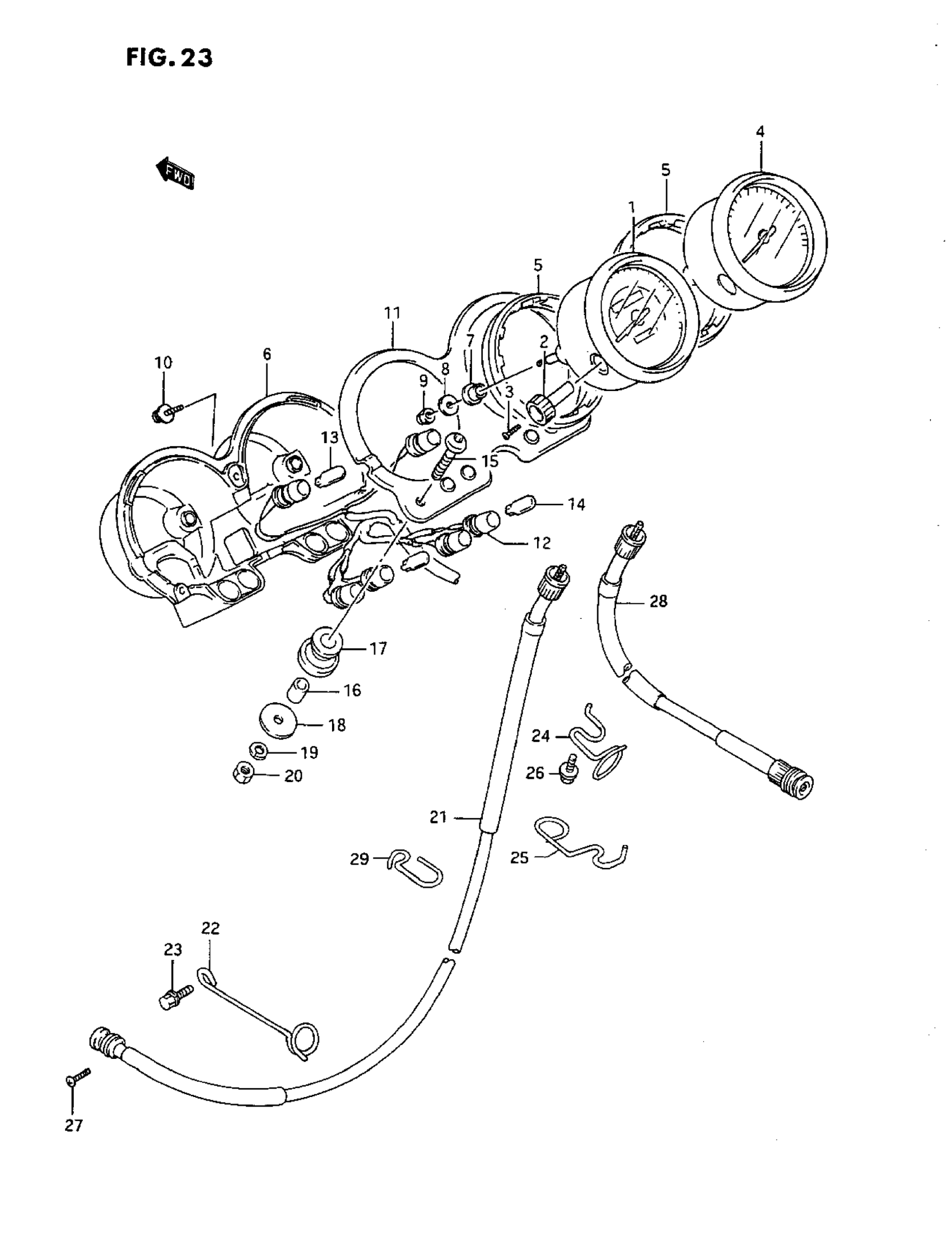

Suzuki GS500E (1993) SPEEDOMETER-TACHOMETER Diagram

#

Description
Price

1

SPEEDOMETER (MILE/KILO)

34110-01D30

Unavailable

2

KNOB This part replaces 34124-01D20.

34124-30B00

Unavailable

3

SCREW (2X6) This part replaces 34981-13A00.

09139-02003

$1.65

4

TACHOMETER

34210-01D20

Unavailable

5

DAMPER

34288-01D20

$7.25

6

COVER

34193-01D20

Unavailable

7

CUSHION

34189-01D20

$6.38

8

WASHER (5.5X16X1.2) This part replaces 34181-01D20.

09160-05037

$1.49

9

NUT | -F.NO.101195 This part replaces 08313-11055.

08313-1005B

$2.70

9

NUT | F.NO.101196- This part replaces 08313-11057.

08313-1005A

$1.93

9

NUT | MODEL P/R This part replaces 34185-01D20.

08313-1005A

$1.93

10

SCREW | -F.NO.101195 This part replaces 02112-74085.

02112-7408B

$2.34

10

SCREW | F.NO.101196- This part replaces 02112-74088.

02112-7408B

$2.34

10

SCREW | MODEL P/R This part replaces 34149-01D20.

02112-3408A

$2.38

11

BRACKET, METER

34950-01D30

Unavailable

12

SOCKET

34170-01D20

Unavailable

13

BULB (12V, 3.4W)

09471-12028

$1.99

14

BULB (12V, 1.7W)

09471-12077

$3.55

15

BOLT (6X30)

09107-06003

$3.03

16

SPACER (6.5X10X15.70) This part replaces 09180-06209.

09180-06294

$3.35

17

CUSHION

34956-31001

$4.37

18

WASHER This part replaces 09160-06030.

09160-06136

$1.84

19

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

20

NUT This part replaces 08310-12066.

08310-0006A

$1.84

21

NO DESCRIPTION AVAILABLE | MODEL K/L/M/N This part replaces 34910-01D00.

34910-01D03

$40.10

21

NO DESCRIPTION AVAILABLE | MODEL P/R This part replaces 34910-01D02.

34910-01D03

$40.10

22

GUIDE, CABLE NO.1

34938-45100

$6.57

23

BOLT | MODEL K/L/M/N/P This part replaces 01114-06168.

01550-06167

$2.30

23

BOLT | MODEL R This part replaces 01550-06163.

01550-0616A

$1.97

24

GUIDE, CABLE NO.2 | MODEL K/L/M/N This part replaces 34938-01D00.

34938-01D01

Unavailable

25

GUIDE, CABLE NO.2 | MODEL P/R

34938-01D01

Unavailable

26

BOLT, CLAMP | MODEL K/L/M/N/P This part replaces 01517-06125.

01550-0612A

$1.97

26

BOLT, CLAMP | MODEL R This part replaces 01550-06123.

01550-0612A

$1.97

27

SCREW | MODEL K/L/M/N/P

02112-05164

$2.63

27

.SCREW | MODEL R This part replaces 02112-05163.

02112-0516A

$1.49

28

CABLE,TACHOMETE | MODEL K/L/M/N This part replaces 34940-01D01.

34940-01D03

$66.23

28

CABLE,TACHOMETE | MODEL P/R This part replaces 34940-01D02.

34940-01D03

$66.23

29

GUIDE, CABLE NO.3 | MODEL P/R

34938-01D10

Unavailable
