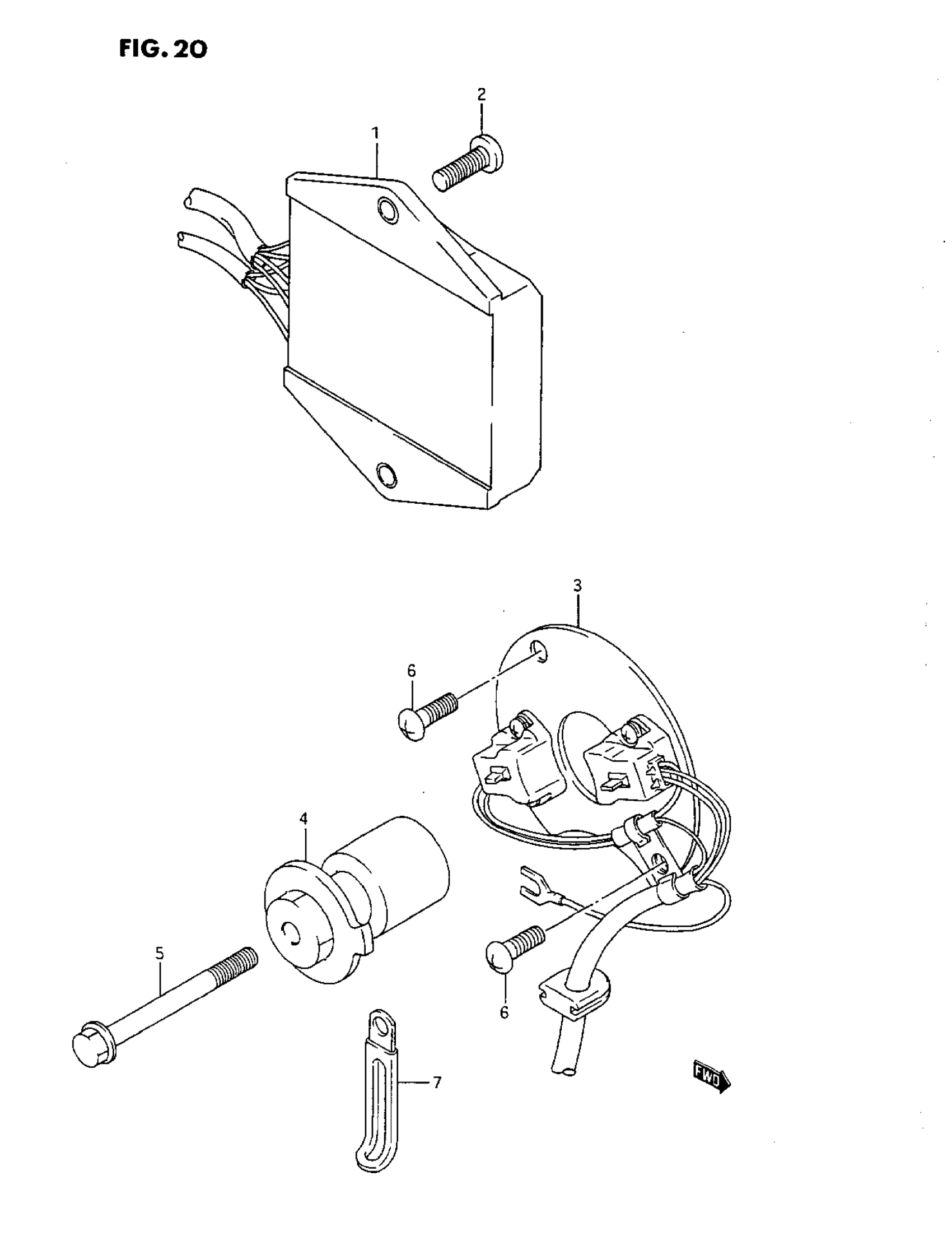

Suzuki GS500E (1993) SIGNAL GENERATOR Diagram

#

Description
Price

1

IGNITER This part replaces 32900-01D00.

32900-01D20

Unavailable

1

IGNITER | CALIFORNIA ONLY

32900-01D10

Unavailable

2

SCREW | MODEL K/L/M/N This part replaces 02152-06165.

02112-0616A

$1.46

2

SCREW | MODEL P/R This part replaces 02112-16163.

02112-1616A

$2.50

3

SIGNAL GENERATOR ASSY

33110-44420

Unavailable

4

ROTOR, SIGNAL

33120-01D00

Unavailable

4

ROTOR, SIGNAL | CALIFORNIA ONLY

33120-01D10

Unavailable

5

BOLT (6X60) This part replaces 09103-06121.

09103-06064

$2.21

6

SCREW | MODEL K/L/M/N

09125-05024

$1.87

6

SCREW, THROTTLE | MODEL P/R This part replaces 02112-05103.

02112-0510A

$1.46

7

CLAMP (L:60) This part replaces 09404-06422.

09404-06429

$1.88
