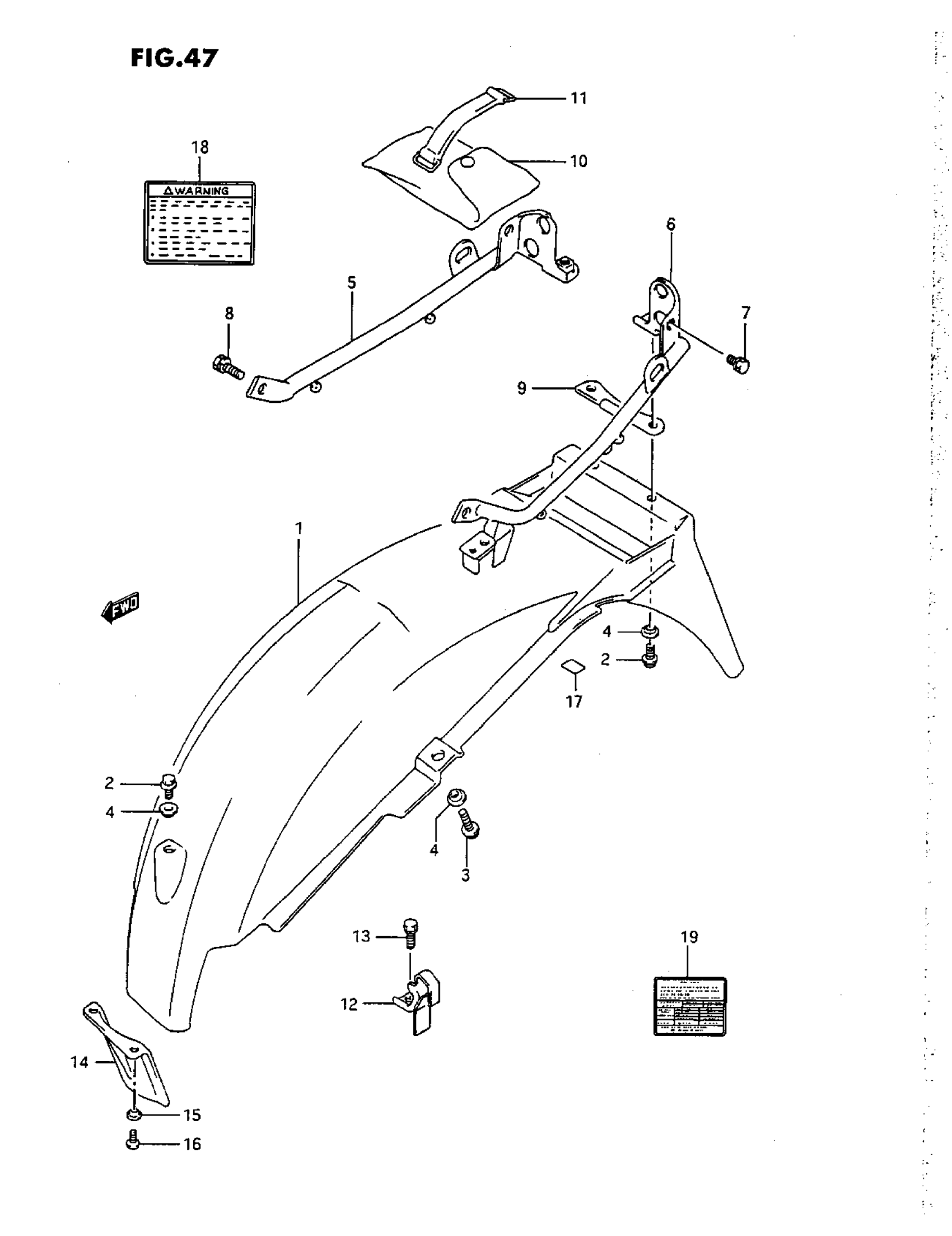

Suzuki GS500E (1993) REAR FENDER Diagram

#

Description
Price

1

BODY, REAR FENDER This part replaces 63111-01D30.

63111-01D31-291

Unavailable

2

BOLT, CLAMP | MODEL K/L/M/N/P This part replaces 01517-06123.

01550-0612A

$1.97

2

BOLT, CLAMP | MODEL R This part replaces 01550-06123.

01550-0612A

$1.97

3

BOLT | MODEL K/L/M/N/P This part replaces 01517-06203.

01550-0620A

$1.97

3

BOLT | MODEL R This part replaces 01550-06203.

01550-0620A

$1.97

4

WASHER | MODEL K/L/M/N/P

09169-06037

$2.45

4

WASHER | MODEL R

09169-06011

$3.45

5

BRACE, REAR FENDER RH | MODEL K/L/M/N -63210-01D10 This part replaces 63210-01D00.

63210-01D10

Unavailable

5

BRACE, REAR FENDER RH | MODEL P/R

63210-01D10

Unavailable

6

BRACE, REAR FENDER LH | MODEL K/L/M/N -63220-01D10

63220-01D00

Unavailable

6

BRACE, REAR FENDER LH | MODEL P/R

63220-01D10

Unavailable

7

BOLT, BRACE REAR | MODEL K/L/M/N

01137-08123

Unavailable

7

BOLT (8X12) | MODEL P This part replaces 01517-08126.

01550-0812A

$2.32

7

BOLT (8X12) | MODEL R This part replaces 01550-08123.

01550-0812A

$2.32

8

BOLT, BRACE | MODEL K/L/M/N This part replaces 01137-08203.

01570-0820A

$3.15

8

BOLT | MODEL P This part replaces 01517-08206.

01550-0820A

$2.23

8

BOLT | MODEL R This part replaces 01550-08203.

01550-0820A

$2.23

9

PLATE, TOOL HOLDER

47425-01D00

$8.18

10

TOOL ASSY This part replaces 09800-20017.

09800-21017

$76.62

11

BAND

09462-00046

$3.70

12

HOLDER, HELMET | MODEL K

95720-01D00

Unavailable

12

HOLDER, HELMET | MODEL L/M/N/P/R

95720-01D00

Unavailable

13

BOLT | MODEL K This part replaces 01137-06205.

01570-0620A

$2.19

13

BOLT | MODEL L/M/N/P This part replaces 01137-06205.

01570-0620A

$2.19

13

BOLT | MODEL R This part replaces 01570-06203.

01570-0620A

$2.19

14

MUD GUARD, REAR UNIT This part replaces 63411-42A00.

63411C42A00J000

Unavailable

15

WASHER This part replaces 09169-06025.

09169-06010

$2.60

16

SCREW | MODEL K/L/M/N/P

02142-06167

$1.49

16

SCREW | MODEL R This part replaces 02142-06163.

02142-0616A

$1.49

17

TAPE, REAR FENDER | MODEL M/N/P/R

63115-06C00

Unavailable

18

LABEL,GENERAL W | MODEL L/M/N/P/R This part replaces 68319-40C00.

68319-33E02

$7.25

19

LABEL, TIRE AIR PRESSURE

68332-01D00

Unavailable

20

LABEL, VACUUM HOSE ROUTING | CALIFORNIA ONLY WITH OUT DRAWING

68387-01D00

Unavailable
